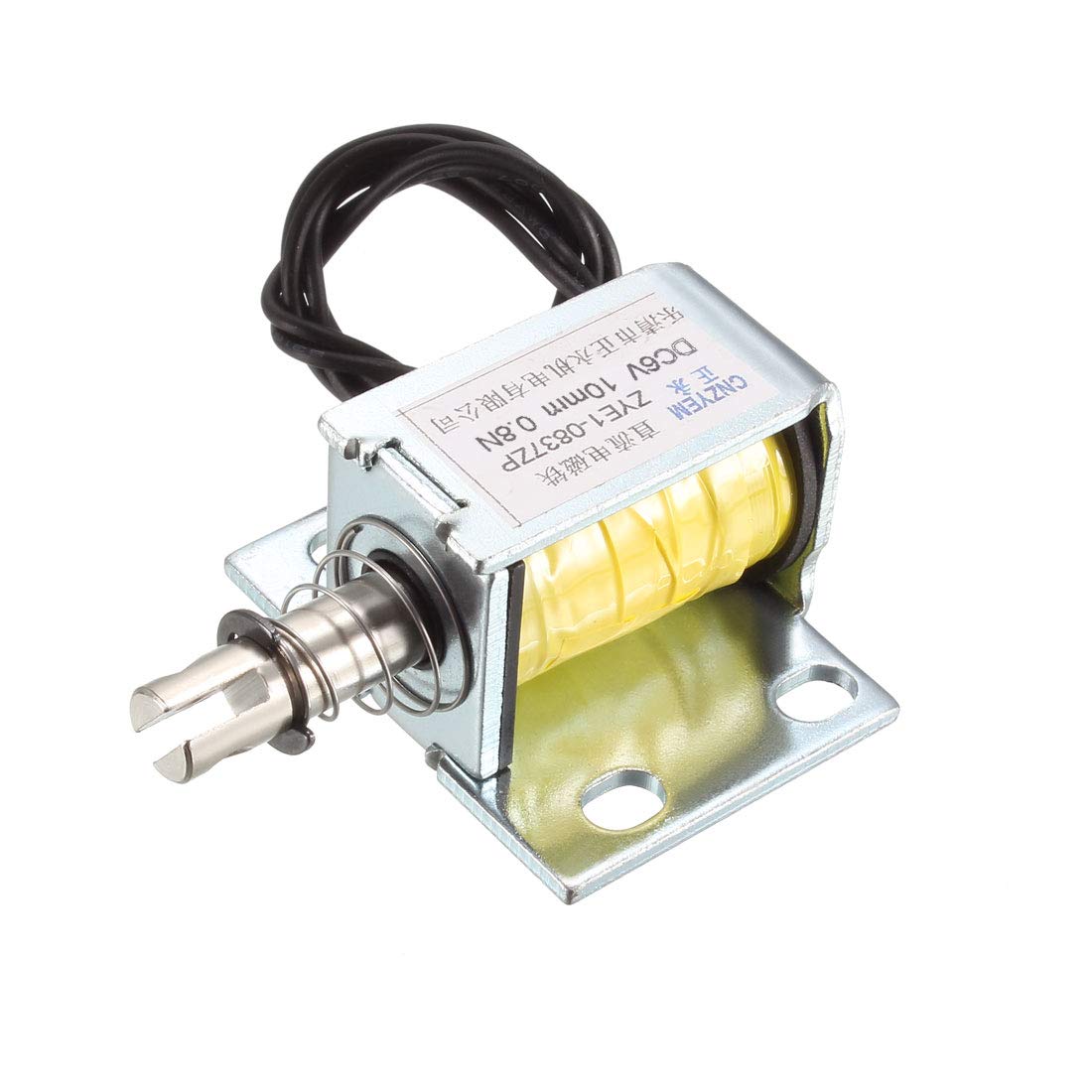

DC Push Pull Type Solenoid Electromagnet, DC6V 18W 0.8N 10mm, Open Frame Type, Linear Motion

Key Features

• Voltage DC 6V; Current 3A; Power 18W; Stroke 10mm; Force 0.8N
• 【GOOD DESIGN】- Push pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet. Less power consumption, low temperature rise, no magnetism when power off.
• 【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity. It can be installed flexibly and quickly, which is very convenient.
• 【NOTED】- As an actuating element of equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 129 seconds.
• 【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.

Product Description

Description

• Push Pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.- Support DC 6V voltage, linear motion, is easy to install.- DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.Specification:- Voltage & Current : DC6V 3A- Power : 18W- Action Type: Push Pull- Stroke & Force : 10mm, 0.8N- Wire Length: 21cm / 8.27inch- Plunger Bar Dia: 8mm / 0.31inch- Body Size : 37mm x 45mm x 27mm / 1.46inch x 1.77inch x 1.06inch (L*W*H)- Mounting Hole Size: 7mm x 5mm / 0.28inch x 0.2inch (L*W)- Mounting Hole Distance: 35m x 20mm / 1.38inch x 0.79inch (L*W)-

Package Content

1 x DC Push Pull Type Solenoid Electromagnet

Note

• Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.- Please take the electromagnet put down gently when you install it. This product is small in size, please pay attention to in the process of using electricity.
