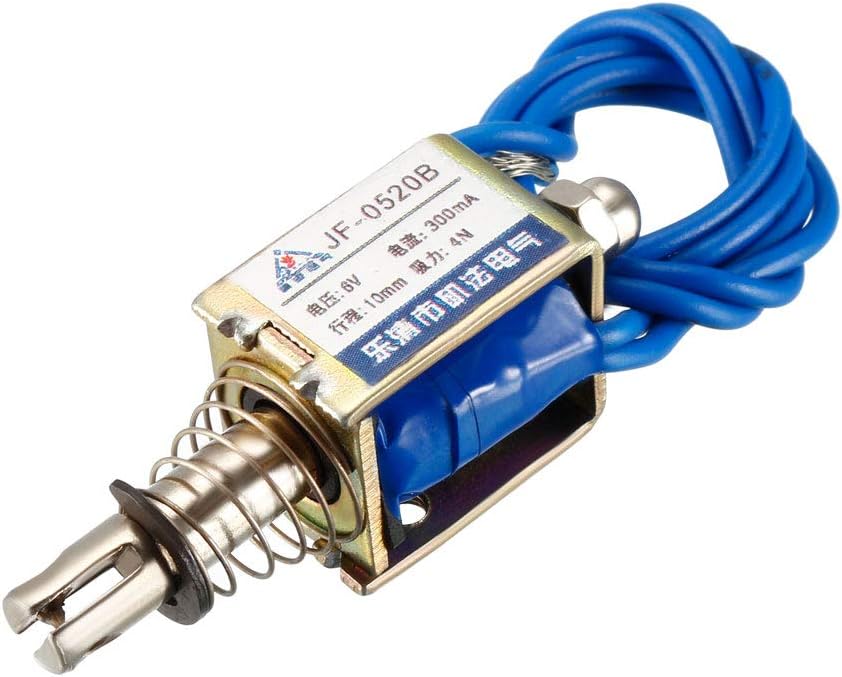

DC 6V 4N 10mm Push Pull Type Solenoid Electromagnet, Open Frame Type, Linear Motion

Key Features

• Voltage & Current DC6V 300mA; Stroke & Force 10mm, 4N
• Action Form Push Pull; Package Content 1 x DC Solenoid Electromagnet
• Support DC 6V voltage, linear motion, is easy to install.
• Push Pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.
• DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.

Product Description

Description

Push Pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.Support DC 6V voltage, linear motion, is easy to install.DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.Specification:Voltage & Current: DC6V 300mAStroke & Force: 10mm, 4NAction Type: Push PullPlunger Bar Dia: 6mm / 0.24inchBody Size: 20 x 16.5 x 13mm / 0.79 x 0.65 x 0.51 inch (L*W*H)

Package Content

1 x DC Solenoid Electromagnet

Note

Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.Please take the electromagnet put down gently when you install it. This product is small in size, please pay attention to in the process of using electricity.
