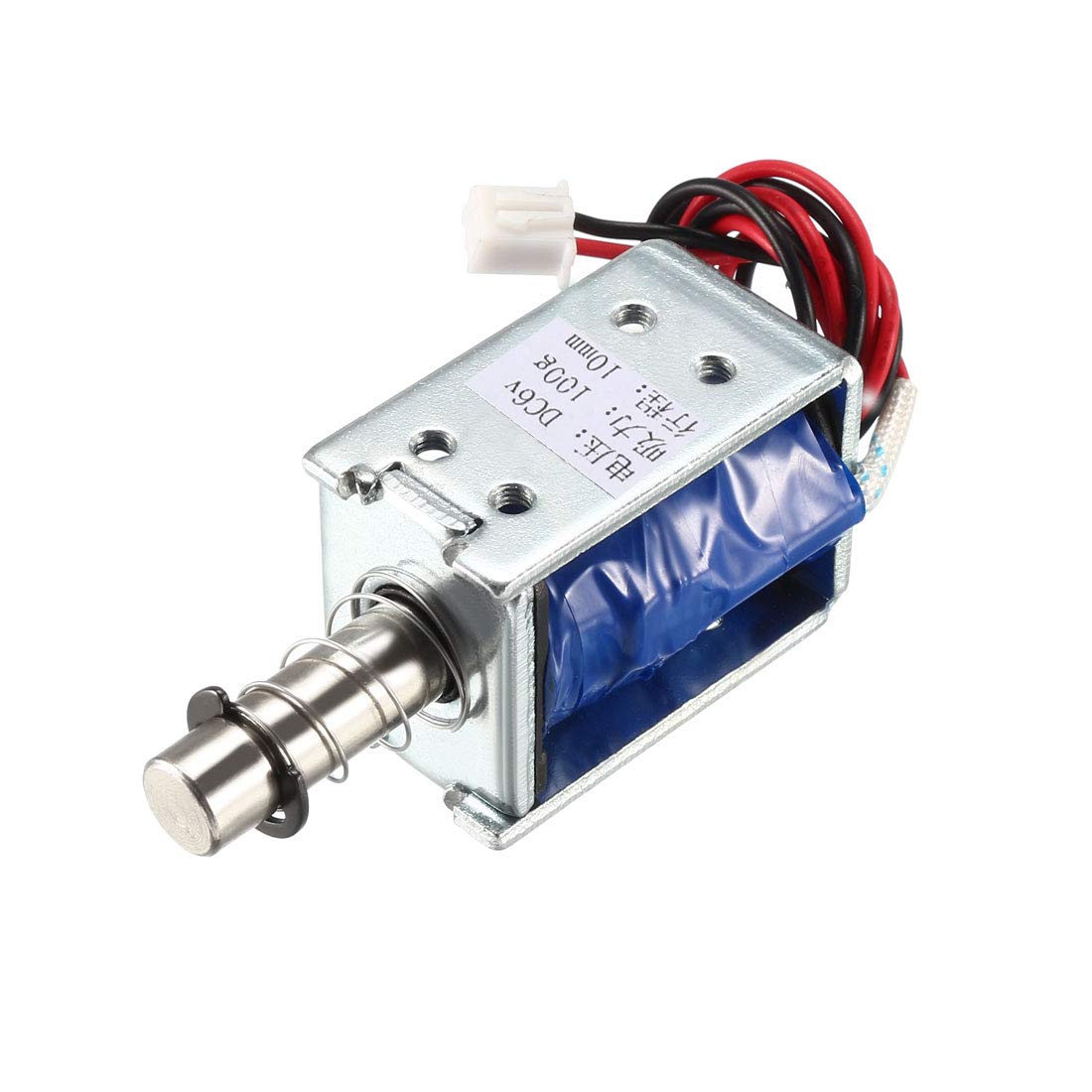

DC 6V 2A 100g Force 10mm Stroke,Pull Type,Open Frame,Electromagnetic Solenoid Lock

Key Features

• 【FEATURE】- DC 6V 2A 100g Force 10mm Stroke Pull Type Solenoid Electromagnet Lock
• 【GOOD DESIGN】- Pull Type, linear motion, plunger spring return, DC solenoid electromagnet.
• 【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high eelectrical conductivity
• 【NOTED】- As an actuating element of anmation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.
• 【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.

Product Description

Specification:- Voltage & Current : DC6V 2A- Stroke & Force : 10mm, 100g- Action Type: Pull- Body Size: 37 x 26 x 20mm / 1.46 x 1.02 x 0.79 inch (L*W*H)- Plunger Bar Size: 40 x 8mm / 1.57 x 0.31 inch (L*D)- Screw Hole Dia: M3-

Package Content

1 x Electromagnet Solenoid Lock Instructions for Use: - The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished.

Note

The screw hole on the side of the electromagnet is used to install and fix the electromagnet. Please pay attention to the length of the screw when installing.
