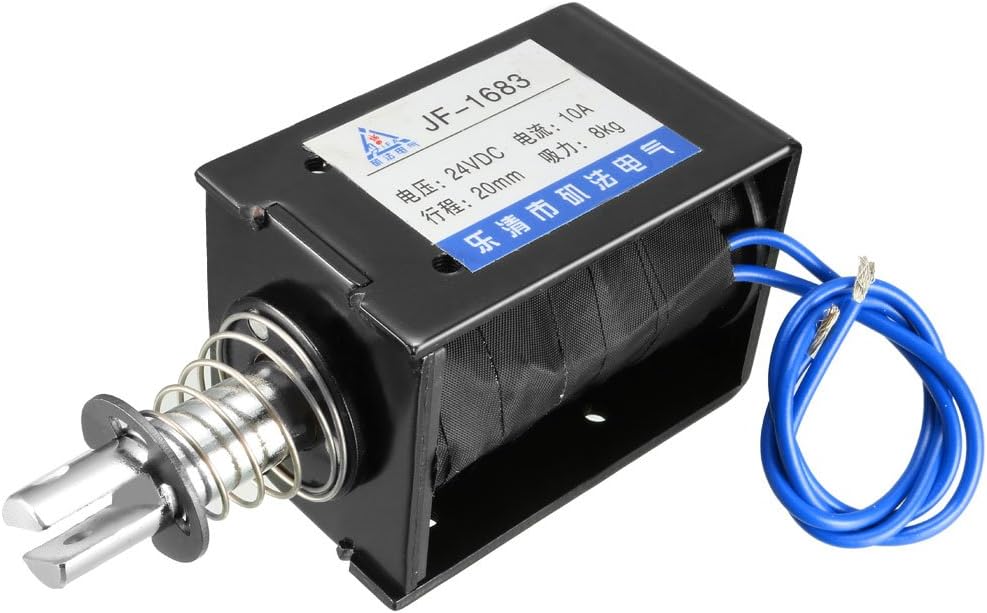

DC 24V 8KG 20mm Stroke Pull Type Open Frame Solenoid Electromagnet Linear Motion JF-1683

Key Features

• 【FEATURE】- DC 24V 10A 8KG Force Push Pull Solenoid Electromagnet
• 【GOOD DESIGN】- Pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet. Less power consumption, low temperature rise, no magnetism when power off.
• 【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high electrical conductivity. It can be installed flexibly and quickly, which is very convenient.
• 【NOTED】- As an actuating element of equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 114 seconds.
• 【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.

Product Description

Description

Pull Type, linear motion, plunger spring return, DC solenoid electromagnet.Support DC 24V voltage, high power, pull type, linear motion, is easy to install.DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc. Specification:Material :MetalForce: 8KG;Cable Length: 250mm / 9.84";Rated Voltage: DC 24V;Current: 10APush Bar Dia: 15.8mm / 0.62";Total Length: 130mm / 5.11";Mounting Hole Dia.: M5Size: 84 x 52 x 58mm / 3.3" x 2.05" x 2.28" (L*W*H)

Package Content

1 x DC Solenoid Electromagnet

Note

Please pay attention:As an actuating element of automation equipment,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operation time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using electricity, so as not to damaged the electromagnet.
