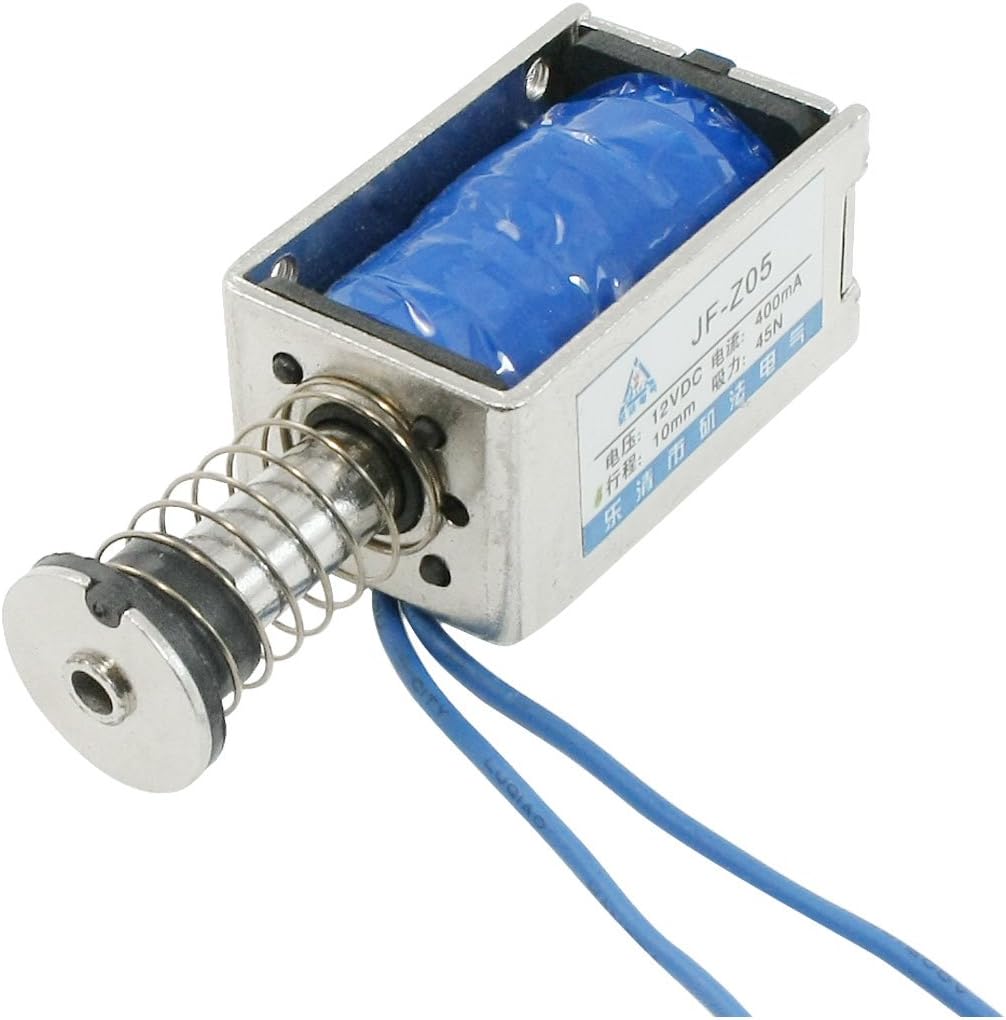

DC 12V 400mA Push Pull Type Open Frame Solenoid Electromagnet 10mm 45N 9.9LB

Key Features

• Product Name Open Frame Solenoid Electromagnet;Model JF-Z05;Material Metal, Electronic Parts
• Rated Voltage DC 12V;Rated Current 400mA;Stroke 10mm
• Force 45N/4.5Kg/9.9LB;Metal Frame Size 51 x 30 x 25mm/ 2'' x 1.2'' x 1'' (L*W*H);Coil Size 40 x 23mm/1.6'' x 0.9'' ''(L*D)
• Total Lenght 88mm/3.5";Plunger Diameter 20mm/ 0.8'';Cable Length 16cm/ 6.3''
• Net Weight 187g;Package Content 1 x Open Frame Solenoid Electromagnet

Product Description

Open frame style, open coil form, built-in mounting board, DC electronmagnet.Used widely in banking ATM, vending machines, electronic appliances, embroidery machines, intelligent lock, juice bread maker, textile machines, cash register or other automatic control devices.
