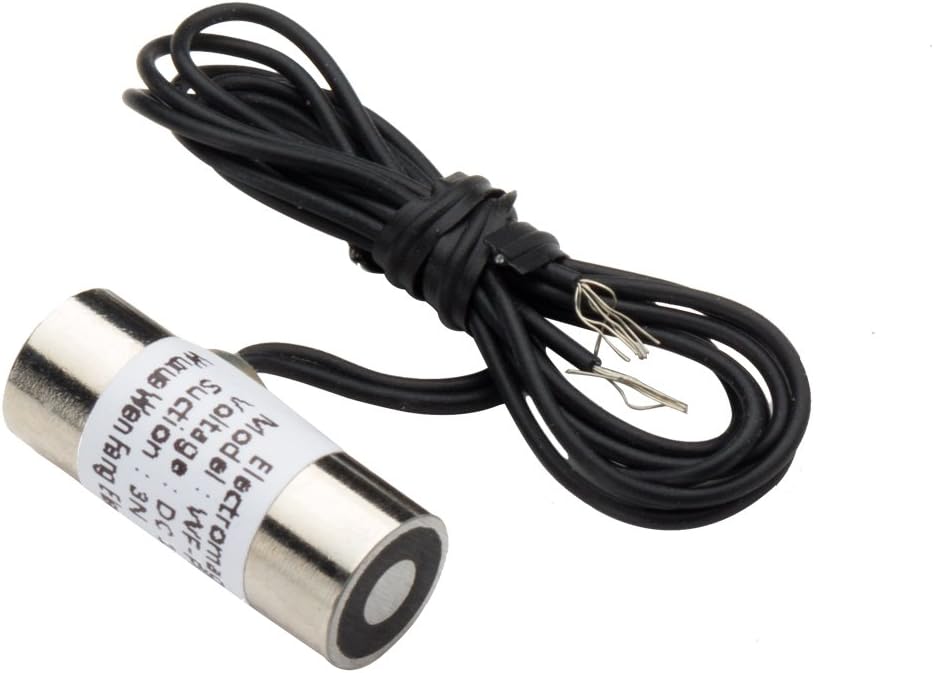

DC 12V 3N Electric Lifting Magnet Electromagnet Solenoid Lift Holding

Key Features

• Input Voltage 12V DC; Peak Force 3N Holding Force 2.5N Duty-cycle (ED%) 50%; Electric timeLess than 7 minutes ; Thread Size M3*4; Material Pure Iron
• Overall Size 8 x 20mm / 0.3 x 0.8inch(Dia. *T); Lead Length 24cm/9. 5 inch; Lead Color Black / Blue（Random）
• Use QA-1/155 Varnished Wire, withstand high temperature up to 155C, better than the QA-1/130 in the market
• Use UL1332 lead wire, non-deformation withstand high temperature up to 155C
• Use PA66GF30 nylon plastic for framework; high temperature resistance

Product Description

Feature:Electric lifting magnetPowerful and compactSmooth and flat surfaceLow consumption and reliableApplications: assembly line, sorting machine, mechanical arm, experimental facility, etc

Note

The Force will be decrease due to long time working ,lower voltage and improper Sucked object ect.It is recommended that the actual force is less than 80% of the sucked force on the name plate. Specification:Material: MetalInput Voltage: 12V DCPeak Force :3NHolding Force : 2.5NDuty-cycle (ED%) : 50%;Electric time:Less than 7 minutes ;Overall Size : 8 x 20mm / 0.3 x 0.8inch(Dia. *T)Thread DIA : 3mmLead Length : 24cm/9. 5 inchLead Color: Black / Blue（Random）

Package Includes

1 x Holding Electromagnet
