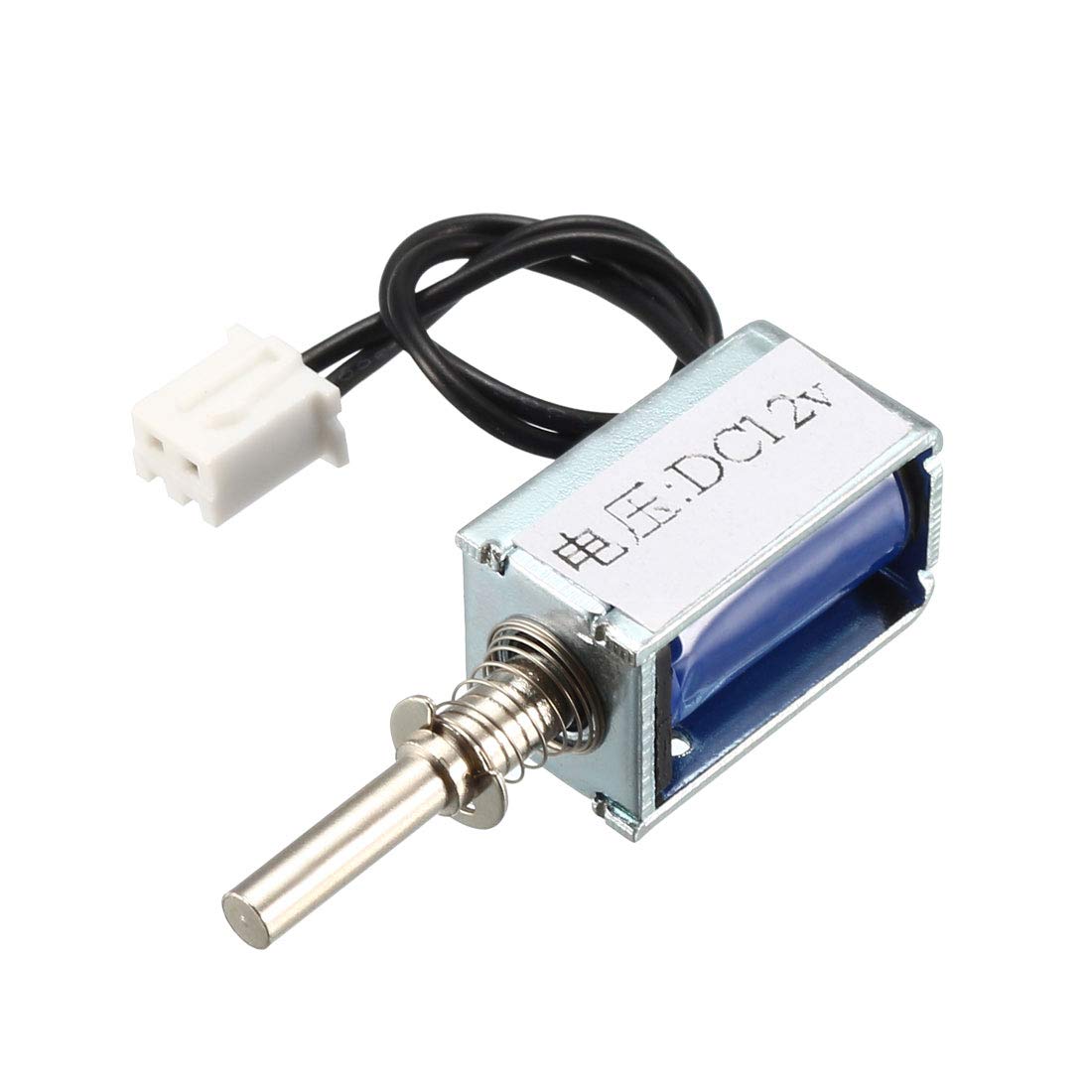

DC 12V 3mm/35g 4mm Push Pull Type Mini Solenoid Electromagnet, Open Frame, Linear Motion

Key Features

• Working Voltage & Current DC 12V 0.3A; Stroke & Force 4mm, 3mm/35g
• Action Form Push Pull Type; Package Content 1 x DC Solenoid Electromagnet
• Support DC 12V voltage, linear motion, is easy to install.
• Push Pull Type, linear motion, open frame, DC solenoid electromagnet.
• DC solenoid electromagnet mainly used in home appliances,vending machines, game machine,door lock,etc.

Product Description

Description

• Push Pull Type, linear motion, open frame, DC solenoid electromagnet.- Support DC 12V voltage, linear motion, is easy to install.- DC solenoid electromagnet mainly used in home appliances,vending machines, game machine,door lock,etc.Specification:- Working Voltage & Current : DC 12V 0.3A- Stroke & Force : 4mm, 3mm/35g- Action Form : Push Pull Type- Body Size : 20 x 12 x 11mm / 0.79 x 0.47 x 0.43 inch (L*W*H)- Plunger Dia: 3mm / 0.12 inch-

Package Content

1 x DC Solenoid Electromagnet

Note

• Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.- Please take the electromagnet put down gently when you install it. This product is small in size, please pay attention to in the process of using eelectricity.
