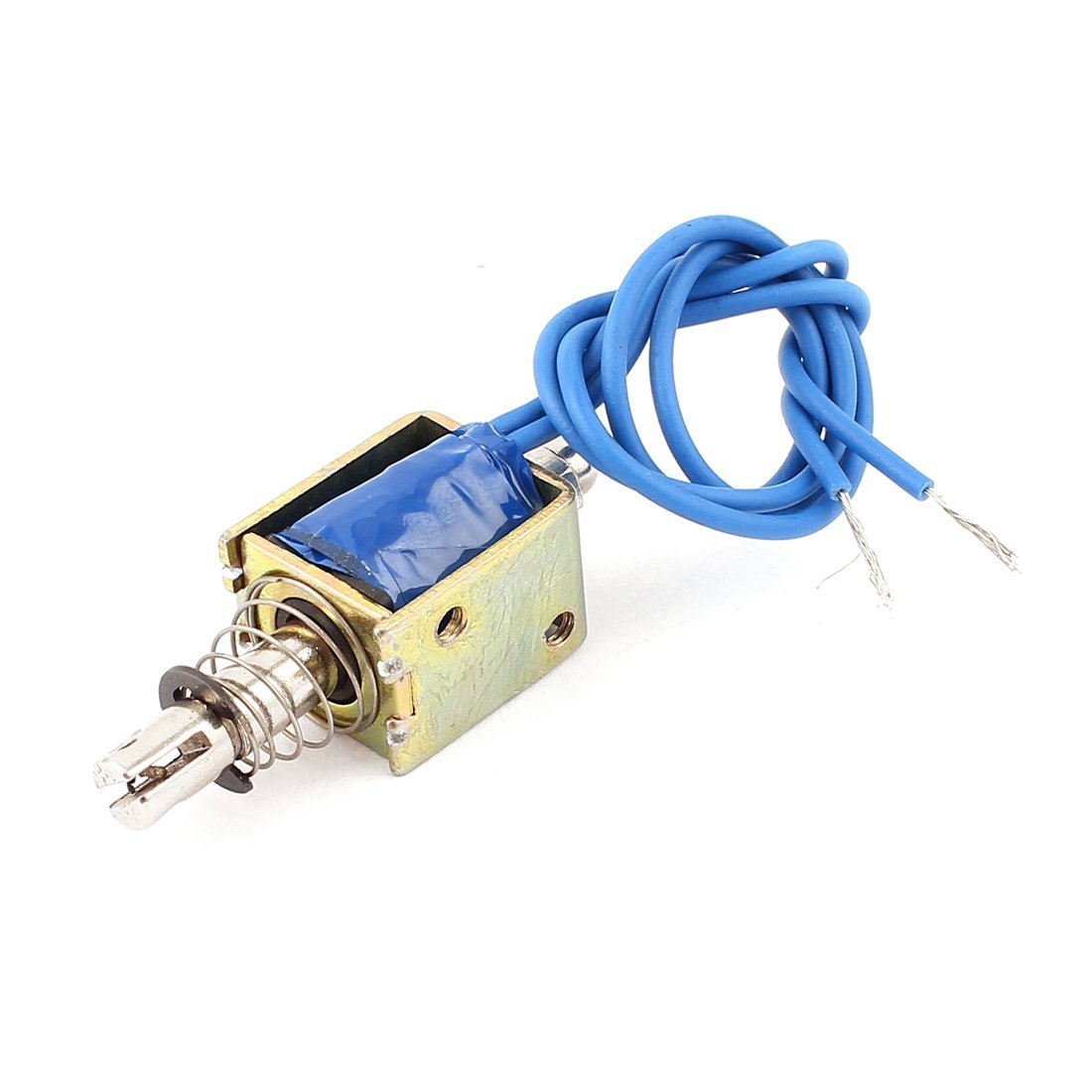

DC 12V 300mA 4N Lifting Holding Force Pull Push Type Solenoid Electromagnet

Key Features

• Country of Manufacture CHINA; Material Metal,Electronic Parts; Net Weight 23g
• Package Content 1 x Solenoid Electromagnet; Model JF-0520B; Main Color Silver Tone,Blue
• Rated Voltage & Current DC 12V 300mA; Action Form Pull Push Type; Stroke & Force 10mm/4N
• Body Size 20 x 17 x 15mm/0.8" x 0.67" x 0.6"(L*W*H); Plunger Size 46 x 5.8mm/1.8" x 0.23"(L*Max.D)
• Cable Length 18cm/7.1"; Product Name Solenoid Electromagnet

Product Description

Pull push type, open frame type, linear motion, open coil form, DC electronmagnet. The electromagnets are suitable for operating mechanism of mechanical equipment and automatic system.such as cash register, lock, storing, cabinet, payphone and so on.

Specifications
