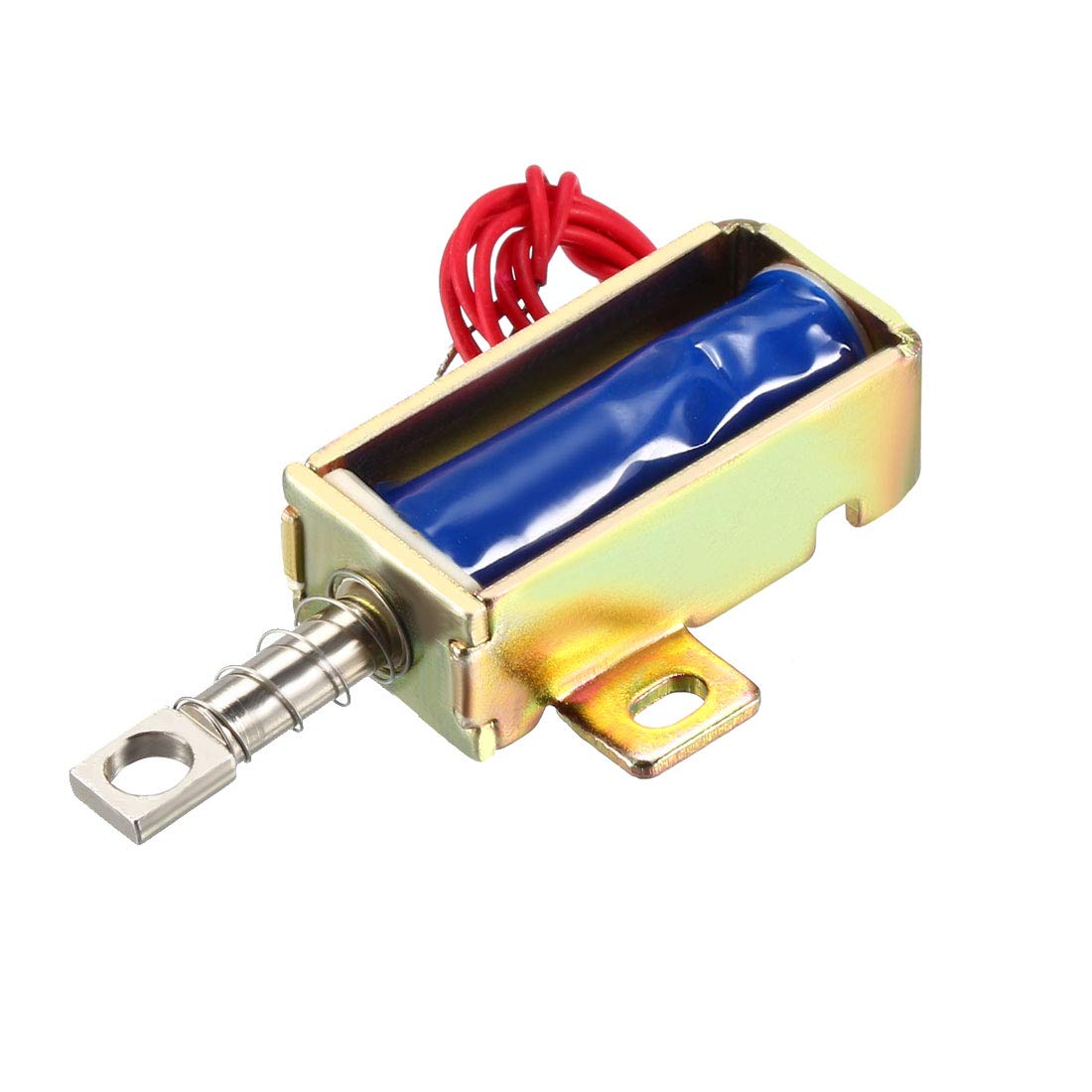

DC 12V 2A 5mm Mini Electromagnetic Solenoid Lock Pull Type for Electirc Door Lock

Key Features

• Voltage & Current DC12V 2A; Stroke & Force 5mm, 260g
• Action Type Pull; Energized Forms Intermittent; Package Content 1 x Electromagnet Solenoid Lock
• Easy to Install - It's with simple structure,and it can save the energy and the time during the installation for you.
• With Low Use Cost - This electric lock use instantaneous power, can save power for you. So it can save money for you.
• Small Size and Light Weight - It just takes up a small space which is perfect lock to be used for the small box or small cabinets.

Product Description

Specification:- Voltage & Current : DC 12V 2A- Stroke & Force : 5mm, 260g- Action Type: Pull- Energized Forms: Intermittent- Body Size: 30 x 27 x 10mm / 1.18 x 1.06 x 0.39 inch (L*W*H)- Plunger Bar Size: 34 x 4.5mm / 1.34 x 0.18 inch (L*D)- Mounting Hole Size: 4 x 2.5mm / 0.16 inch x 0.1 inch (L*W)- Mounting Hole Distance: 22mm / 0.87 inch (L*W)-

Package Content

1 x Electromagnet Solenoid Lock Instructions for Use: - The red and black wires are the power cords of the electromagnetic lock, and the positive and negative electrodes are not distinguished.

Specifications
