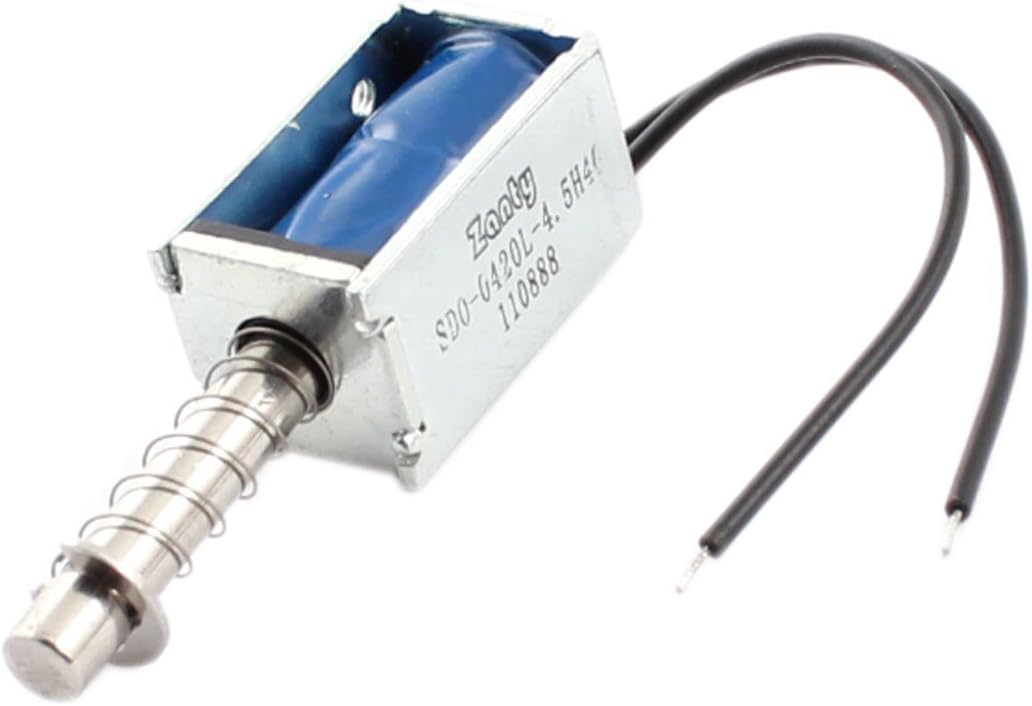

DC 12V 20g Force 3mm Stroke Pull Type Solenoid Electromagnet

Key Features

• Product Name DC Solenoid Electromagnet;Rated Voltage DC 12v ;Type Pull
• Rated Current 0.3A ;Power 3.6W;Force& Stroke 20g / 3mm
• Energized Rate 100%;Body Size 20 x 12 x 11mm / 0.8" x 0.47" x 0.43"(L*W*T);Plunger Bar Size 4 x 18mm / 0.16" x 0.71"(D*L)
• Mounting Hole Dia. 3mm/ 0.12";Cable Length 3cm /1.18";Material Metal, Electronic Parts
• Main Color As Picture Shown;Weight 15g;Package Content 1 x DC Solenoid Electromagnet

Product Description

Dc solenoid electromagnet mainly used in vending machines, transport equipment, office facility household appliance, mechanical, etc. When energized, doing work through pulling in plunger joined object. The solenoid Works with a tower shaped compression spring, here is not included, you need to buy one.

Specifications
