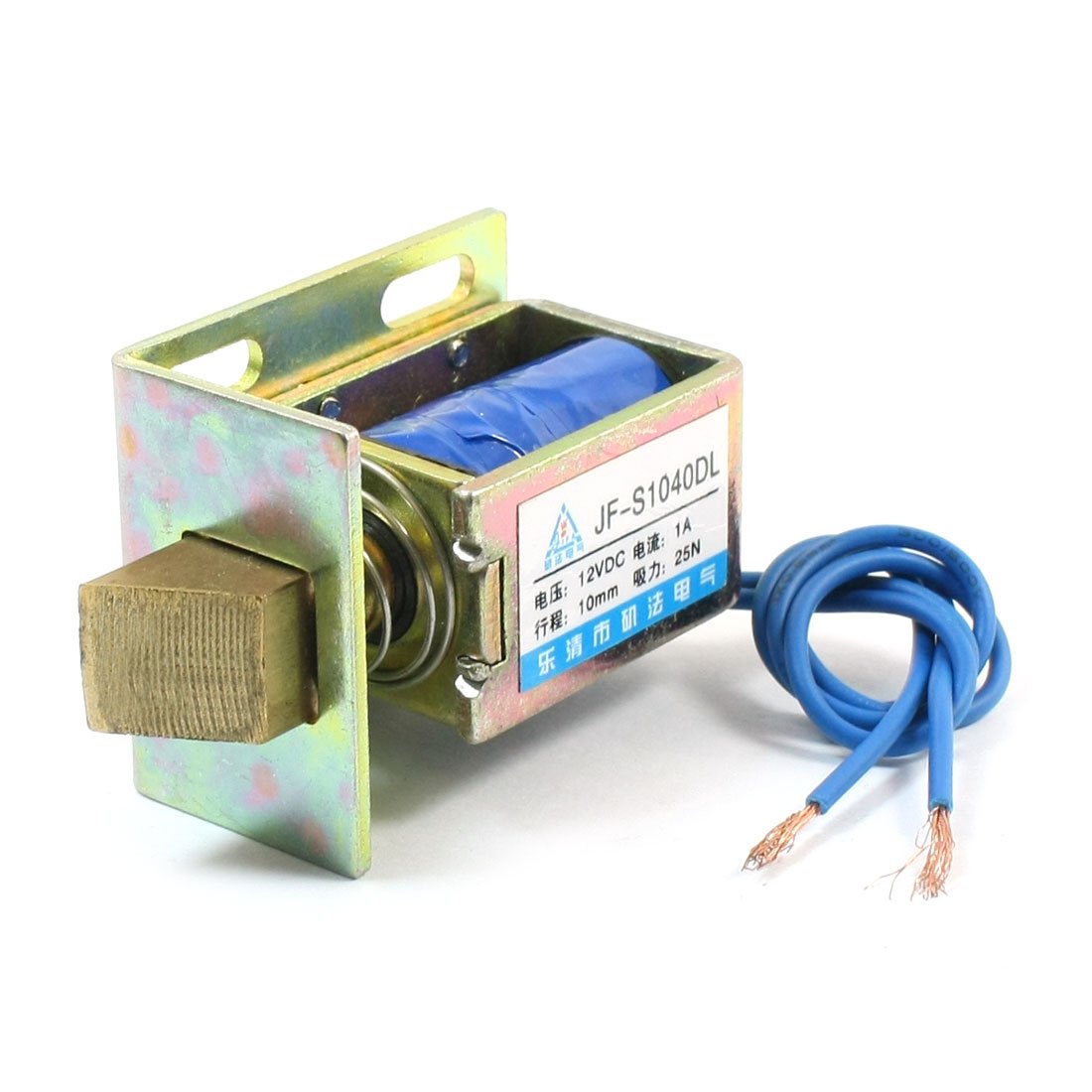

DC 12V 1A 10mm Stroke 25N Force Open Frame Electric Door Lock Solenoid

Key Features

• Product Name Door Solenoid;Model JF-S1040DL;Rated Voltage DC 12V 1A
• Rated Stroke & Force 10mm 25N;Type Pull;Body Size 68 x 42 x 31mm/2.7" x 1.6" x 1.2"(L*W*H)
• Mount Hole Size 13 x 5mm/0.51" x 0.2"(L*W);Mounting Hole Center Distance 30 x 30mm/1.2" x 1.2"(L*W)
• Cable Length 19cm/7.5'';Material Metal, Electronic Parts
• Net Weight 200g;Package Content 1 x Door Solenoid Electromagnet

Product Description

Designed with the open frame Type and mount board, high power. Easy to install for the electric door lock or other automatic door lock systems with the mounting board.

Specifications
