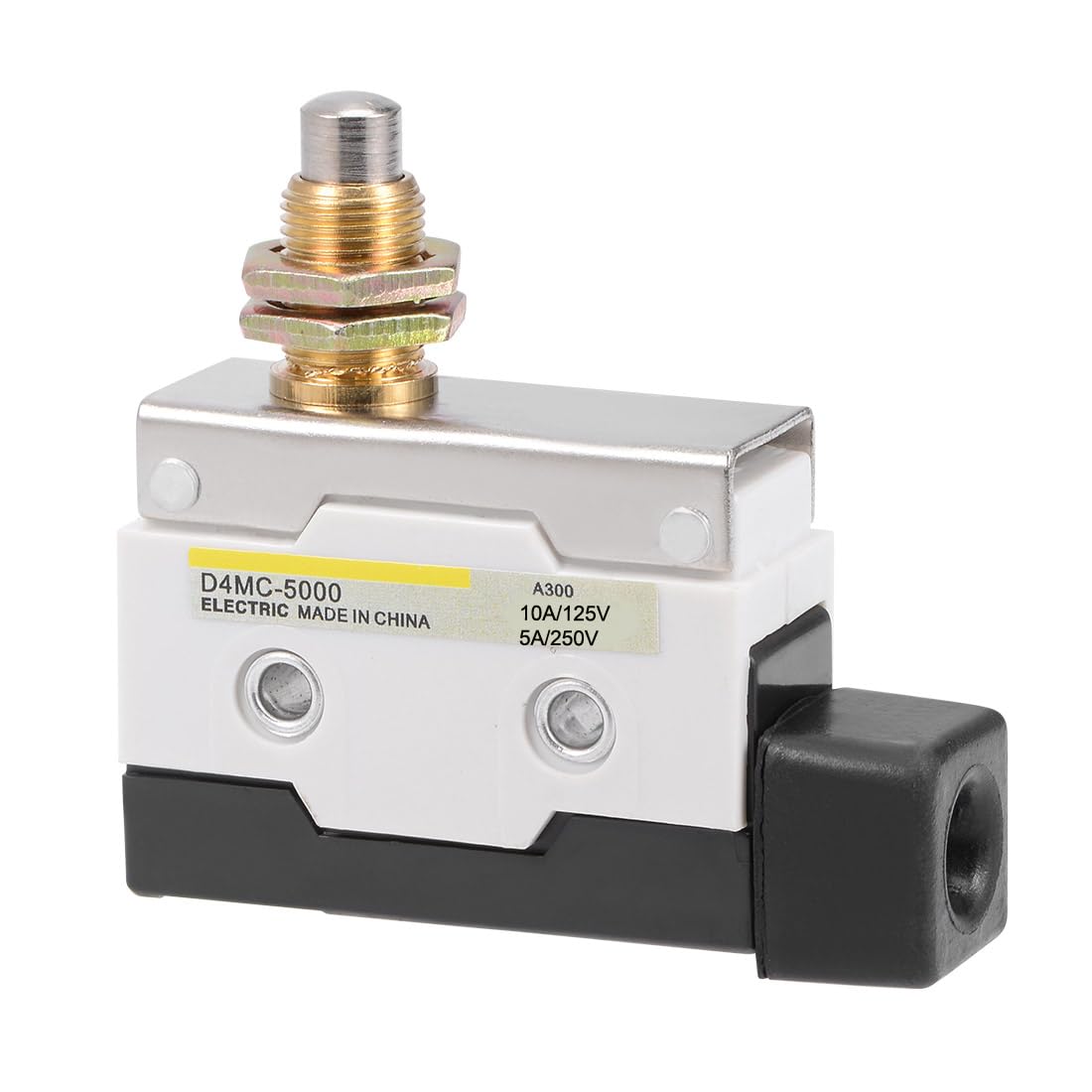

D4MC-5000 Roller Plunger Micro Limit Switch Momentary Panel Mount 1NC+1NO 7310 for CNC Mill 3D Printer Door Switch
Key Features
- Model D4MC-5000 (7310); Plunger Type
- built-in basic switch with good electrical conductivity
- Able to withstand some washdowns, shock and vibration
- Easy-to-wire, smooth operation and reliable
- Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Product Description
Specification:Product Name: Limit SwitchModel: D4MC-5000 (7310)Actuator Type: Plunger TypeRated Voltage: 5A 125VDC / 10A 250VACContact Configuration: 1NC+1NOBody Size: 54 x 42 x 21mm (L*W*T)Mounting Hole Size: 4.2mm (D)Mounting Hole Distance: 25.4mm The plunger operated by hydraulic pressure or air cylinder power detects positions highly accurately.The plunger must be installed according to the movement of the dog so that an incorrect load will not be imposed on the plunger. Operating Characteristics:OF max.: 600gRF min.: 100gPT max.: 2.0mmOT min.: 6.0mmMD max.: 0.8mmOP: 21.8+/-1.2mm
Description
Insentive ABS plastic shell, sealed construction.Panel mount, side fixed with better water-proof and oil-proof performance.Smooth operation with highter OT.Silver contacts. Easy-to-wire design.This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
Specifications
| Item Weight | 0.01 Ounces |
| Product Dimensions | 5.51 x 3.94 x 1.97 inches |
