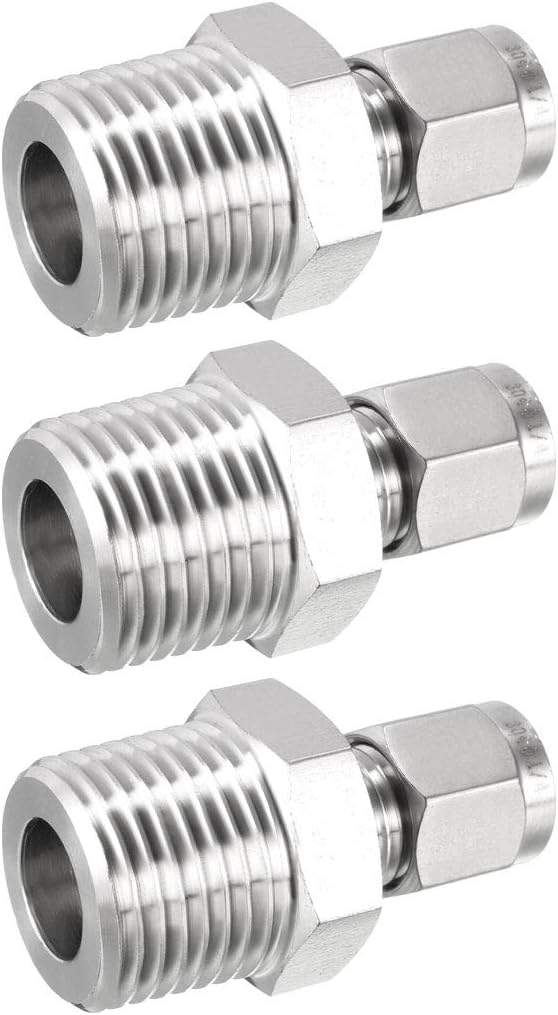

Compression Tube Fitting, 1/2 NPT Male x Ф1/4" Tube OD with Double Ferrules 3pcs

Key Features

• 【1/2 NPT MALE x Ф6mm(1/4") TUBE OD】Tube OD Ф6mm(1/4") ; Male Dia 1/2 NPT ; Ferrule Mini Inner Dia 6mm/0.24inch
• 【DOUBLE FERRULE】This fitting has a double ferrule construction,reducing the possibility of leakage
• 【NO NEED TO WELD】It does not need to be welded when it is connected with steel pipe, which is conducive to fire prevention, explosion protection and high altitude operation, and can remove the drawbacks caused by inadvertent welding
• 【SAFE & DURABLE】Strong connection, strong pressure resistance, good sealing and repeatability, convenient installation and maintenance, safe and reliable operation
• 【REPEATABLE INSTALLATION】All joints can be re-installed, but to ensure that the parts are not damaged and clean

Product Description

Specification :Product Name : Compression Tube FittingMaterial : 304 Stainless SteelTube OD : Ф6mm(1/4")Male Dia : 1/2 NPTFerrules Mini Inner Dia : 6mm/0.24inchTotal Size : 43*25mmColor : Silver Tone

Package Content

3pcs x Compression Tube Fitting

Description

1.

How to Use

This coupling is for a fixed connection between tubing and pipe made of stainless steel. A single ferrule compression fitting connects to tubing on one end for a leak-resistant seal in high-pressure, high-vacuum, and high-vibration applications, and a male NPT connector on the other end connects to threaded pipe. Single ferrule compression fittings have fewer possible leak paths than twin ferrule fittings.2.This fitting is made of chemically hardened type 304 stainless steel that provides higher strength and greater corrosion resistance.3.Application : It is commonly used in chemical, petroleum, power generation, laboratory, and device plants.4.

Note

Pipe and tube fittings are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. Compression fittings do not require tools or sealants, and are useful in installations where a heat source, such as a soldering torch, is prohibited. When purchasing fittings, consider the application, as this will affect material type, shape, size, and required durability. Fittings are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).
