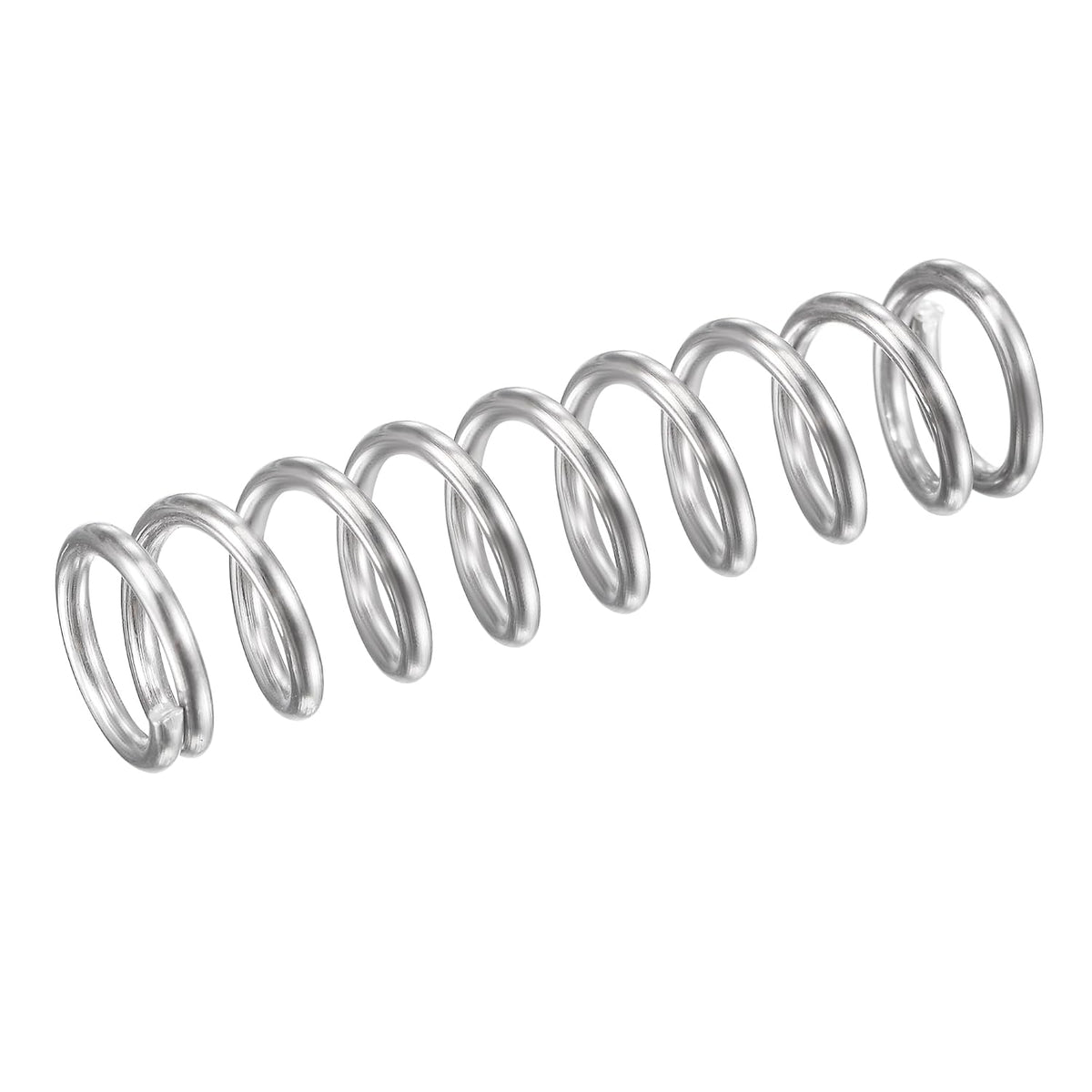

Compression Spring,304 Stainless Steel,9mm OD,1.2mm Wire Size,9mm Compressed Length,35mm Free Length,61.8N Load Capacity, Silver Tone,10pcs

Key Features

• Product 9mm/0.35inch OD, 1.2mm/0.05inch Wire Diameter,35mm/1.37inch Total Height.
• Specifications 22.75mm/0.89inch Compressed Length, 61.8N Load Capacity, 5.04 N/mm Spring Rate.
• [Material] - 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness..
• Feature Spring ends are closed (squared), but not ground for efficient force transfer and reduced possibility of tangling.
• Application Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required.

Product Description

Product: 9mm/0.35inch OD, 1.2mm/0.05inch Wire Diameter,35mm/1.37inch Total Height.

Specifications

22.75mm/0.89inch Compressed Length, 61.8N Load Capacity, 5.04 N/mm Spring Rate. [Material] - 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness.. Feature: Spring ends are closed (squared), but not ground for efficient force transfer and reduced possibility of tangling. Application: Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required. ›
