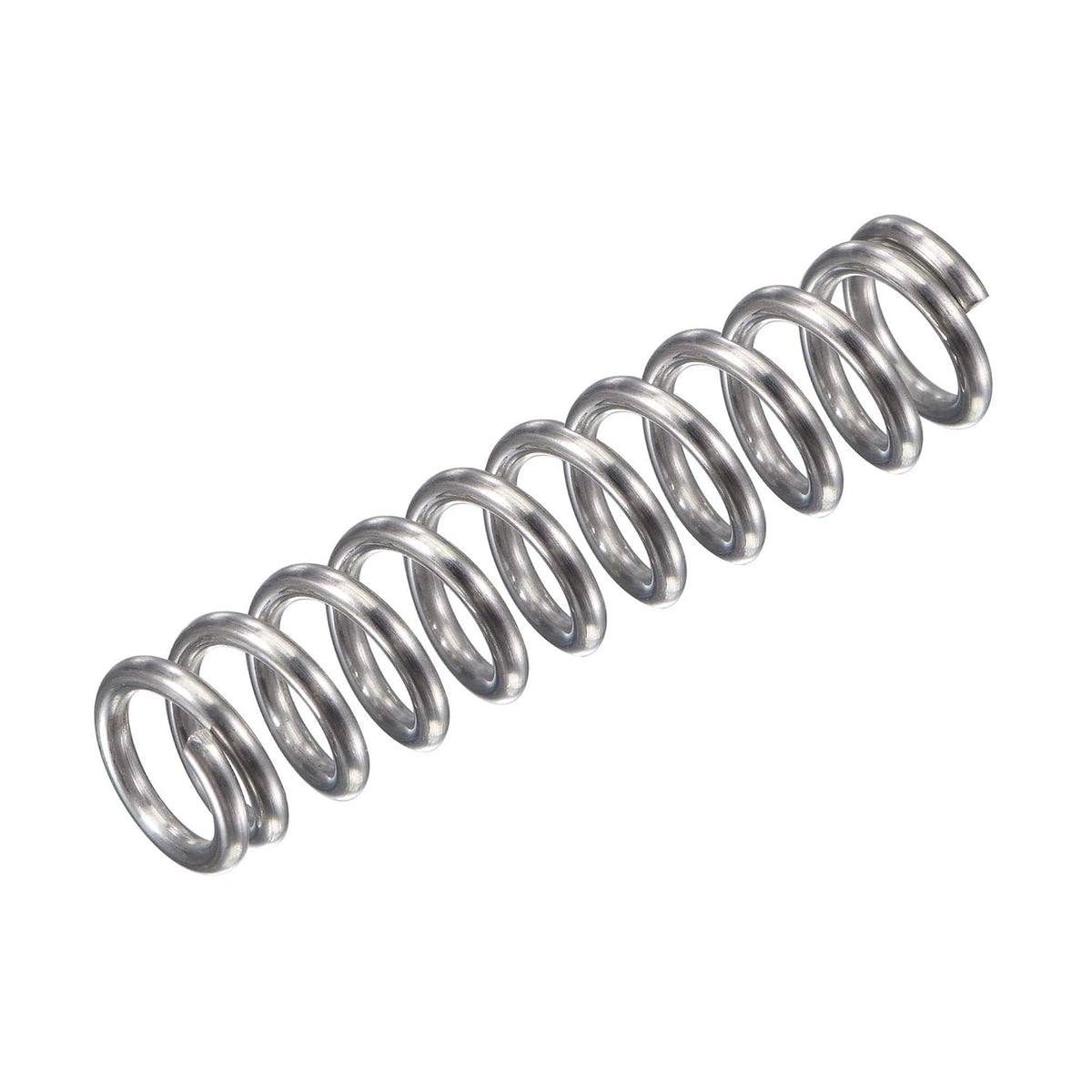

Compression Spring,304 Stainless Steel,8mm OD,1.2mm Wire Size, 22.8mm Compressed Length,35mm Free Length,61.8N Load Capacity for Home Projects, Silver Tone, 5pcs

Key Features

• [Products] - Outer Diameter 8mm/0.32inch; Wire Diameter 1.2mm/0.05inch; Total Height 35mm/1.38inch;
• [Specifications] - Compressed Length 22.8mm/0.9inch; Load Capacity 61.8N; Spring Rate 5.04 N/mm
• [Material] - 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness..
• [Feature] - Spring ends are closed for efficient force transfer and reduced possibility of tangling.
• [Application] - Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required.

Product Description

[Products] - Outer Diameter: 8mm/0.32inch; Wire Diameter: 1.2mm/0.05inch; Total Height: 35mm/1.38inch; [Specifications] - Compressed Length: 22.8mm/0.9inch; Load Capacity: 61.8N; Spring Rate: 5.04 N/mm [Material] - 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness.. [Feature] - Spring ends are closed for efficient force transfer and reduced possibility of tangling. [Application] - Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required. ›
