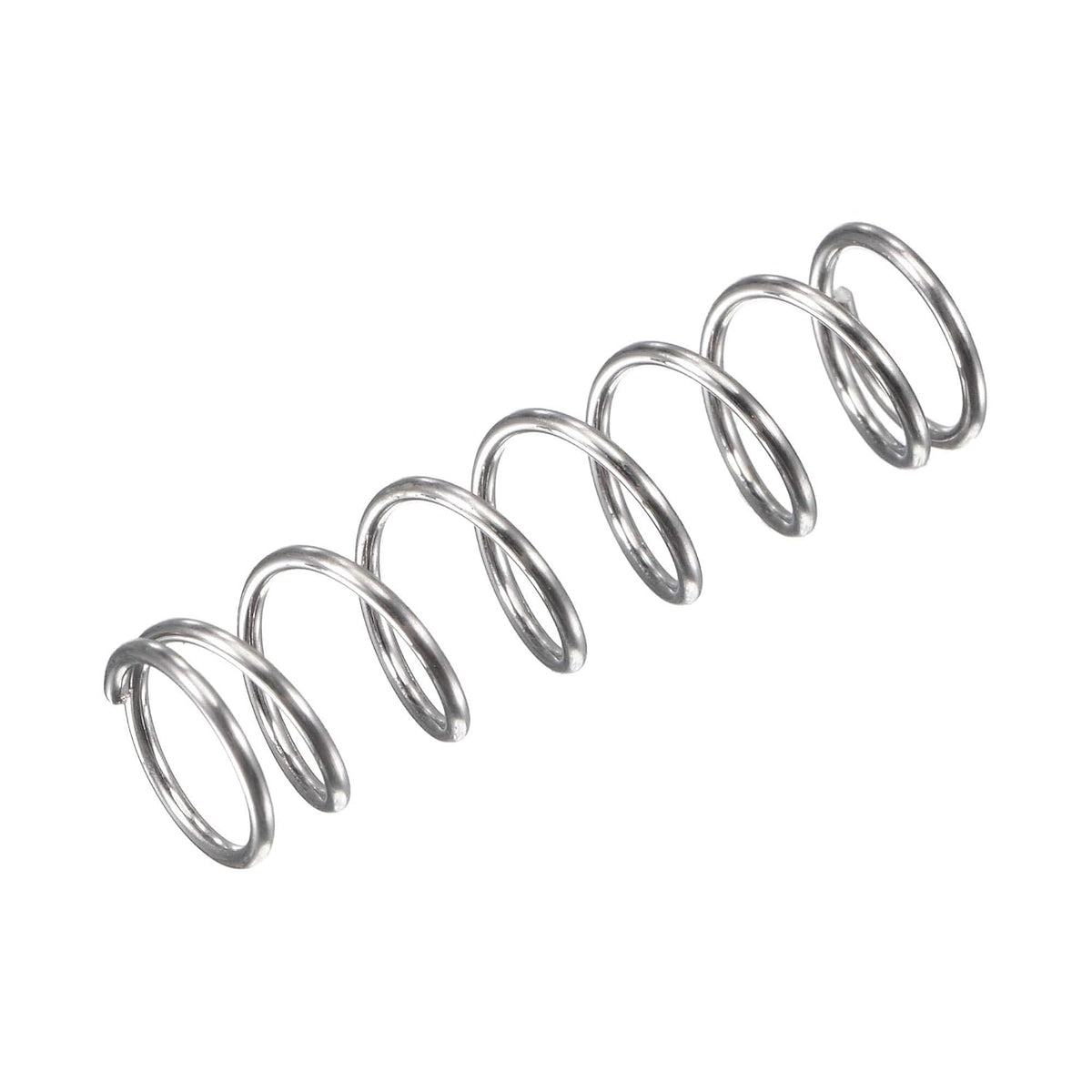

Compression Spring,304 Stainless Steel,7mm OD,0.7mm Wire Size, 15mm Compressed Length,25mm Free Length,11.8N Load Capacity for Home Projects, Silver Tone, 20pcs

Key Features

• [Products] - Outer Diameter 7mm/0.28inch; Wire Diameter 0.7mm/0.03inch; Total Height 25mm/0.98inch;
• [Specifications] -Compressed Length 15mm/0.59inch; Load Capacity 11.8N; Spring Rate 1.18 N/mm
• [Material] - 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness..
• [Feature] - Spring ends are closed for efficient force transfer and reduced possibility of tangling.
• [Application] - Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required.

Product Description

[Products] - Outer Diameter: 7mm/0.28inch; Wire Diameter: 0.7mm/0.03inch; Total Height: 25mm/0.98inch; [Specifications] -Compressed Length: 15mm/0.59inch; Load Capacity: 11.8N; Spring Rate: 1.18 N/mm [Material] - 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness.. [Feature] - Spring ends are closed for efficient force transfer and reduced possibility of tangling. [Application] - Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required. ›
