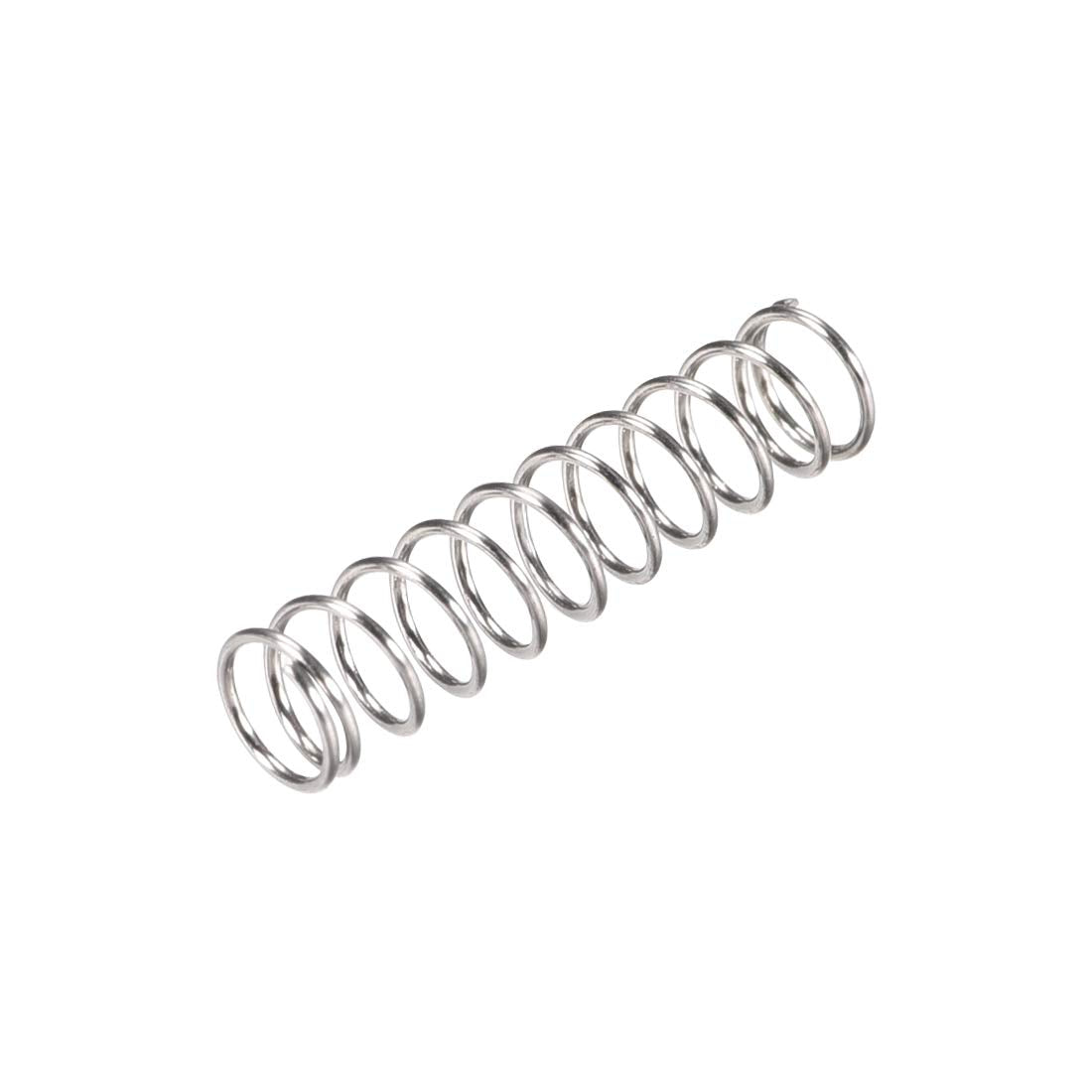

Compression Spring,304 Stainless Steel,5mm OD,0.5mm Wire Size,11mm Compressed Length,20mm Free Length,7.8N Load Capacity,Silver Tone,10pcs

Key Features

• Product 5mm/0.2inch OD, 0.5mm/0.02inch Wire Diameter,20mm/0.78inch Total Height.
• Specifications 11mm/0.43inch Compressed Length,7.8N Load Capacity, 1.73 N/mm Spring Rate.
• Material 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness.
• Feature Spring ends are closed (squared), but not ground for efficient force transfer and reduced possibility of tangling.
• Application Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required.

Product Description

Product: 5mm/0.2inch OD, 0.5mm/0.02inch Wire Diameter,20mm/0.78inch Total Height.

Specifications

11mm/0.43inch Compressed Length,7.8N Load Capacity, 1.73 N/mm Spring Rate. Material: 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness. Feature: Spring ends are closed (squared), but not ground for efficient force transfer and reduced possibility of tangling. Application: Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required. ›
