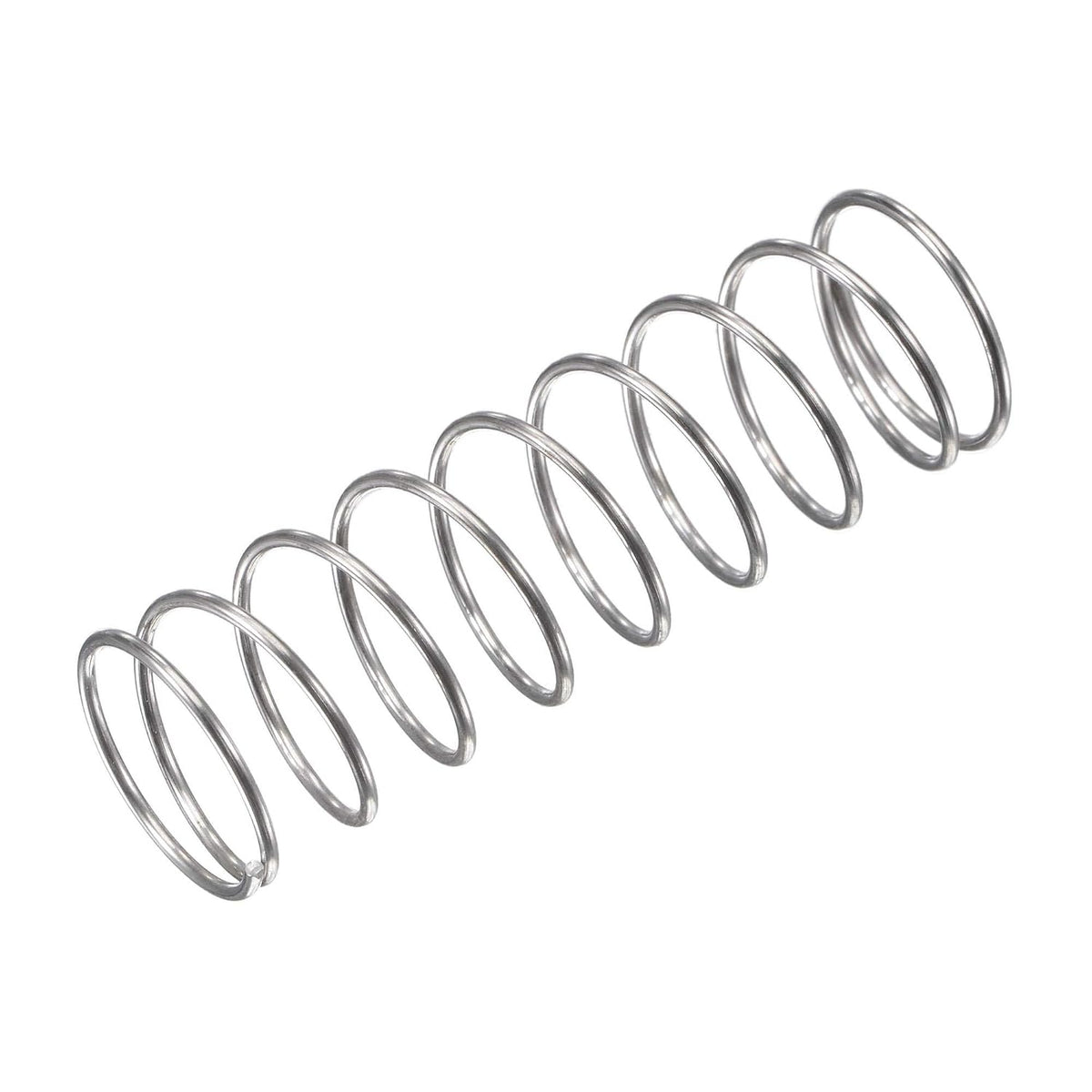

Compression Spring,304 Stainless Steel,16mm OD,1mm Wire Size, 30mm Compressed Length,50mm Free Length,5.9N Load Capacity for Home Projects, Silver Tone, 5pcs

Key Features

• [Products] - Outer Diameter 16mm/0.63inch; Wire Diameter 1mm/0.04inch; Total Height 50mm/1.97inch;
• [Specifications] - Compressed Length 30mm/1.18inch; Load Capacity 5.9N; Spring Rate 0.3 N/mm
• [Material] - 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness..
• [Feature] - Spring ends are closed for efficient force transfer and reduced possibility of tangling.
• [Application] - Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required.

Product Description

[Products] - Outer Diameter: 16mm/0.63inch; Wire Diameter: 1mm/0.04inch; Total Height: 50mm/1.97inch; [Specifications] - Compressed Length: 30mm/1.18inch; Load Capacity: 5.9N; Spring Rate: 0.3 N/mm [Material] - 304 Stainless steel wire offers good mechanical properties with greater corrosion and heat resistance than music wire as well as has high elasticity and high hardness.. [Feature] - Spring ends are closed for efficient force transfer and reduced possibility of tangling. [Application] - Compression spring steel wire spring is used for everything from home appliances to motor equipment, motor, etc. as it is the type of spring required. ›
