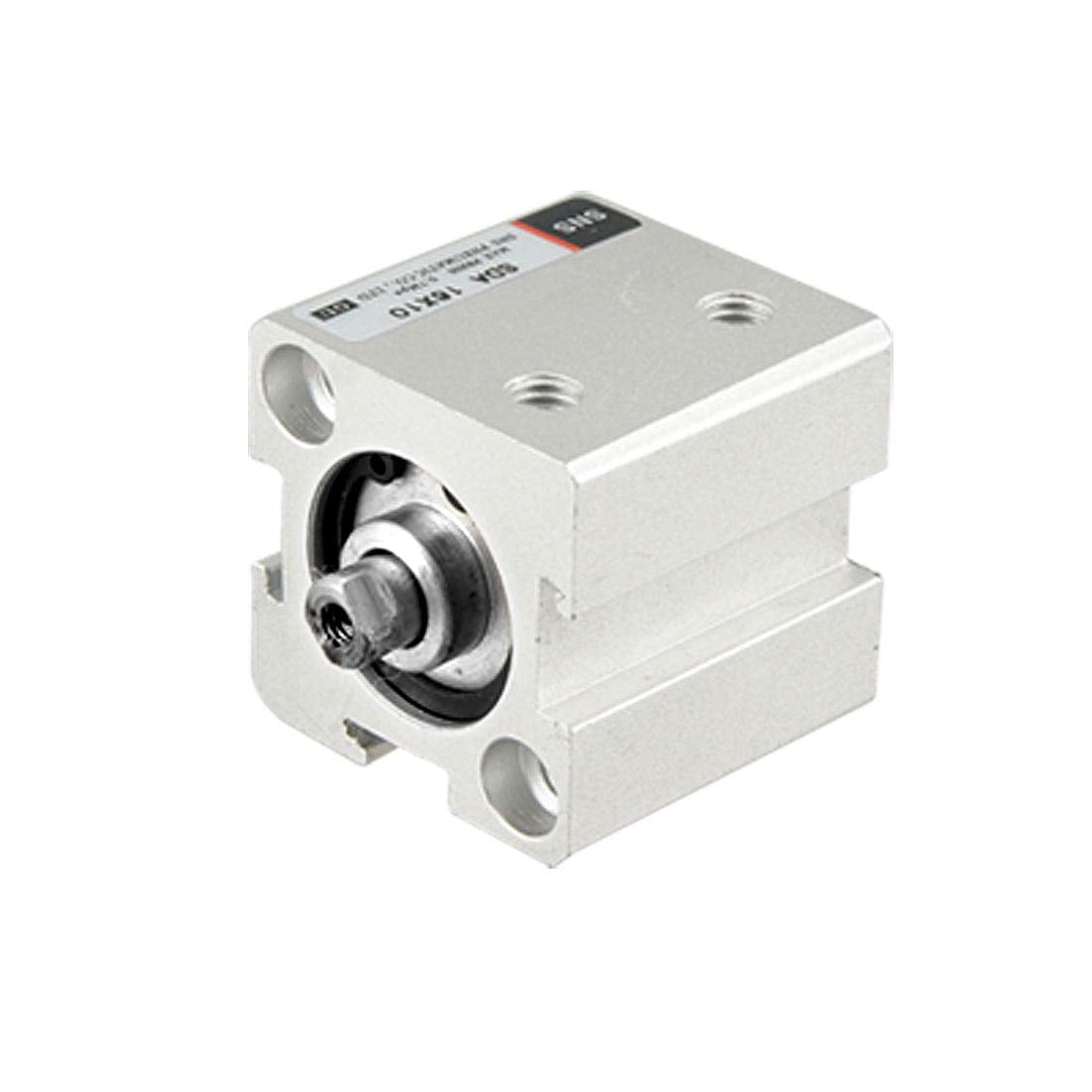

Compact SDA 16 x 10 Piston Rod Pneumatic Air Cylinder

Key Features

• Product Name Air Cylinder; Material Oxide Coating Metal
• Color Silver Tone; Motion Type Double Action; Model SDA 16 x 10; Max Press 0.7Mpa
• Bore 16mm; Stroke 10mm; Piston Rod External Diameter 6mm
• Overall Dimension 2.9 x 2.9 x 2.9cm/1.1" x 1.1" x 1.1"(L*W*T); Net Weight 56g
• Package Content 1 x Thin Type Air Cylinder

Product Description

Compact thin cylinder requiring small space for installation, easy maintance and disassembly. Provided with push-in slot for installation of magnet swithch, which can fix the magnet switch at any position. The air cylinder, without the need to add lube, suits the occasions of short stroke and small installation space.
