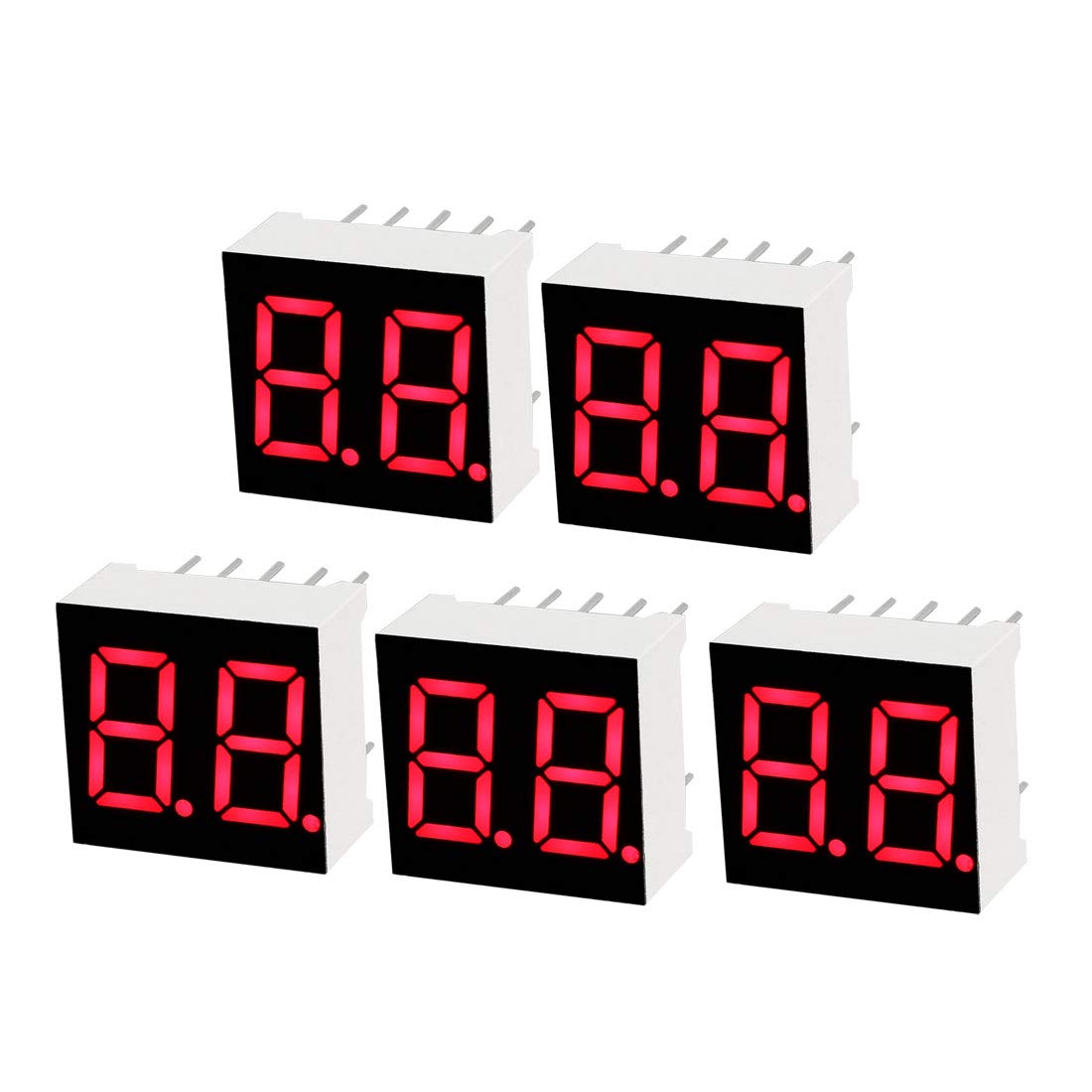

Common Cathode 10 Pin 2 Bit 7 Segment Display 0.59 x 0.55 x 0.28 Inch 0.35" Red LED Display Digital Tube 5pcs

Key Features

• Product Name 7 Segment LED Digital Display Tube; Type Common Cathode; Model 3621AH; Application Widely used in home appliances, instruments, car accessories, etc. Also good for DIY and experiment
• Common Cathode 10-5; Digital Display 2 Digit; Digital Number 2 Bit 7 Segment; Emitted Color Red
• Pin Number 10; Continuous Forward Current 20mA; Average Forward Voltage 2V; Power Consumption 36mW. Convenient to use, it can be driven under such low voltage, low current conditions.
• Luminous Intensity 11mcd; Number Height 0.35 inch; Panel Size 15 x 14 x 7.2mm / 0.59" x 0.55" x 0.28" (L*W*H); Total Size 15 x 14 x 13.5mm / 0.59" x 0.55" x 0.53" (L*W*H)
• Material Plastic, Metal; Color Black, White; Package Content 5 x LED Digital Display Tube；Notice It is recommended to use constant current not constant voltage, constant voltage will cause uneven brightness.

Product Description

Product Name: 7 Segment LED Digital Display Tube; Type: Common Cathode; Model: 3621AH; Application: Widely used in home appliances, instruments, car accessories, etc. Also good for DIY and experiment Common Cathode: 10-5; Digital Display: 2 Digit; Digital Number: 2 Bit 7 Segment; Emitted Color: Red Pin Number: 10; Continuous Forward Current: 20mA; Average Forward Voltage: 2V; Power Consumption: 36mW. Convenient to use, it can be driven under such low voltage, low current conditions. Luminous Intensity: 11mcd; Number Height: 0.35 inch; Panel Size: 15 x 14 x 7.2mm / 0.59" x 0.55" x 0.28" (L*W*H); Total Size: 15 x 14 x 13.5mm / 0.59" x 0.55" x 0.53" (L*W*H) Material: Plastic, Metal; Color: Black, White;

Package Content

5 x LED Digital Display Tube；Notice: It is recommended to use constant current not constant voltage, constant voltage will cause uneven brightness. ›
