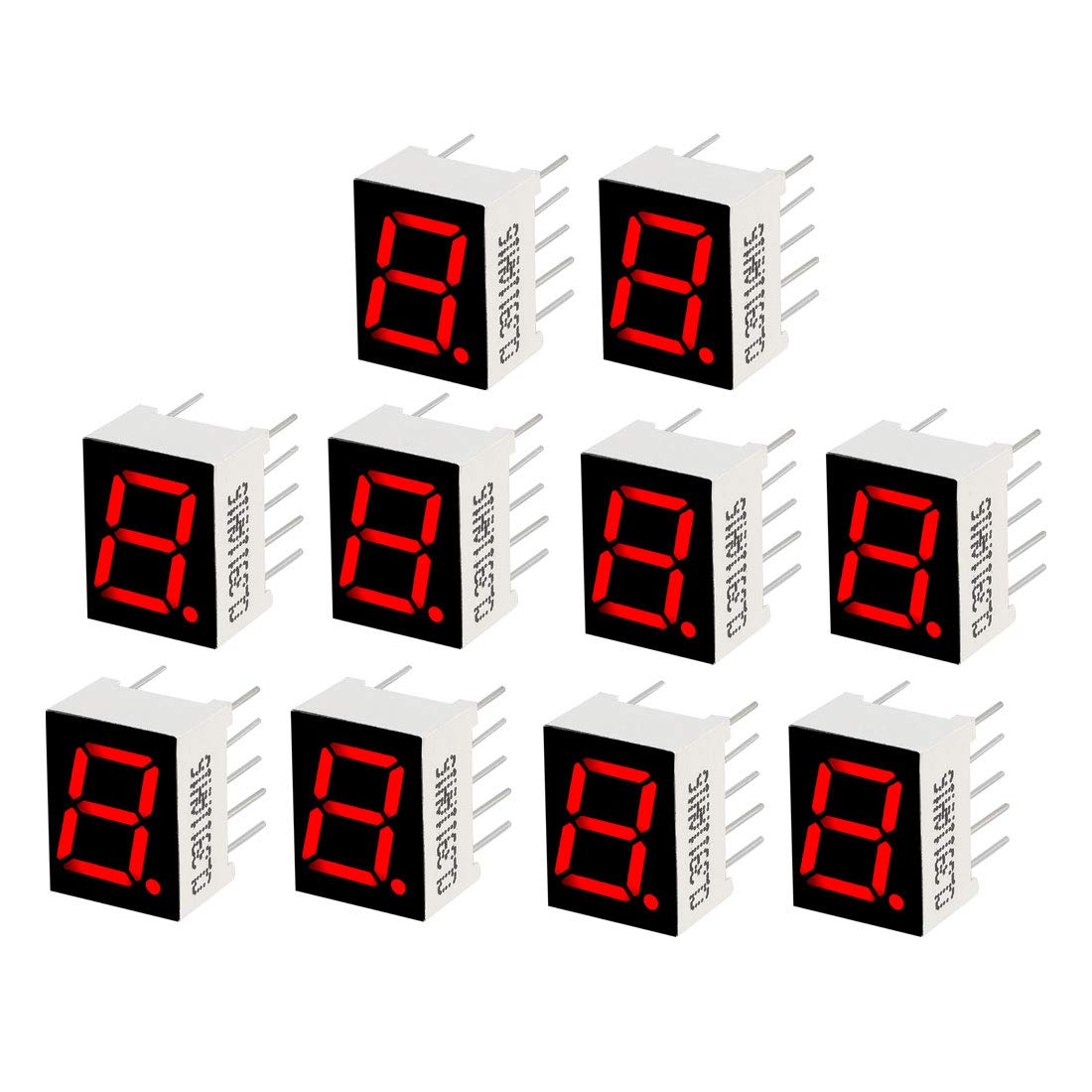

Common Cathode 10 Pin 1 Bit 7 Segment Display 0.51 x 0.39 x 0.28 Inch 0.4" Red LED Display Digital Tube 10pcs

Key Features

• Product Name 7 Segment LED Digital Display Tube; Type Common Cathode; Model 3911AH; Application Widely used in home appliances, instruments, car accessories, etc. Also good for DIY and experiment
• Common Cathode 1-6; Digital Display 1 Digit; Digital Number 1 Bit 7 Segment; Emitted Color Red
• Pin Number 10; Continuous Forward Current 20mA; Average Forward Voltage 2V; Power Consumption 36mW. Convenient to use, it can be driven under such low voltage, low current conditions.
• Luminous Intensity 11mcd; Screen Size 0.4 inch; Number Height 0.4 inch; Panel Size 13 x 10 x 7mm / 0.51" x 0.39" x 0.28" (L*W*H)
• Total Size 13 x 10 x 13.9mm / 0.51" x 0.39" x 0.55" (L*W*H); Material Plastic, Metal; Color Black, White; Package Content 10 x LED Digital Display Tube；Notice It is recommended to use constant current not constant voltage, constant voltage will cause uneven brightness.

Product Description

Product Name: 7 Segment LED Digital Display Tube; Type: Common Cathode; Model: 3911AH; Application: Widely used in home appliances, instruments, car accessories, etc. Also good for DIY and experiment Common Cathode: 1-6; Digital Display: 1 Digit; Digital Number: 1 Bit 7 Segment; Emitted Color: Red Pin Number: 10; Continuous Forward Current: 20mA; Average Forward Voltage: 2V; Power Consumption: 36mW. Convenient to use, it can be driven under such low voltage, low current conditions. Luminous Intensity: 11mcd; Screen Size: 0.4 inch; Number Height: 0.4 inch; Panel Size: 13 x 10 x 7mm / 0.51" x 0.39" x 0.28" (L*W*H) Total Size: 13 x 10 x 13.9mm / 0.51" x 0.39" x 0.55" (L*W*H); Material: Plastic, Metal; Color: Black, White;

Package Content

10 x LED Digital Display Tube；Notice: It is recommended to use constant current not constant voltage, constant voltage will cause uneven brightness. ›
