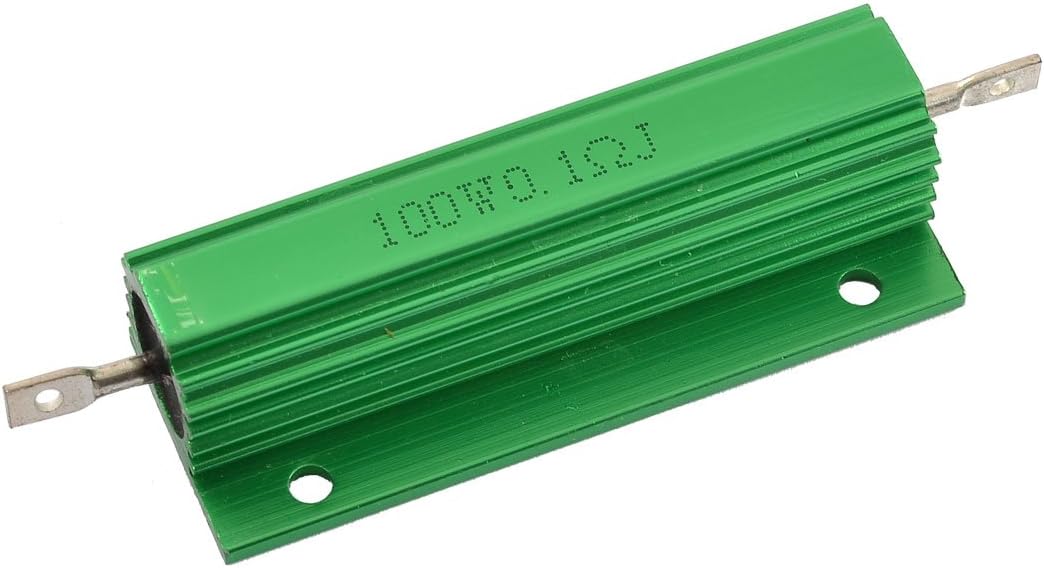

Chassis Mounted 100W Watt 0.1 Ohm Aluminum Case Wirewound Resistor

Key Features

• Product Name Aluminum Housed Resistor;Resistance Value 0.1 Ohm;Power Rating 100W
• Resistance Tolerance 5% (J);Body Size 59 x 15mm/ 2.3" x 0.6" (L*D)
• Mounted Hole Size 3.3mm/0.129";Total Size 82 x 21 x 17mm/ 3.2" x 0.8" x 0.7" (L*W*T)
• Casing Material Aluminum;Color Green
• Weight 30g;Package Content 1 x Aluminum Housed Resistor

Product Description

Aluminum housing for heat dissipation, suitable for cooling plate installation. Small size, high power load, standard and non-inductive winding types. High insulating capacity, good performance in vibration. Multiple connection modes, easy to install. Widely used in power supply, transducer, elevator, and high requirement equipment industry.
