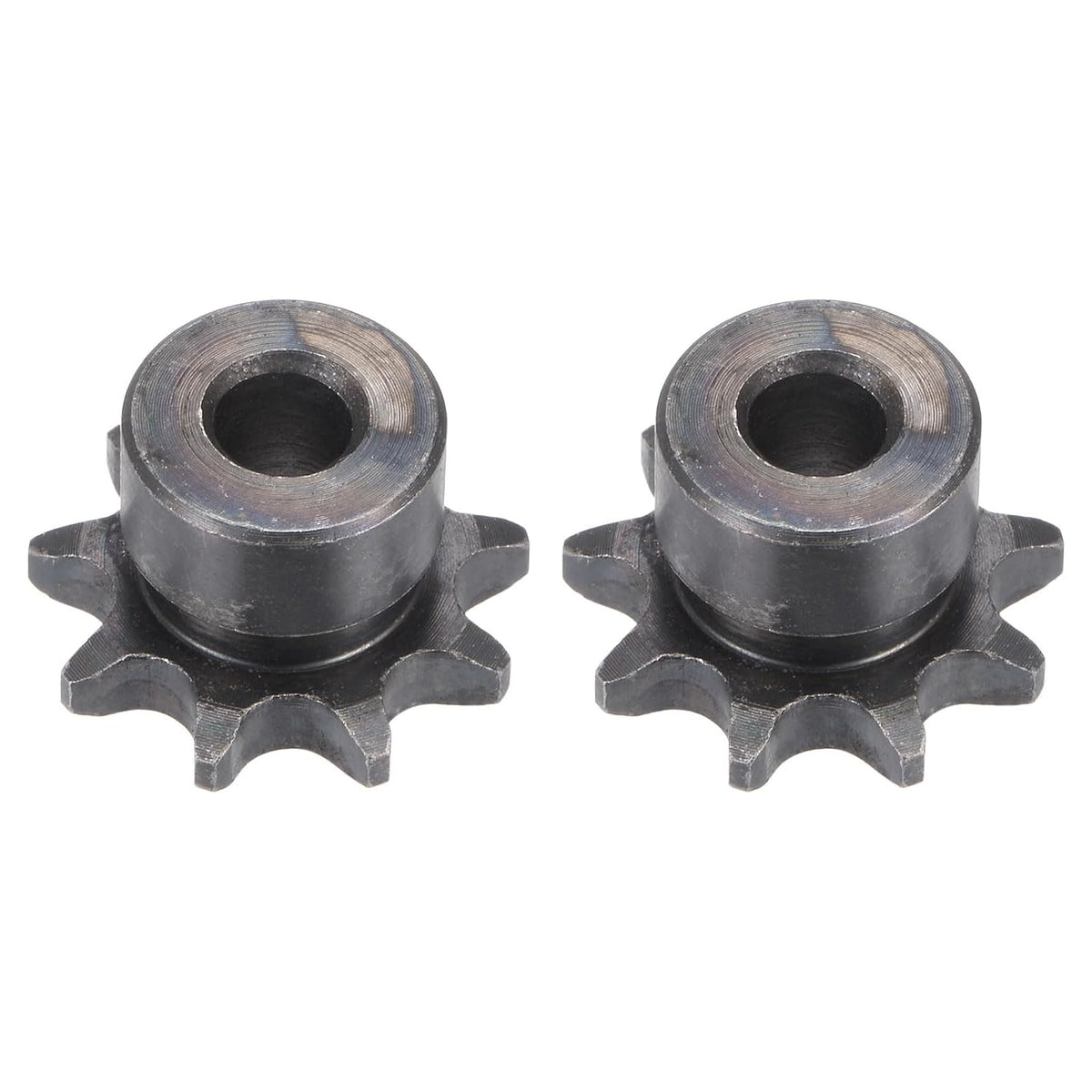

Chain Roller Sprocket, 8mm Bore 3/8" Pitch 9 Tooth Single Strand Type B Chain Sprocket, A3 Carbon Steel Roller Chain Sprocket for ISO 06B Chain, 2Pcs

Key Features

• Specifications Material A3 carbon steel, Hardness 58-60HRC, Number of Teeth 9, Outside Diameter 30mm / 1.18-inch, Bump Width 9mm / 0.35-inch, Total Width 18mm / 0.71-inch, Bore Diameter 8mm / 0.31-inch, Pitch 3/8" / 9.525mm, Tooth Width 5mm / 0.2-inch, 2 x Chain Sprocket
• Chain Sprockets are normally mounted in a fixed position on a fixed shaft. This sprocket has a hub extension on one side to provide stability. The shaft can be fixed well, which is convenient to use.
• The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain sprocket comes with strong teeth that can latch onto the chain. It is suggested that chain sprockets have at least three teeth in mesh with the chain.
• The product is made of A3 carbon steel. High-frequency quenching treatment of teeth, the surface hardness, wear resistance are significantly improved. The part without quenching retains the original toughness and is easy to further process. It can be processed into different inner diameter sizes according to the requirements of use.
• Widely used in milling machine, drilling machine or other machinery transmission occasions.

Product Description

Features

1. Chain Sprockets are normally mounted in a fixed position on a fixed shaft. This sprocket has a hub extension on one side to provide stability. The shaft can be fixed well, which is convenient to use.2. The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain sprocket comes with strong teeth that can latch onto the chain. It is suggested that chain sprockets have at least three teeth in mesh with the chain.3. The product is made of A3 carbon steel. High-frequency quenching treatment of teeth, the surface hardness, wear resistance are significantly improved. The part without quenching retains the original toughness and is easy to further process. It can be processed into different inner diameter sizes according to the requirements of use.4. Widely used in milling machine, drilling machine or other machinery transmission occasions.

Specifications

Material: A3 carbon steelHardness: 58-60HRCNumber of Teeth: 9Outside Diameter: 30mm / 1.18-inchBump Width: 9mm / 0.35-inchTotal Width: 18mm / 0.71-inchBore Diameter: 8mm / 0.31-inchPitch: 3/8" / 9.525mmTooth Width: 5mm / 0.2-inch

Package Content

2 x Chain Sprocket
