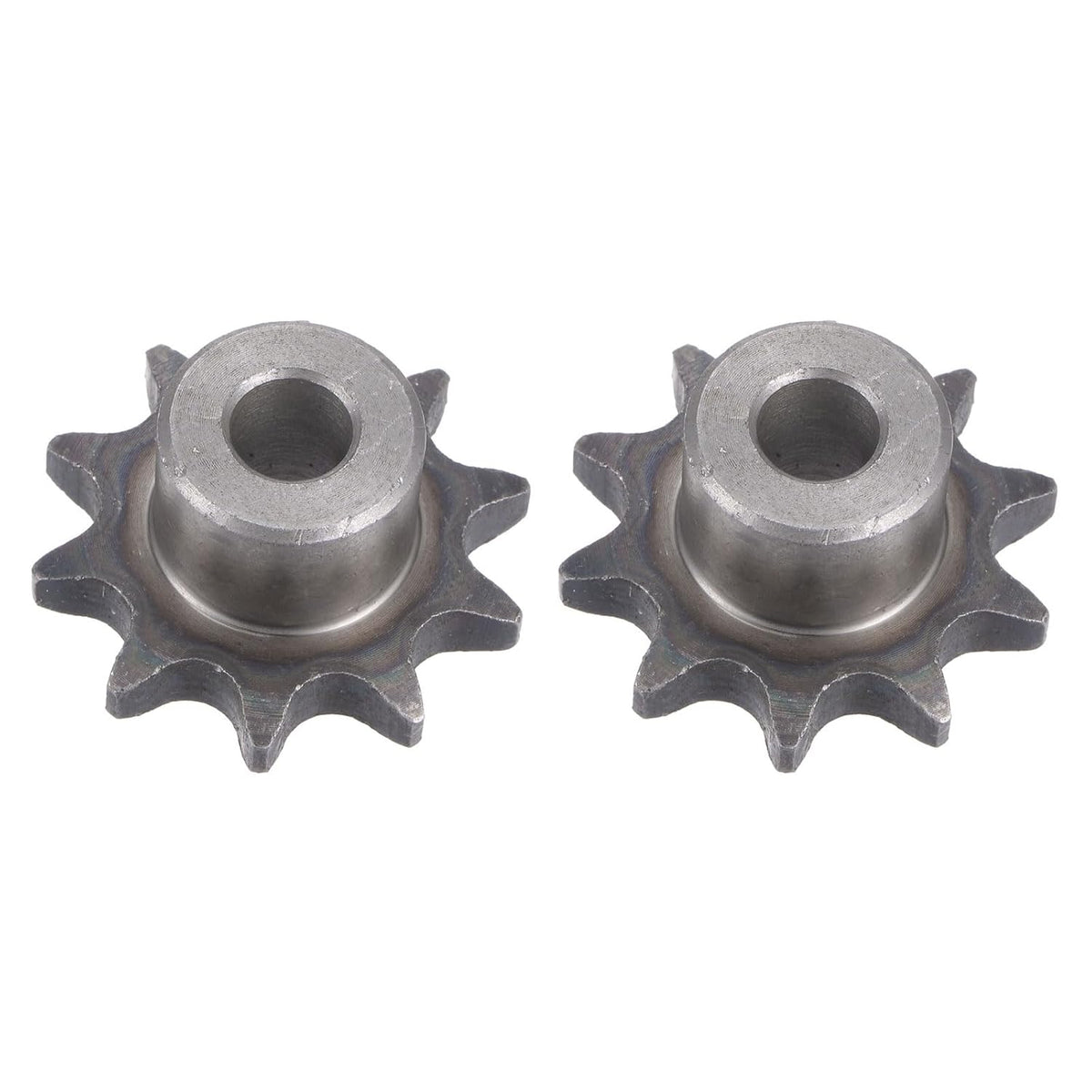

Chain Roller Sprocket, 10mm Bore 1/2" Pitch 10 Tooth Single Strand Type B Chain Sprocket, A3 Carbon Steel Roller Chain Sprocket for ISO 08B Chain, 2Pcs

Key Features

• Specifications Material A3 carbon steel, Hardness 58-60HRC, Number of Teeth 10, Outside Diameter 45mm / 1.77-inch, Bump Width 15mm / 0.59-inch, Total Width 22mm / 0.87-inch, Bore Diameter 10mm / 0.39-inch, Pitch 1/2" / 12.7mm, Tooth Width 7mm / 0.28-inch, 2 x Chain Sprocket
• Chain Sprockets are normally mounted in a fixed position on a fixed shaft. This sprocket has a hub extension on one side to provide stability. The shaft can be fixed well, which is convenient to use.
• The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain sprocket comes with strong teeth that can latch onto the chain. It is suggested that chain sprockets have at least three teeth in mesh with the chain.
• The product is made of A3 carbon steel. High-frequency quenching treatment of teeth, the surface hardness, wear resistance are significantly improved. The part without quenching retains the original toughness and is easy to further process. It can be processed into different inner diameter sizes according to the requirements of use.
• Widely used in milling machine, drilling machine or other machinery transmission occasions.

Product Description

Features

1. Chain Sprockets are normally mounted in a fixed position on a fixed shaft. This sprocket has a hub extension on one side to provide stability. The shaft can be fixed well, which is convenient to use.2. The chain sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain sprocket comes with strong teeth that can latch onto the chain. It is suggested that chain sprockets have at least three teeth in mesh with the chain.3. The product is made of A3 carbon steel. High-frequency quenching treatment of teeth, the surface hardness, wear resistance are significantly improved. The part without quenching retains the original toughness and is easy to further process. It can be processed into different inner diameter sizes according to the requirements of use.4. Widely used in milling machine, drilling machine or other machinery transmission occasions.

Specifications

Material: A3 carbon steelHardness: 58-60HRCNumber of Teeth: 10Outside Diameter: 45mm / 1.77-inchBump Width: 15mm / 0.59-inchTotal Width: 22mm / 0.87-inchBore Diameter: 10mm / 0.39-inchPitch: 1/2" / 12.7mmTooth Width: 7mm / 0.28-inch

Package Content

2 x Chain Sprocket
