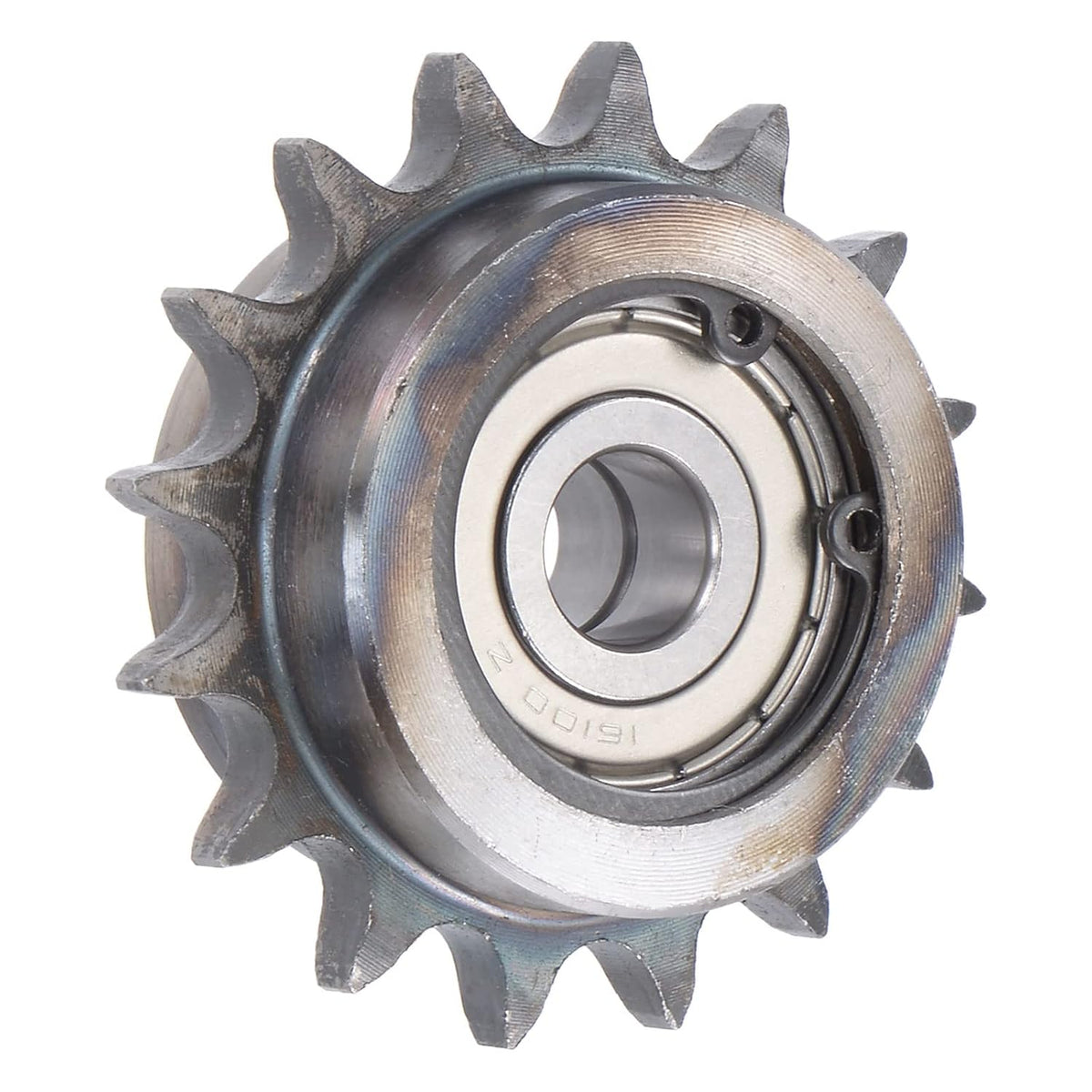

Chain Idler Sprocket, 10mm Bore 3/8" Pitch 16 Tooth Tensioner, Black Oxide Finish C45 Carbon Steel with Insert Double Bearing for ISO 06B Chains

Key Features

• Specifications Number of Teeth 16; Bearing Model 16100Z; Outside Diameter 53mm / 2.09-inch; Bump Width 8mm / 0.31-inch; Total Width 22mm / 0.87-inch; Bore Diameter 10mm / 0.39-inch; Pitch 3/8-inch / 9.525mm; Tooth Width 5mm / 0.2-inch; 1 x Idler Sprocket
• Idler sprocket is a flat sprocket, with double sealed bearing that allows the sprocket to rotate freely. Idler sprockets are normally mounted in a fixed position on a fixed shaft.
• The product is made of c45 carbon steel, the tooth part high temperature quenching heat treatment, high hardness, wear resistance, long service life, easy to use.
• The Idler sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain idler sprocket comes with strong teeth that can latch onto the chain. It is suggested that idler sprockets have at least three teeth in mesh with the chain.
• Widely used in milling machine, drilling machine or other machinery transmission occasions.

Product Description

Specifications

Number of Teeth: 16; Bearing Model: 16100Z; Outside Diameter: 53mm / 2.09-inch; Bump Width: 8mm / 0.31-inch; Total Width: 22mm / 0.87-inch; Bore Diameter: 10mm / 0.39-inch; Pitch: 3/8-inch / 9.525mm; Tooth Width: 5mm / 0.2-inch; 1 x Idler Sprocket Idler sprocket is a flat sprocket, with double sealed bearing that allows the sprocket to rotate freely. Idler sprockets are normally mounted in a fixed position on a fixed shaft. The product is made of c45 carbon steel, the tooth part high temperature quenching heat treatment, high hardness, wear resistance, long service life, easy to use. The Idler sprocket should not rotate at a greater speed than is allowable for drive sprockets of the same size. Every roller chain idler sprocket comes with strong teeth that can latch onto the chain. It is suggested that idler sprockets have at least three teeth in mesh with the chain. Widely used in milling machine, drilling machine or other machinery transmission occasions. ›
