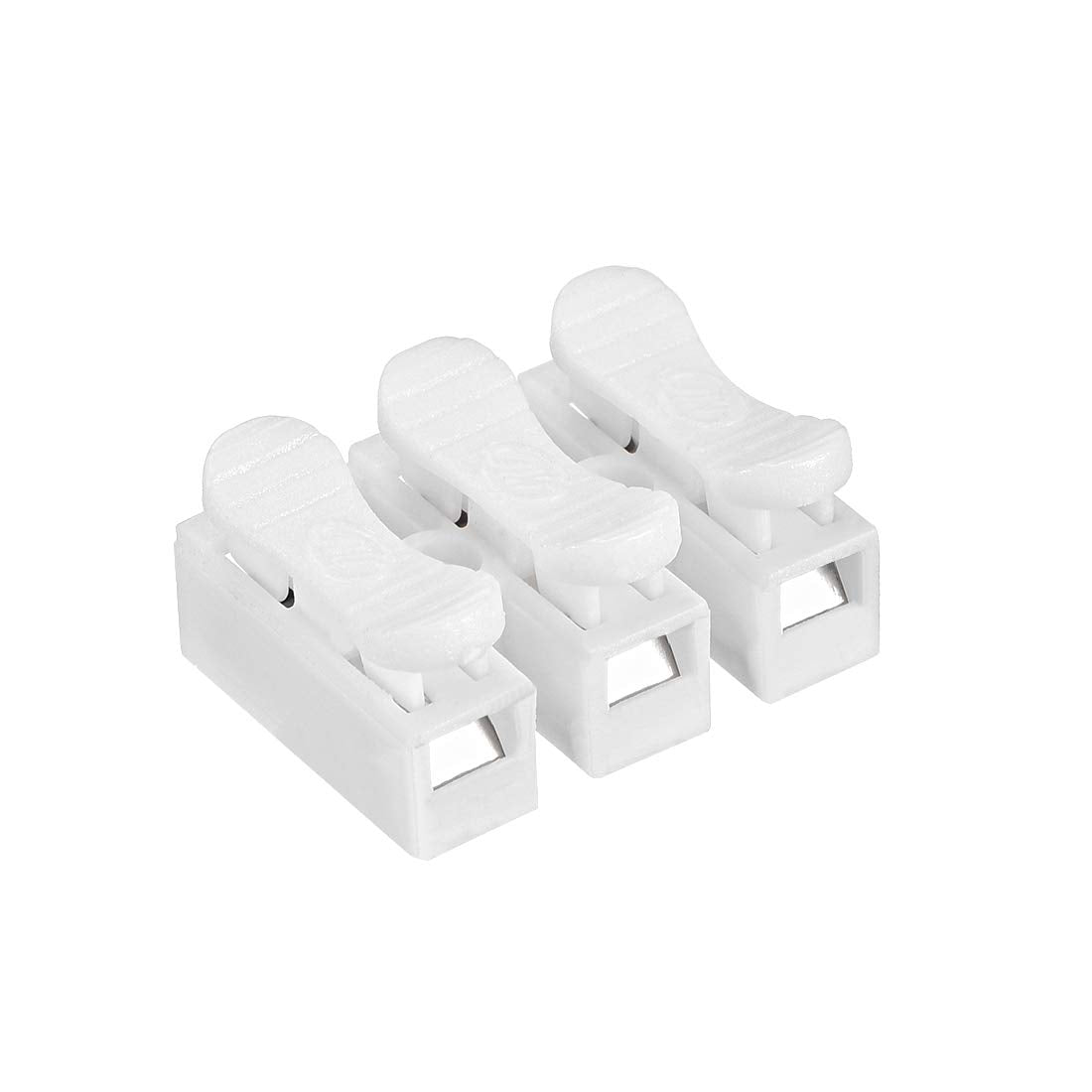

CH3 Spring Wire Connectors Quick Cable Connector Press Type Terminal Barrier Block 30pcs

Key Features

• Product Name Spring Wire Connectors; Rated Voltage & Current 250V, 6A; Model CH-3 (3 Positions)
• INDEPENDENT DESIGN. No interference, using insulation flame retardant material and stainless steel circlip structure, avoiding wires fall off , arcing, dustproof and moisture-proof.
• NO TOOLS REQUIRED. Saving time and effort. Hold down the item and press the terminal and put the peeled wires into the terminal, finally loose hands and finish the connection.
• MULTIPURPOSE. Widely used in lighting, power and wiring, motor, electrical control, household appliances,machinery and wire joints.
• NOTICE Please use it in the rated range. Do not connect high power electrical.

Product Description

Descriptions

1.MARK OF THE CONNECTOR. The N is neutral wire, L is live wiring.2.INDEPENDENT DESIGN. No interference, using insulation flame retardant material and stainless steel circlip structure, avoiding wires fall off, so that the copper conductor of the exposed wire is sealed in the plastic. Avoid arcing, dustproof , moisture-proof.3.NO TOOLS REQUIRED. Simple operation, saving time and effort. Hold down the item and press the terminal, and then put the peeled wires into the terminal, finally loose hands and finish the connection.4.MULTIPURPOSE. Widely used in lighting, power and wiring, motor, electrical control, household appliances,machinery and wire joints.5.NOTICE: Please use it in the rated range. Do not connect high power electrical. Installation:1. Press the spring clip.2. Insert wires.(The wires stripped of the outer skin are all inserted into the holes. Can't be exposed).3. Release the press clip. Specification:Product Name: Spring Wire ConnectorsModel: CH-3 (3 Positions)Color: WhiteInsulator Material: PPContact Material: Manganese SteelRated Voltage &Current: 250V, 6ASuitable for Wire Diameter: 0.5-2.5 Square MillimetersScrew Hole Diameter: M3Total Size: 22 x 17 x 11mm / 0.87 x 0.67 x 0.43inch(L*W*H)Package include: 30pcs x Spring Wire Connectors
