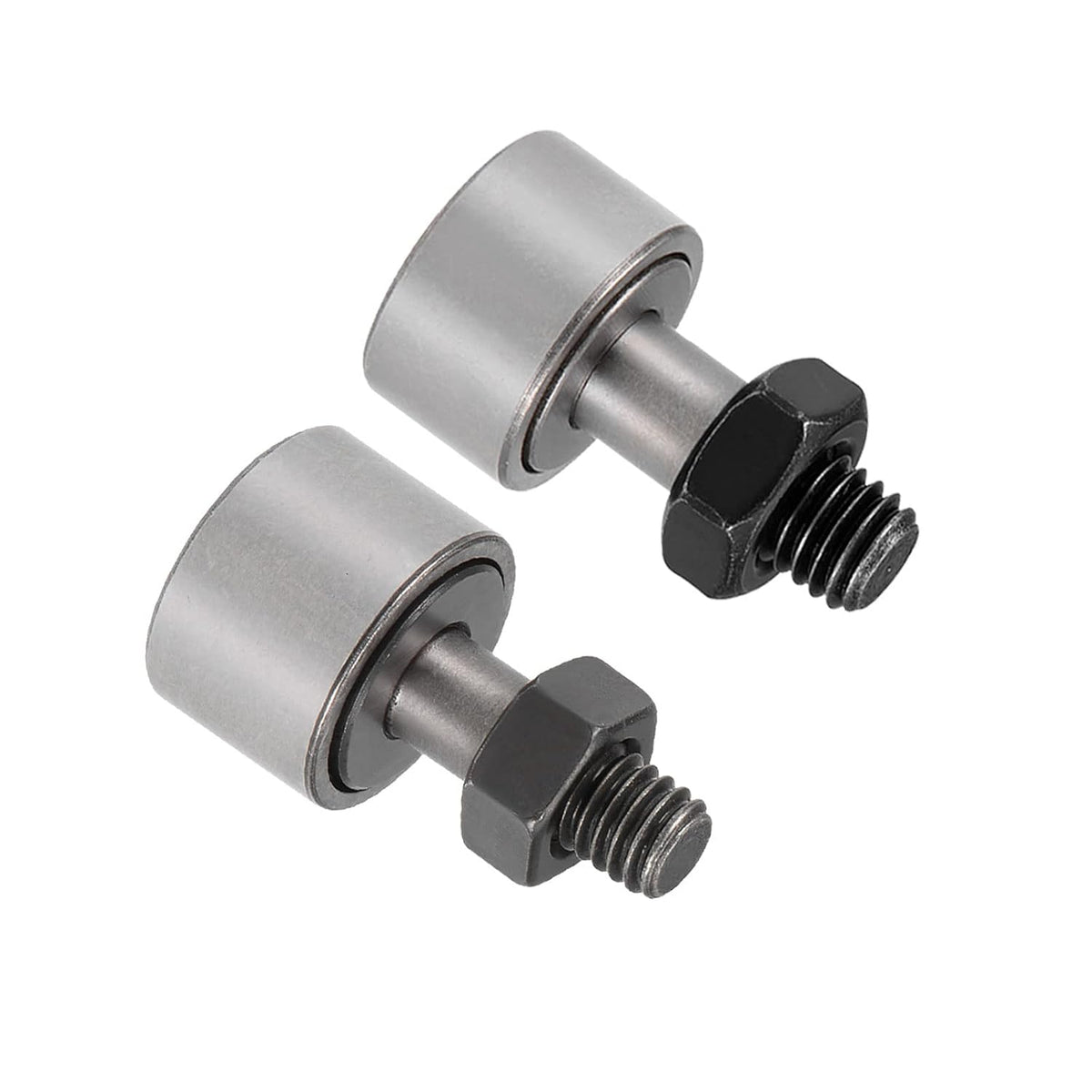

CF8 CF6 Cam Follower KR19 KR16 Needle Roller Bearing, 19mm 16mm Roller Diameter, 11mm Roller Width, M8 M6 Standard Stud 4pcs

Key Features

• Features Roller Diameter 19mm, 16mm; Roller Width 11mm; Stud Diameter 8mm, 6mm; Stud Length 20mm, 16mm; Thread Size M8x1.25mm, M6x1.0mm; Thread Length 10mm, 8mm; Overall Length (Max.) 32.2mm, 28.2mm
• Cam follower with needle rollers supports high static and dynamic loads in cam- and track-type applications
• Made of high rigidity bearing steel, more durable and longer working life
• Solid sealed. Preventing the entry of foreign matters like dust, this would extend the life of needle roller bearing
• It particularly suitable for the occasions when the radial space is limited

Product Description

Description

-A cam follower, also known as a track follower, is a specialized type of roller or needle bearing designed to follow cam lobe profiles. -The thick-walled outer ring enables high radial loads, while reducing distortion and bending stresses.-The stud type follower replaced using a standard bearing and bolt. They are easier to use and could also handle higher loads.-Cam followers bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.-Cam followers are used as a guide roller for cam mechanisms or linear motion.Specification:Roller Diameter: 19mm, 16mmRoller Width: 11mmStud Diameter: 8mm, 6mmStud Length: 20mm, 16mmThread Size: M8x1.25mm, M6x1.0mmThread Length: 10mm, 8mmOverall Length (Max.): 32.2mm, 28.2mm

Package Content

2pcs x CF8 Cam Follower KR19 Needle Roller Bearing2pcs x CF6 Cam Follower KR16 Needle Roller Bearing
