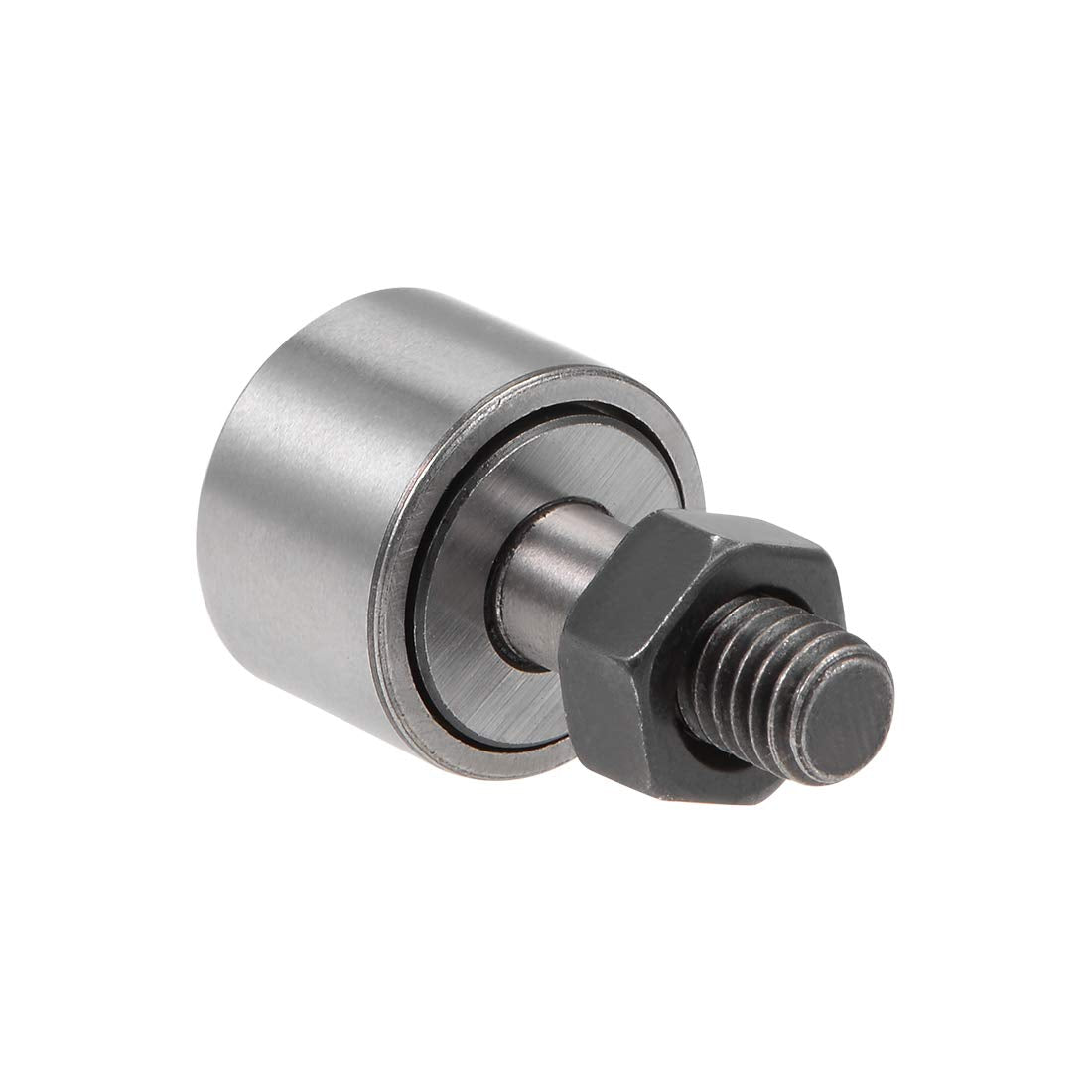

CF6 Cam Follower KR16 Needle Roller Bearing, 16mm Roller Diameter, 11mm Roller Width, M6 Standard Stud

Key Features

• CF6 (KR16) (Roller Dia. 16mm; Roller Width 11mm; Stud Diameter 6mm; Thread Size M6x1.0mm)
• Cam follower with needle rollers supports high static and dynamic loads in cam- and track-type applications
• Made of high rigidity bearing steel, more durable and longer working life
• Solid sealed. Preventing the entry of foreign matters like dust, this would extend the life of needle roller bearing
• It particularly suitable for the occasions when the radial space is limited

Product Description

Description

-A cam follower, also known as a track follower, is a specialized type of roller or needle bearing designed to follow cam lobe profiles. -The thick-walled outer ring enables high radial loads, while reducing distortion and bending stresses.-The stud type follower replaced using a standard bearing and bolt. They are easier to use and could also handle higher loads.-Cam followers bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.-Cam followers are used as a guide roller for cam mechanisms or linear motion. Specification：Model: CF6 (KR16)Bearing Material: GCr15 SteelCage Material: Mild SteelRoller Diameter: 16mmRoller Width: 11mmStud Diameter: 6mmStud Length: 16mmThread Size: M6x1.0mmThread Length: 8mmOverall Length (Max.): 28.2mmDynamic Load Rating (Cr): 0.27kNStatic Load Rating (Cor): 0.17kNLimited Speed: 25000 rpm
