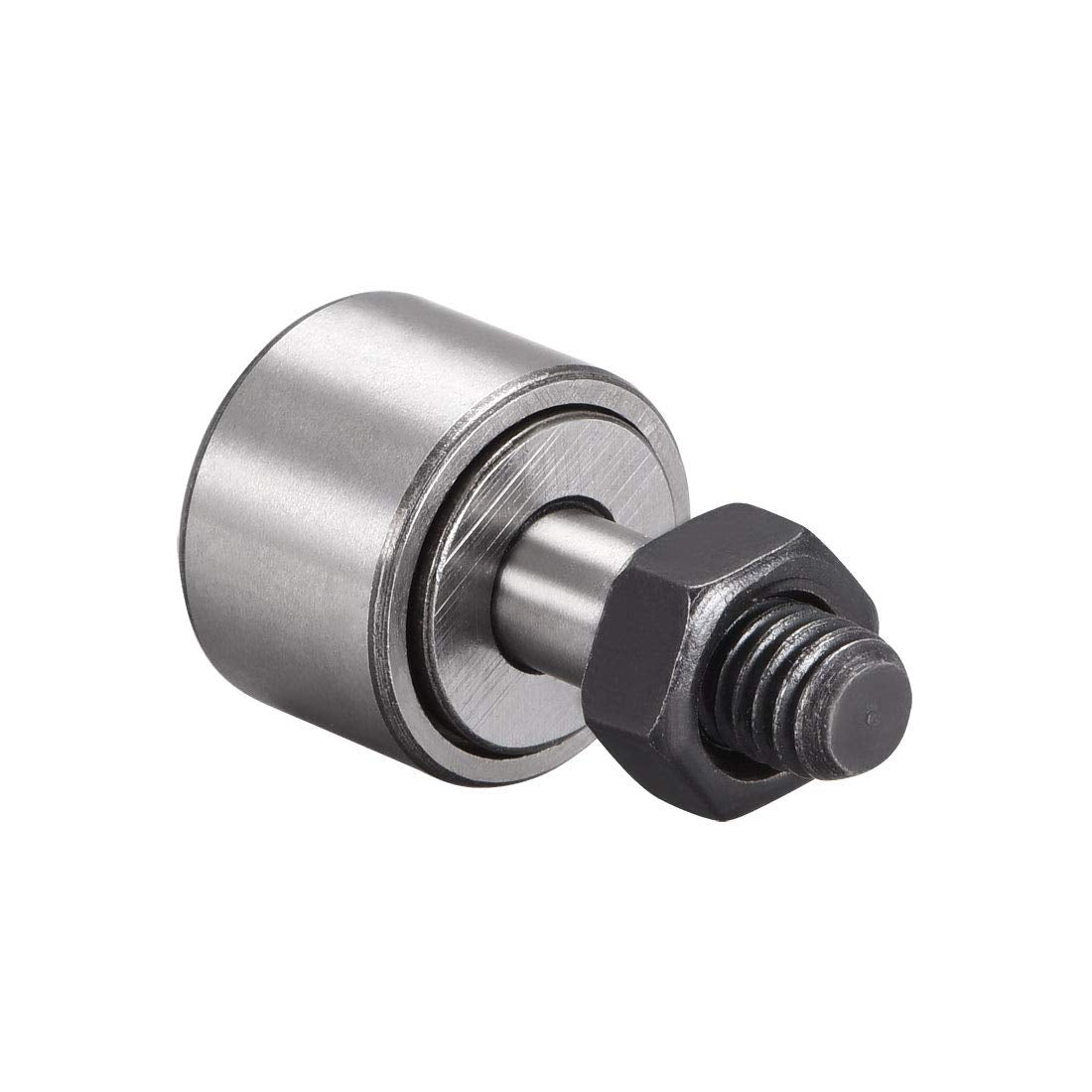

CF6 Cam Fllower Bearing 16mm Diameter Stud Type Track Needle Roller Bearings KR16 M6x1mm Thread

Key Features

• CF6(KR16). 16mm diameter and 28.2mm in length, the thread size is M6x1mm. Standard shape and size make the installation easier.
• The bearing made of GCr15 steel, and the cage part is mild steel. Premium materials enhanced the performance of corrosion resistance and stability.
• High load capacity. 270kgf on Dynamic Load Rating (Cr), 170kgf Static Load Rating (Cor). The limited speed goes to 25000 rpm.
• Solid sealed. Preventing the entry of foreign matters like dust, this would extend the life of needle roller bearing.
• Application. Cam Followers bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.

Product Description

CF6 Cam Fllower Needle Roller Bearing. Cam Followers Bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.Model: CF6 or KR16Outside Diameter: 16mmScrew Thread Size: M6x1mmOverall Length: 28.2mmBearing Thickgfess: 12.2mmDynamic Load Rating (Cr): 270kgfStatic Load Rating (Cor): 170kgfLimited Speed: 25000 rpmBearing Material: GCr15 SteelCage Material: Mild SteelWeight: 23g

Package Content

1 pcs CF6 Cam Fllower Needle Roller Bearing

Specifications
