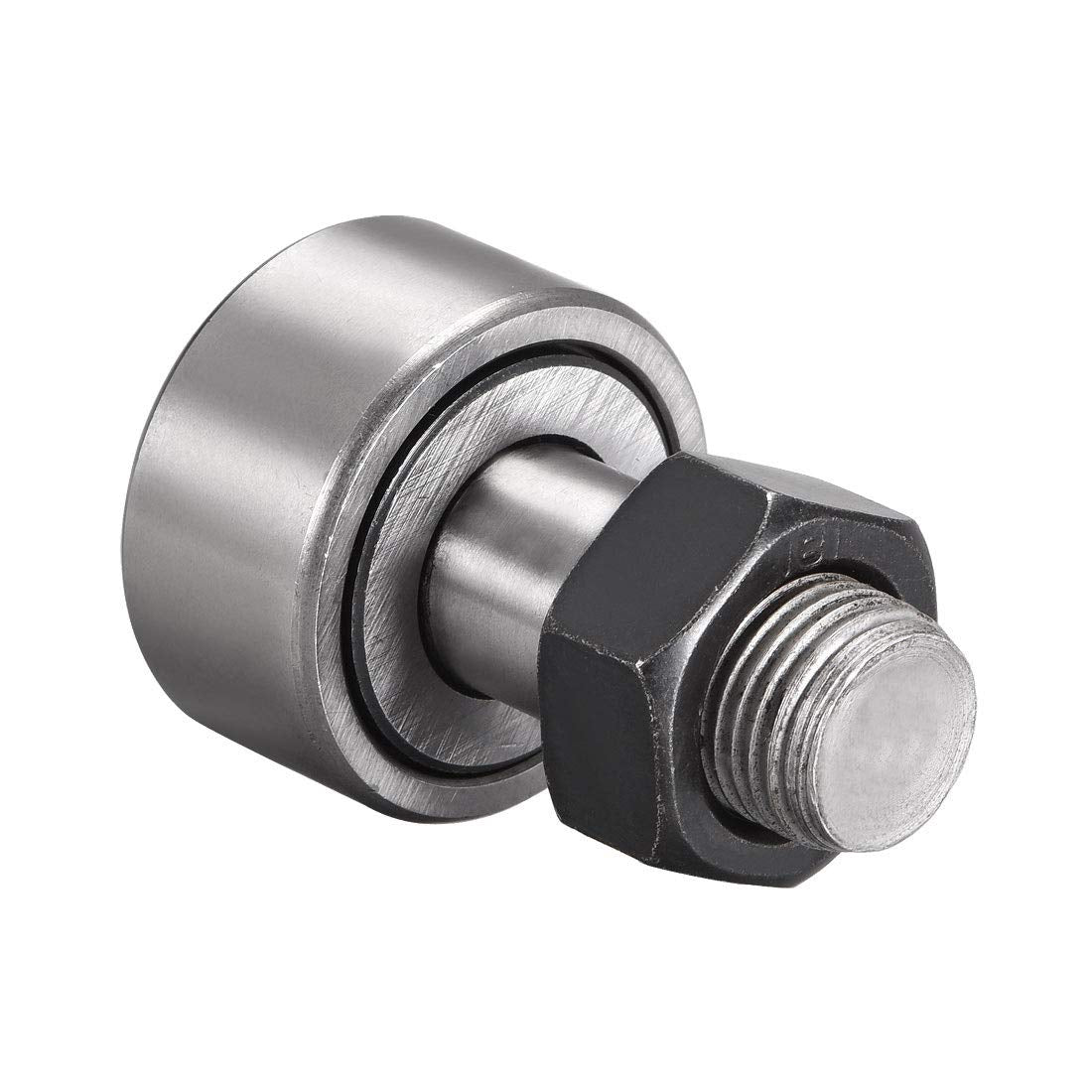

CF16 Cam Fllower Bearing 35mm Diameter Stud Type Track Needle Roller Bearings KR35 M16x1.5mm Thread

Key Features

• CF16(KR35). 35mm diameter and 52.1mm in length, the thread size is M16x1.5mm. Standard shape and size make the installation easier.
• The bearing made of GCr15 steel, and the cage part is mild steel. Premium materials enhanced the performance of corrosion resistance and stability.
• High load capacity. 850kgf on Dynamic Load Rating (Cr), 760kgf Static Load Rating (Cor). The limited speed goes to 10000 rpm.
• Solid sealed. Preventing the entry of foreign matters like dust, this would extend the life of needle roller bearing.
• Application. Cam Followers bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.

Product Description

CF16 Cam Fllower Needle Roller Bearing. Cam Followers Bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.Model: CF16 or KR35Outside Diameter: 35mmScrew Thread Size: M16x1.5mmOverall Length: 52.1mmBearing Thickgfess: 19.6mmDynamic Load Rating (Cr): 850kgfStatic Load Rating (Cor): 760kgfLimited Speed: 10000 rpmBearing Material: GCr15 SteelCage Material: Mild SteelWeight: 195g

Package Content

1 pcs CF16 Cam Fllower Needle Roller Bearing

Specifications
