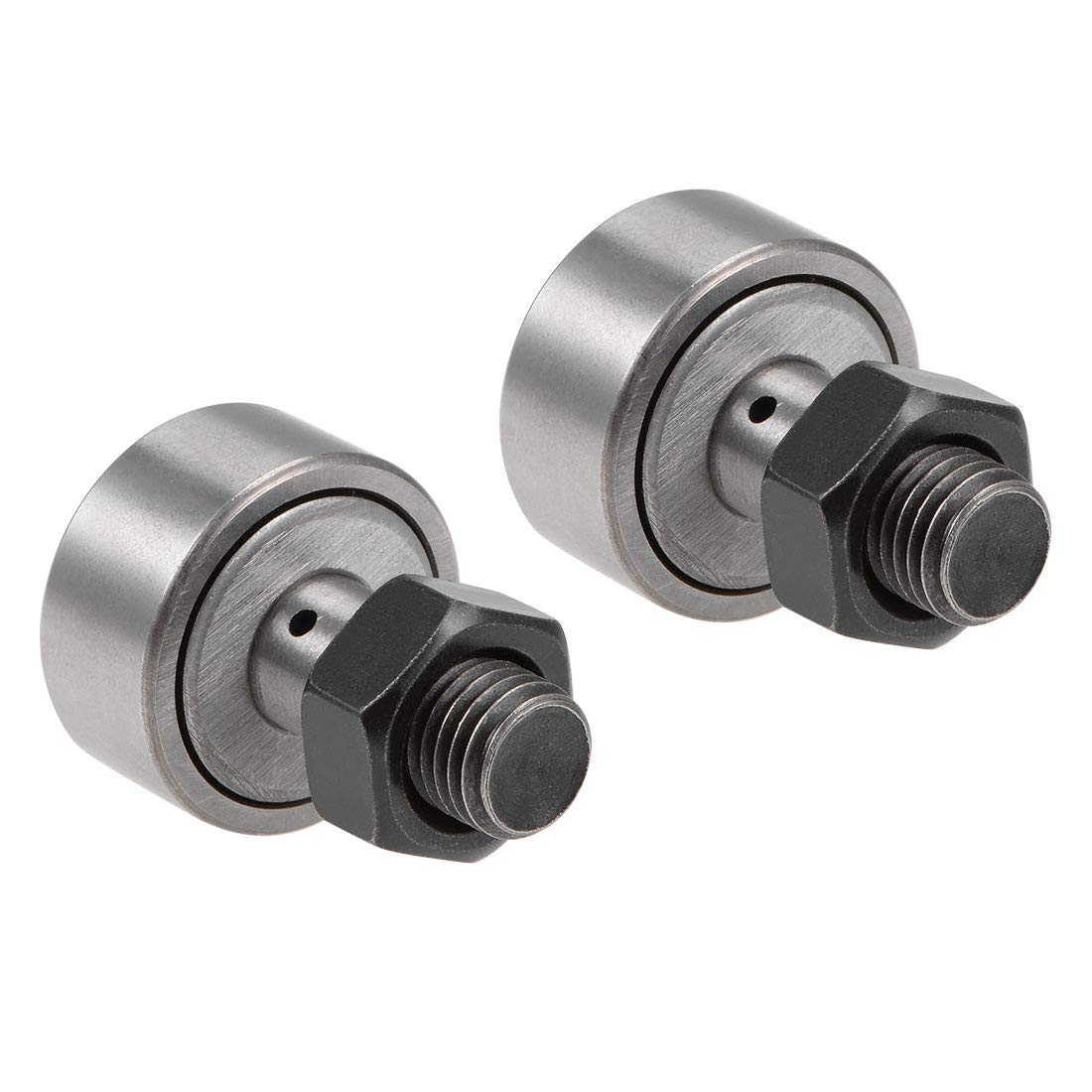

CF12 Cam Follower KR30 Needle Roller Bearing, 30mm Roller Diameter, 14mm Roller Width, M12 Standard Stud 2pcs

Key Features

• CF12 (KR30) (Roller Dia. 30mm; Roller Width 14mm; Stud Diameter 12mm; Thread Size M12x1.5mm)
• Cam follower with needle rollers supports high static and dynamic loads in cam- and track-type applications
• Made of high rigidity bearing steel, more durable and longer working life
• Solid sealed. Preventing the entry of foreign matters like dust, this would extend the life of needle roller bearing
• It particularly suitable for the occasions when the radial space is limited

Product Description

Description

-A cam follower, also known as a track follower, is a specialized type of roller or needle bearing designed to follow cam lobe profiles. -The thick-walled outer ring enables high radial loads, while reducing distortion and bending stresses.-The stud type follower replaced using a standard bearing and bolt. They are easier to use and could also handle higher loads.-Cam followers bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.-Cam followers are used as a guide roller for cam mechanisms or linear motion. Specification： Model: CF12 (KR30)Bearing Material: GCr15 SteelCage Material: Mild SteelRoller Diameter: 30mmRoller Width: 14mmStud Diameter: 12mmStud Length: 25mmThread Size: M12x1.5mmThread Length: 13mmOverall Length (Max.): 40.2mmDynamic Load Rating (Cr): 0.59kNStatic Load Rating (Cor): 0.45kNLimited Speed: 14000 rpm
