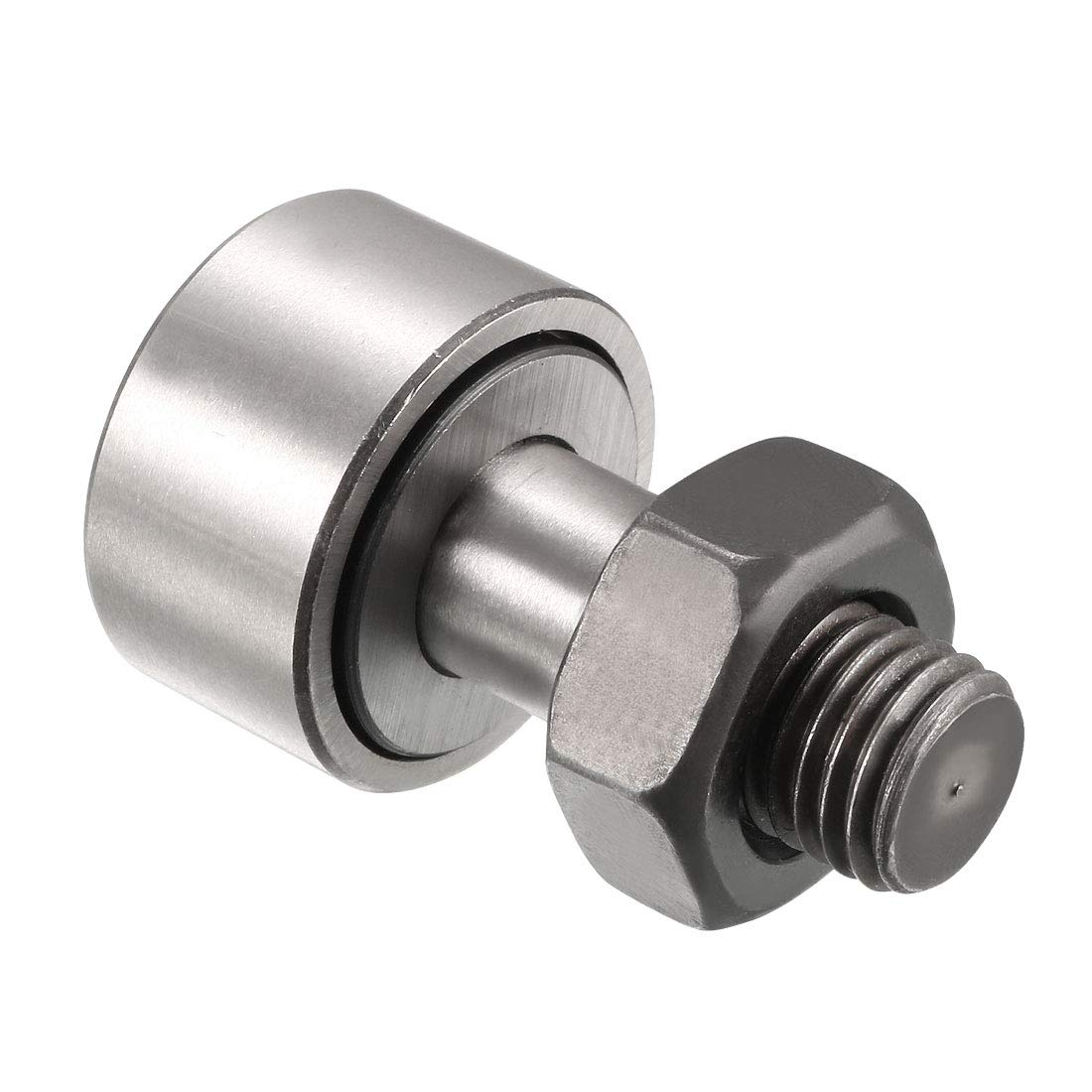

CF10 Cam Follower KR22 Needle Roller Bearing, 22mm Roller Diameter, 12mm Roller Width, M10 Standard Stud

Key Features

• CF10 (KR22) (Roller Dia. 22mm; Roller Width 12mm; Stud Diameter 10mm; Thread Size M10x1.25mm)
• Cam follower with needle rollers supports high static and dynamic loads in cam- and track-type applications
• Made of high rigidity bearing steel, more durable and longer working life
• Solid sealed. Preventing the entry of foreign matters like dust, this would extend the life of needle roller bearing
• It particularly suitable for the occasions when the radial space is limited

Product Description

Description

-A cam follower, also known as a track follower, is a specialized type of roller or needle bearing designed to follow cam lobe profiles. -The thick-walled outer ring enables high radial loads, while reducing distortion and bending stresses.-The stud type follower replaced using a standard bearing and bolt. They are easier to use and could also handle higher loads.-Cam followers bearings have high rigidity and accuracy as follower bearings for the cam mechanism and straight line movement, and they are used in a broad range of fields such as machine tools, industrial robots, electronic parts machinery.-Cam followers are used as a guide roller for cam mechanisms or linear motion. Specification:Model: CF10 (KR22)Bearing Material: GCr15 SteelCage Material: Mild SteelRoller Diameter: 22mmRoller Width: 12mmStud Diameter: 10mmStud Length: 23mmThread Size: M10x1.25mmThread Length: 12mmOverall Length (Max.): 36.2mmDynamic Load Rating (Cr): 4.02kNStatic Load Rating (Cor): 3.14kNLimited Speed: 17000 rpm
