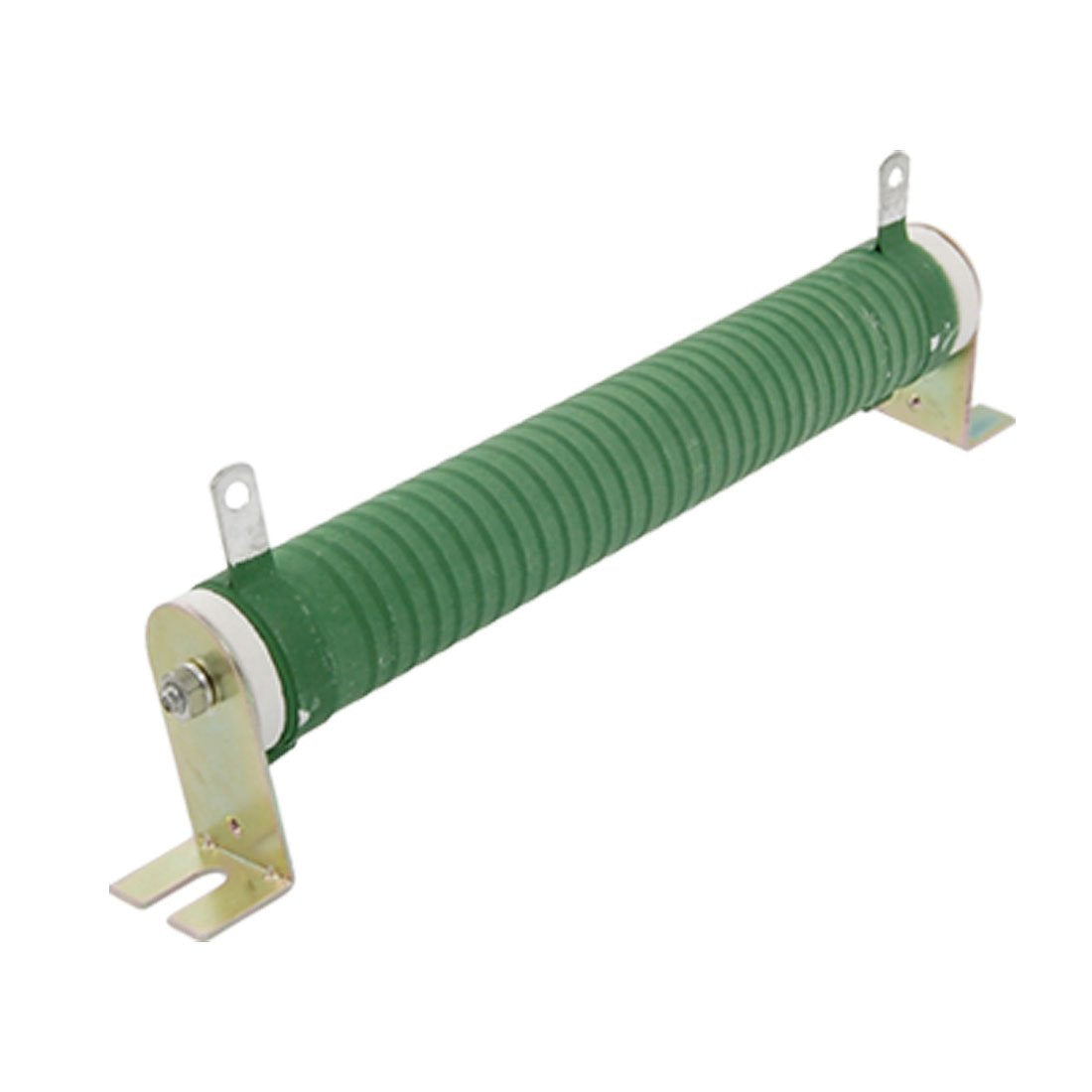

Ceramic Tube 100W 15 Ohm Wire Wound Resistor 100 Watt

Key Features

• Product Name Wire Wound Resistor;Type Fixed Type;Rated Power 100W
• Resistance 15 Ω;Resistance Tolerance ±5% (J);Material Metal, Ceramic
• Installing Hole Size 4mm/ 0.15"(Dia);14 x 6mm/ 0.551" x 0.236"(L*W) 14 x 6mm/ 0.551" x 0.236"(L*W);Tube Diameter 28mm/ 1.1"
• Total Size 22 x 2.7 x 6.5cm/ 8.6" x1.1" x 2.5"(L*W*H);Color As Picture Shown
• Weight 188g;Package Content 1 x Wire Wound Resistor

Product Description

Metal wire is wound on the ceramic tube coated with non-flammable material, good dissipation, high stability and long life. This fixed wire wound resistor is widely used in power supply, transducer, elevator, arena audio and high requirement equipment industry.

Specifications
