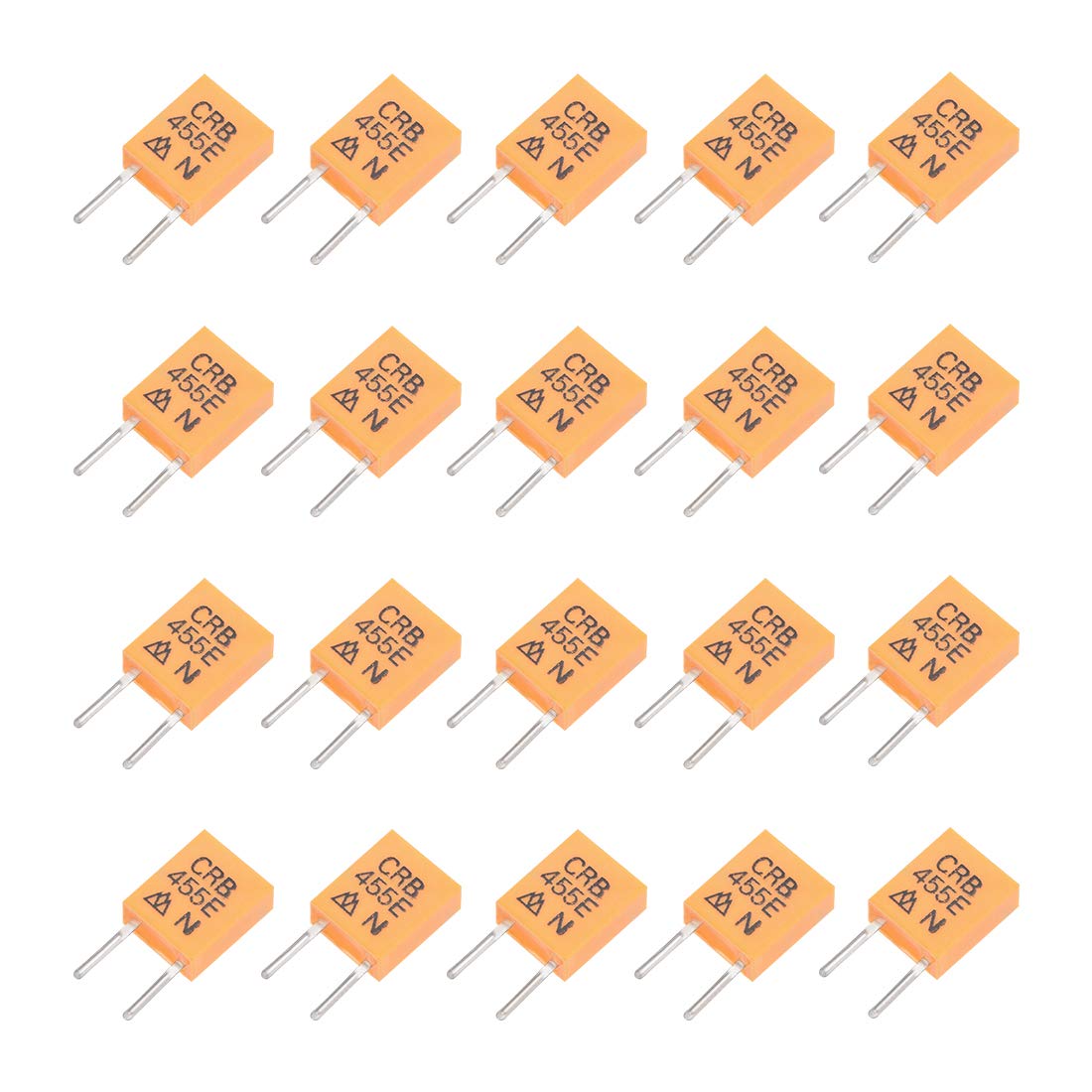

Ceramic Resonator Crystal Oscillator 455KHz 2 Pins DIP, Orange 20 Pieces

Key Features

• [Parameter] - Output Frequency 455KHz; Mounting Type DIP
• [Dimension] - Number of Pins 2; Pin Length 4mm; Pin Distance 5mm; Working Temperature Range -40℃~85℃ / -40℉~185℉
• [Connection] - The oscillation takes place across 2 of the pins (connections). The third pin (if present; typically the center pin) is connected to ground.
• [Main Function] - Used in oscillators like generating the clock signal used to control timing in computers and other digital logic devices.
• [Wide Application] - Widely used in timing circuitry, such as TV, VCR, electronic devices, telephones, copiers, cameras, voice synthesizers, communication equipment, remote controls.

Product Description

Feature:The oscillation takes place across 2 of the pins (connections). The third pin (if present; typically the center pin) is connected to ground.They are used in oscillators like generating the clock signal used to control timing in computers and other digital logic devices.Ceramic resonators are widely used in timing circuitry, such as TV, VCR, electronic devices, telephones, copiers, cameras, voice synthesizers, communication equipment, remote controls.

Specifications

Mounting Type: DIPNumber of Pins: 2Pin Length : 4mm / 0.15 inchPin Distance: 5mm / 0.2 inchCapacitance: 15pFOutput Frequency: 455KHzTotal Size: 15.5x7.5x3.5mm / 0.6x0.3x0.13 inch (L*W*H)Working Temperature Range: -40℃ to 85℃ / -40℉ to 185℉Package Contents:20 x Ceramic Oscillators
