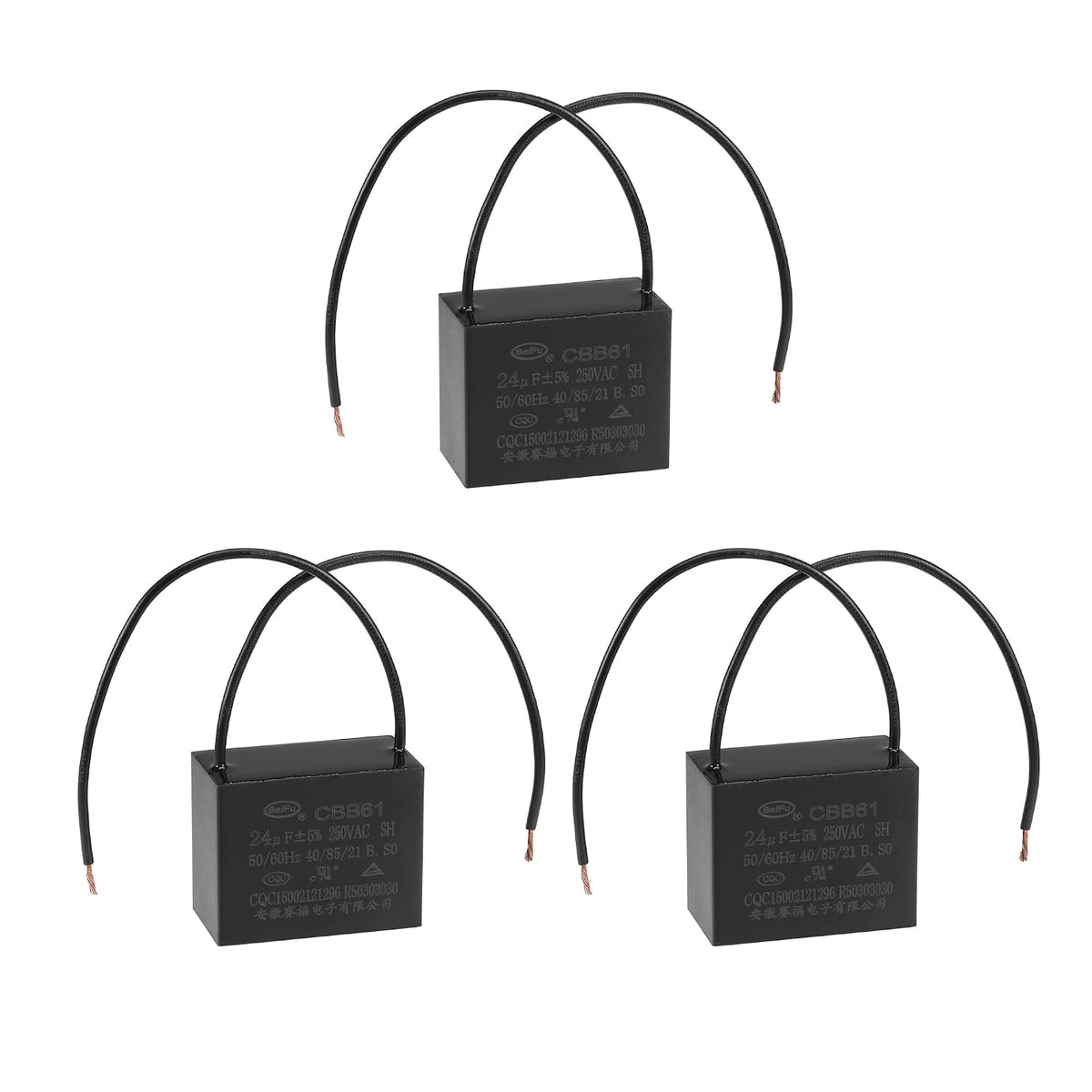

Ceiling Fan Capacitor CBB61 24uF 250V AC 2 Wires Metallized Polypropylene Film Capacitor 48x38x26mm for Electric Fan Pump Motor Generator 3Pcs

Key Features

• [Material] - Made of metallized polypropylene film sheet with plastic shell
• [Specification] -Rated Capacity 24uF; Tolerance ±5%; Rated Voltage 250V AC; Cover Size 48x38x26mm / 1.9x1.5x1inch; Rated Frequency 50/60Hz; Climatic Category 40/85/21
• [Working Environment] - This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system
• [Application] - The CBB61 capacitor is widely used for ceiling fan, wall fan, stand fan, industrial fan, range hood fan, air exchange fan, water pump, motor, generator, etc
• [Note] - If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one

Product Description

Features

This CBB61 run capacitor has low loss, excellent electrical performance and long service life.The CBB61 capacitor is widely used for ceiling fan, wall fan, stand fan, industrial fan, range hood fan, air exchange fan, water pump, motor, generator, etc.

Note

This capacitor has no positive and negative poles, it can be wired at will.If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one.

Specifications

Model: CBB61Material: Polypropylene Film, Plastic ShellLead End: 2 WiresTolerance: ±5%Rated Capacity: 24uFRated Voltage: 250V ACRated Frequency: 50/60HzClimatic Category: 40/85/21Wire Length: 150mm / 5.9 inchHole Diameter: 4.5mm / 0.2 inchShell Size: 48x38x26mm / 1.9x1.5x1 inchWire Color: Black

Package Includes

3 x CBB61 Capacitor
