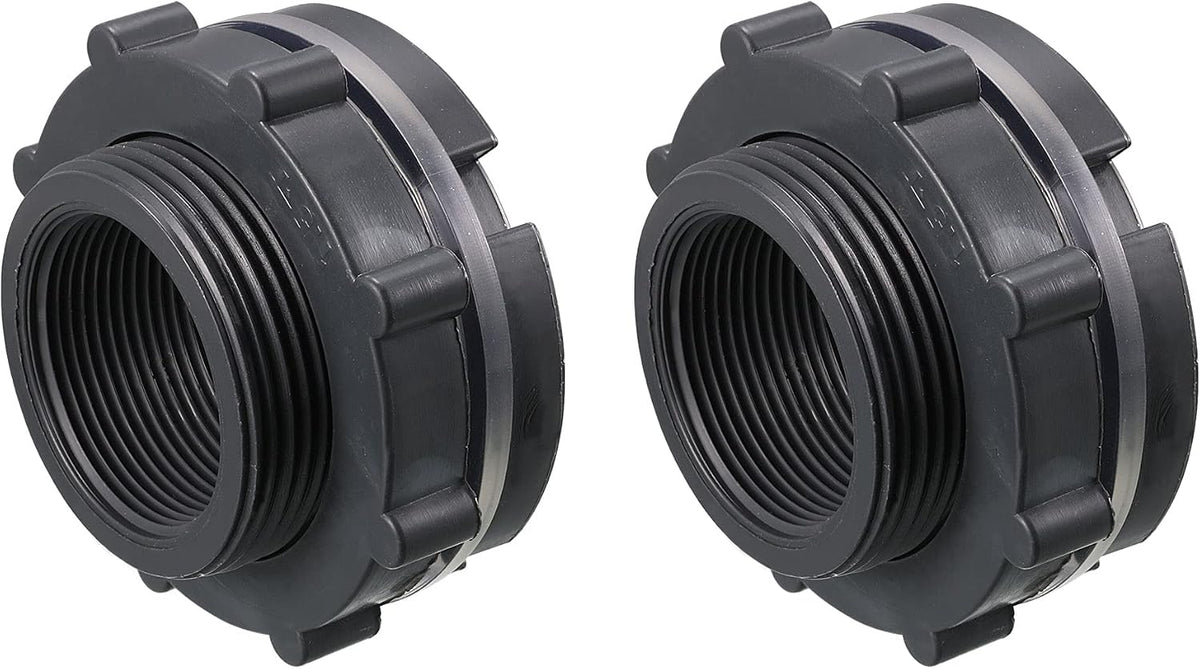

Bulkhead Fitting, G1-1/2 Female, Tube Adaptor Pipe Fitting with Silicone Gasket, for Water Tanks, PVC, Gray, Pack of 2

Key Features

• [Size] - Female Thread Diameter(Approx) 44.5mm / 1.75 Inch (G1-1/2 Thread); Male Thread Diameter 63mm / 2.48 Inch; Overall Height 47mm / 1.85 Inch; Fitting for Wall Thickness 16mm / 0.63 Inch
• [Material] - Made of PVC, has good strength and corrosion resistance.
• [Easy to Install] - Provides easy and quick installation with no special tools required.
• [Silicone Gasket] - Using thread linking to make the connection more firmly, not easy to leak with the silicone gasket.
• [Applications] - Widely used on water towers, water inlet and outlet, and self-made water tank, which can be used for various pipes, faucets, hoses, fittings, etc.

Product Description

Features

1. Made of PVC, has good strength and corrosion resistance.2. Using thread linking to make the connection more firmly, not easy to leak with the silicone gasket.3. Provides easy and quick installation with no special tools required.4. Widely used on water towers, water inlet and outlet, and self-made water tank, which can be used for various pipes, faucets, hoses, fittings, etc.

Specifications

Fitting for Wall Thickness: 16mm / 0.63 InchFemale Thread Diameter(Approx): 44.5mm / 1.75 Inch (G1-1/2 Thread)Male Thread Diameter(Left-Hand Thread): 63mm / 2.48 InchNut Max Diameter: 96mm / 3.78 InchBase Diameter: 87mm / 3.43 InchOverall Height: 47mm / 1.85 InchSilicone Gasket Size: 86x5.5mm / 3.39x0.22 (ODxT)Material: PVCColor: Gray

Package Content

2 x Bulkhead Fitting2 x Silicone Gasket
