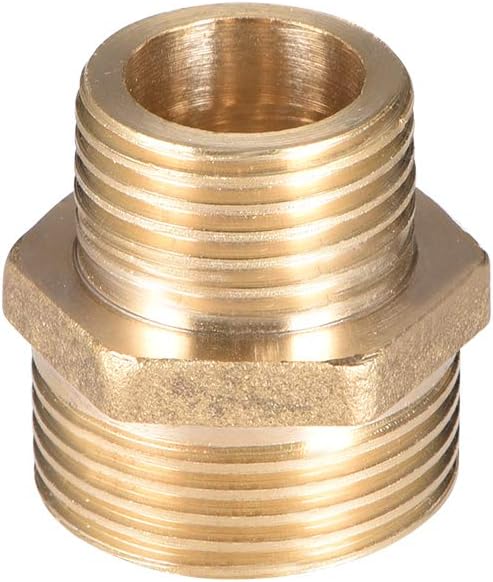

Brass Male to Male Straight Pipe Reducing Hex Fitting G1/2 x G3/4 Male Connector

Key Features

• Brass fitting for connecting two female threaded pipes ; Thread Size G1/2 to G3/4 Male Pipe(The G1/2 Male OD Approx 20.9mm, The G3/4 Male OD Approx 25.7mm)
• Operating temperatures range from -53 to 121 degrees C (-65 to 250 degrees F) ; Pressure Resistance range from 0 to 1.6 Mpa
• MATERIAL. This Brass pipe fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
• ADVANTAGE.brass fitting has male G threads for connecting to female threaded pipes, creating a tighter seal than straight threads.
• APPLICATION.Brass hex pipe fitting Can be used to connect various pipes, such as air pipe, fuel pipe, water pipe, etc.

Product Description

Specification：Product Name : Brass FittingMaterial : BrassNet Weight : 42gColor : Gold TonePressure Resistance : 0-1.6 MpaOperating temperature range : -53 to 121 degrees CType : Straight G Thread Brass FittingEach Side Thread Length (approx) : 9.5mm / 0.37"Thread Size : G1/2 to G3/4 Male Pipe(The G1/2 Male OD Approx 20.9mm, The G3/4 Male OD Approx 25.7mm) Total Size : 28mm x 26mm /1.1" x 1.02" (L x W)

Package Content

1pcs x Brass Fitting

Description

1.Reducing hex pipe for connecting two threaded pipes with different diameters (G1/2 and G3/4 male threads)2.The hex fitting is a short length of pipe with threaded ends for connecting threaded pipes, and it has a hexagonal section in the middle for an increased bearing surface when adjusting the fitting with a wrench.3.It has male threads for connecting to female threaded pipes, creating a tighter seal than straight threads.4.This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.5.Can be used to connect various pipes, such as air pipe, fuel pipe, water pipe, etc.

Note

Before ordering, please confirm the right size.
