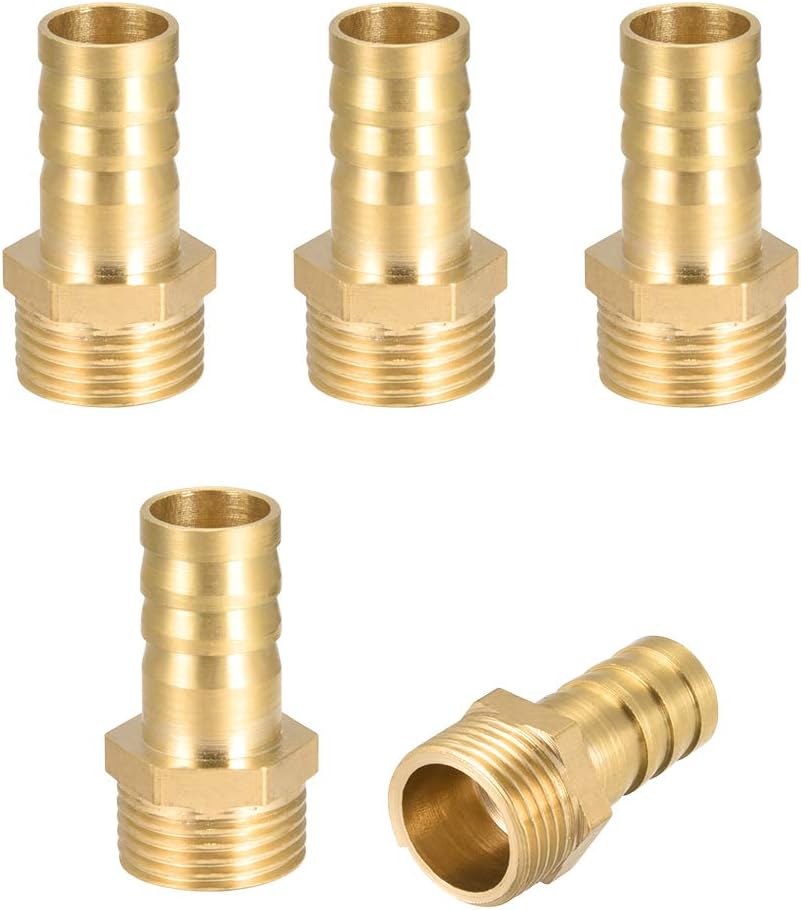

Brass Hose Barb Fitting,Connector,12mm Barb x G3/8 Male Pipe Adapter,5Pcs

Key Features

• ►【UNIVERSAL DESIGN】- Fit Hose Inner Dia 12mm Barb; Male Thread Size G3/8(Approx OD 16.6mm)
• ►【FEATURE】- Barbed Fitting connects to hose on one end and has a a Female Connector on the other
• ►【 MATERIAL】- Male straight barb Fitting made of brass, brass has corrosion resistance, ductility at high temperatures, and low magnetic permeability
• ►【ADVANTAGE】- Brass hose fitting's threading allows for a tight seal. Barbed edges provide positive connection.
• ►【APPLICATION】- Hose Barb fitting use with hose clamp or crimp type ferrule (sold separately)

Product Description

Description

1.One piece construction. Barbed edges provide positive connection.2.32 degree to 200 degree F temperature range.3.Barb size is hose inner diameter.4.The barbed stems create a tight seal on flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (not included).5.This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.6.Commonly used to connect lines for air, water, fuel, oil and inert gases in a quick and simple way. Specification:Product Name: Barb Hose FittingMaterial: BrassBarb OD: 12mm / 0.47-inchMale Thread Size: G3/8(Approx OD 16.6mm)Total Size: 32mm x 18mm /1.3-inch x 0.71-inch (L*D)Thread Length: 6.7mm / 0.26-inchBarb Length: 20.1mm / 0.79-inchColor: Gold ToneWeight:61g

Package Content

5 x Barb Hose Fitting

Note

Before ordering, please confirm the right size!

Specifications
