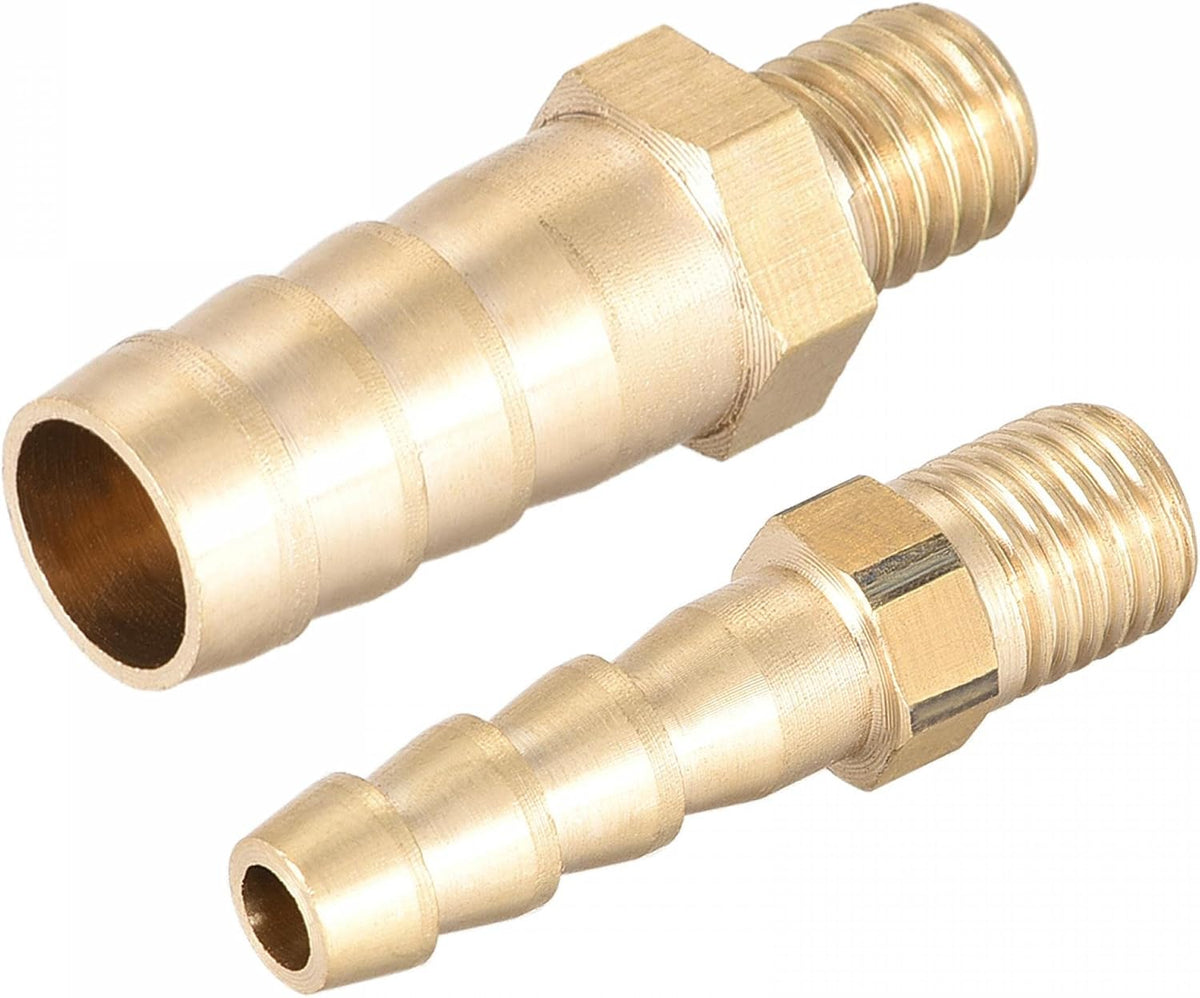

Brass Fitting Connector Metric M8-1 Male to Barb Fit Hose ID 6mm 10mm 2pcs

Key Features

• Type1 - Size 6mm Barb x M8*1 Male; Total Length 30mm / 1.18"; Hex Width 8mm / 0.31"; Barb Length(Approx) 20mm / 0.79"; Thread Length(Approx) 8mm / 0.31"
• Type2 - Size 10mm Barb x M8*1 Male; Total Length 33mm / 1.3"; Hex Width 11mm / 0.43"; Barb Length(Approx) 20mm / 0.79"; Thread Length(Approx) 9mm / 0.35"
• Advantage - The barbed stems create a tight seal on the flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (not included).
• Material - Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.
• Application - Commonly used to connect lines for air, water, fuel, oil and inert gases in a quick and simple way.

Product Description

Description

1. One side is used to connect hoses while the other side is used to connect to metric female pipes.2. The barbed stems create a tight seal on the flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (not included).3. Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.4. Commonly used to connect lines for air, water, fuel, oil and inert gases in a quick and simple way.Specification:Product Name: Barb Hose FittingMaterial: BrassColor: Gold ToneSurface Treatment: PassivationSize1: 6mm Barb x M8*1 MaleTotal Length: 30mm / 1.18"Hex Width: 8mm / 0.31"Barb Length(Approx): 20mm / 0.79"Thread Length(Approx): 8mm / 0.31"Size2: 10mm Barb x M8*1 MaleTotal Length: 33mm / 1.3"Hex Width: 11mm / 0.43"Barb Length(Approx): 20mm / 0.79"Thread Length(Approx): 9mm / 0.35"

Package Content

2 x Barb Hose Fitting(Each size has 1 piece)
