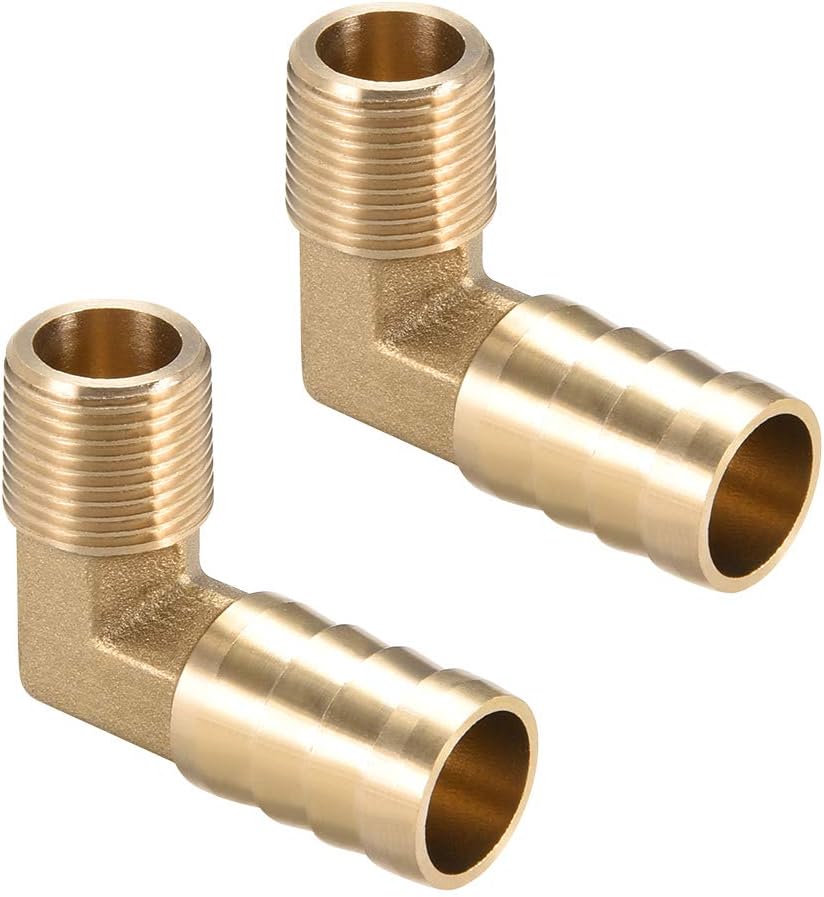

Brass Barb Hose Fitting, 90 Degree Elbow 16mm Barbed to 3/8PT Male Pipe Adapter Connector 2pcs

Key Features

• Product Name Barb Hose Fitting; Size 16mm Barb x 3/8PT Male
• 90 Degree elbow for connecting hose to threaded pipe at an angle. Thread allows for a tight seal. Barbed edges provide positive connection.
• Barb is inserted inside the hose. So the outer dia of the barb is nearly equal to the inner dia of the hose. And the other end is an G male connector.
• Commonly used to connect various pneumatic pipes, such as air, water, fuel, oil and inert gases in a quick and simple way.
• Brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.

Product Description

Description

1.One piece construction. Barbed edges provide positive connection.2.32 degree to 200 degree F temperature range.3.The outer dia of the barb is nearly equal to the inner dia of the hose.4.The barbed stems create a tight seal on flexible and semi-rigid hose when used with a hose clamp or crimp sleeve or ferrule (not included).5.This fitting is made of brass for corrosion resistance, ductility at high temperatures, and low magnetic permeability.6.Commonly used to connect various pneumatic pipes, such as air, water, fuel, oil and inert gases in a quick and simple way. Specification:Product Name: Barb Hose FittingMaterial: BrassSize: 16mm Barb x 3/8PT MaleTotal Size: 45 x 35 x 16mm /1.73 x 1.22 x 0.67inch (L*W*H)Thread Length: 14mm / 0.55inchBarb Length: 23mm / 0.91inchColor: Gold Tone

Package Content

2pcs x Barb Hose Fitting

Note

Before ordering, please confirm the right size!
