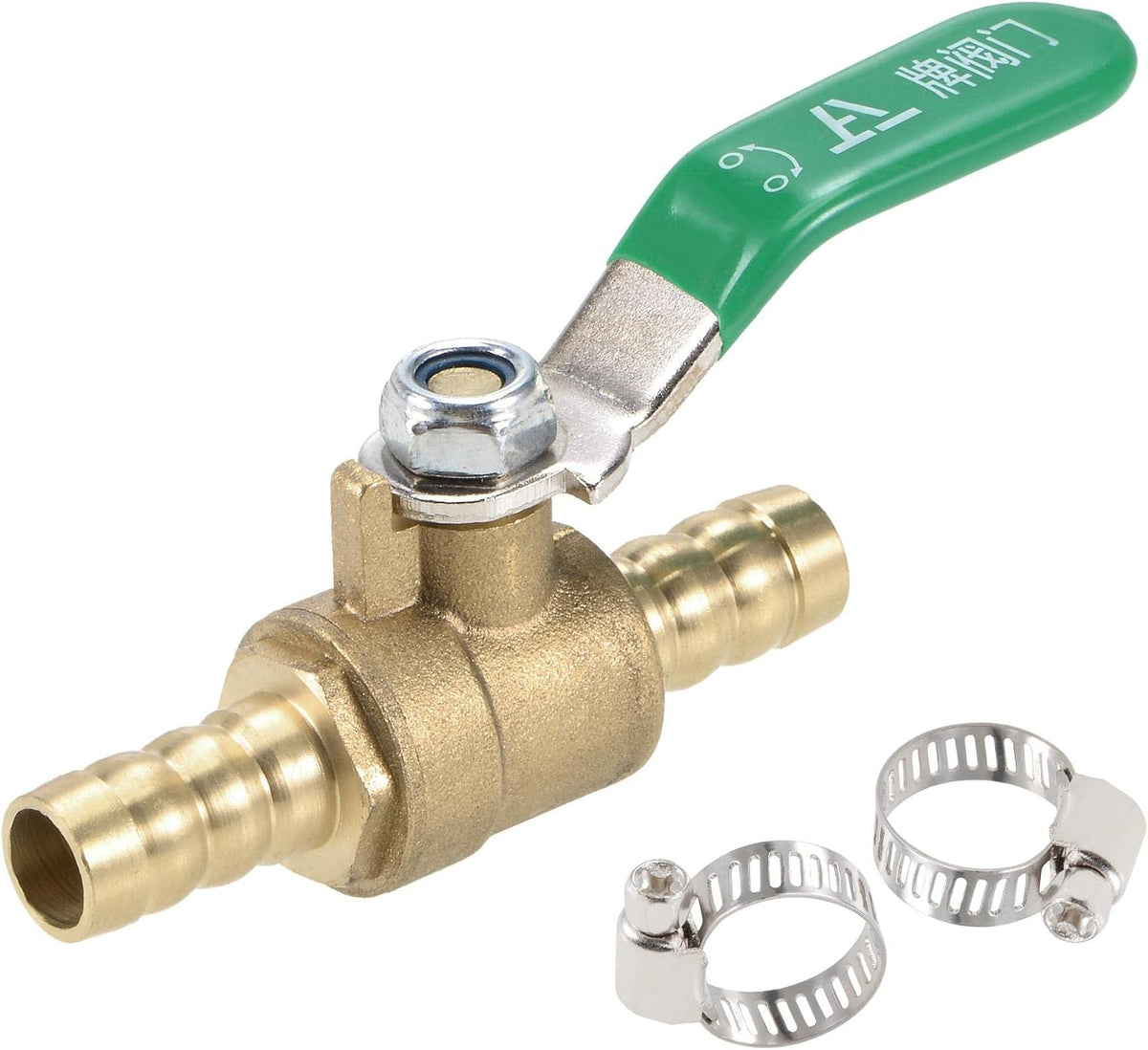

Brass Air Ball Valve Shut Off Switch 10mm Hose Barb to 10mm Hose Barb with Clamps Green Handle

Key Features

• 10mm hose barb x 10mm hose barb ball valve (0.39"). Recommended for pipe with 10mm I.D. (10mm or a little bit smaller) (The mark "1/2" on valves body is the inner size of the valves, not the barb size)
• The ball valves are mainly used for on-off controlling or flow adjustment of water, oil, and gas. Typical usage includes garden irrigation system, piping system, water pump, compressor, oil and gas supplying system, hot and cold water systems
• for all types of tubing. Insert the barb into the tubing, and fix it with a pipe clamp for a tight seal(Clamps are included here).
• If the barb is too large for the tubing, you can dip the tubing into hot water or use a hot air gun. A little bit of heat would help to expand the tubing to fit perfectly
• Constructed of durable and corrosion-resistant brass. Rubber-covered operation handle for non-slip control.

Product Description

Features

Connections: 10mm Hose Barb x 10mm Hose Barb.180 Degree operation handle. Green Plastic-covered lever handle for on/off manual control.Easy Installation in tight working spaces.Used widely in the piping system and gas supplying system.

Specifications

Material: BrassClamp Material: 304 Stainless SteelColor: Brass Tone, GreenTube Size: 60mm x 19mm x 32mm / 2.36" x 0.75" x 1.26"(L*W*H)Hose Barb Length: 18mm / 0.71"Handle Length: 61mm / 2.4"Hose Barb Dia: 10mm / 0.39"Clamp Inner Diameter: 6-12mm / 0.24-0.47"Package Contents: 1 x Ball Valve2 x Clamp
