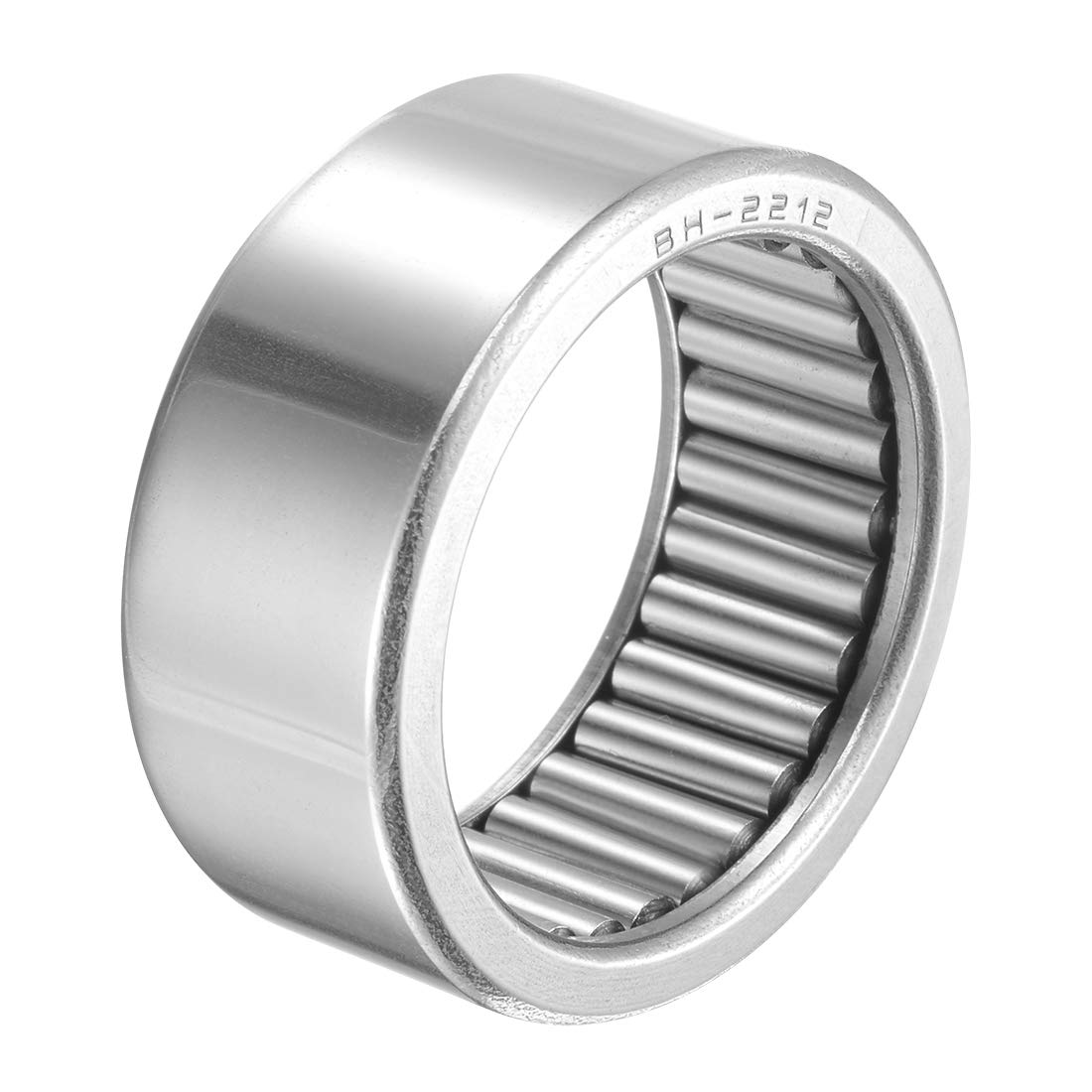

BH2212 Needle Roller Bearings 1-3/8"x1-3/4 x3/4" Open Full Complement Drawn Cup

Key Features

• [SIZE] - Model BH-2212 (I.D. (Fw)= 1-3/8", O.D. (D)= 1-3/4", Width (C)= 3/4")
• [MATERIAL] - Steel Full Complement Drawn Cup, without Cage, Chrome Steel Needle Rollers
• [FEATURES] - The outer ring of needle roller bearing is formed by precision stamping of thin steel plate, the structural space is small, and has a large load capacity
• [CAPABILITY] - Dynamic Load Rating 7770N, Static Load Rating 14100N, Limit Speed 4700RPM
• [APPLICATIONS] - They are suitable for applications where the installation space is restricted and the housing bore can be used as a raceway

Product Description

Specification:Model: BH-2212Drawn Cup Material: SteelNeedle Roller Material: Chromium Steel (GCr15)Accuracy: P0Bore Diameter (Fw): 1-3/8"Outside Diameter (D): 1-3/4"Width: 3/4"Limit Speed: 4700RPMDynamic Load Rating: 7770NStatic Load Rating: 14100NConstruction : Single RowNumber of Pack: 1 Pcs

Description

-They are compact bearings with high load carrying capacity and stiffness.-Suitable for high dynamic loads or radial-limited installation. They are mounted in housings with a tight interference fit.-Used in a variety of applications such as agricultural and construction equipment, pumps and compressors, and two-stroke engines.

Note

Use a press or special tool (not a hammer) for installation, as run out may cause local deformation or brittle breakage.
