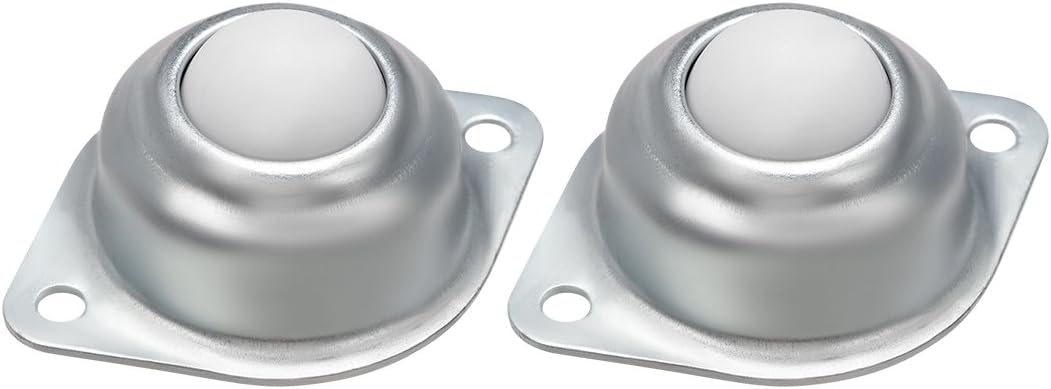

Ball Transfer Units CY-25A Flange Mounted 1-inch Nylon Roller Ball Transfer Bearing Casters 66lb Load Capacity 2 Pcs

Key Features

• SIZE CY-25A 1 inch diameter ball bearing roller, 360 degree rotation.
• CAPACITY With a load bearing capacity of 66 lbs. each.
• MOUNTINGTwo screw holes, Mounting Hole Dia 5mm/0.2-inch.
• PACKAGE 2pcs x Ball Transfer Unit ,screws are not included here.
• APPLICATION Widely used in transportation,transmission system, feeding system, processing system, processing machinery.

Product Description

Description

1.Ball Transfer Unit are omni-directional load-bearing spherical balls mounted inside a restraining fixture.2.360 universal transfer bearings is suitable for curved work created on band saws and router tables.3.1 inch diameter ball bearing roller is perfect. With a load bearing capacity of 66 lbs. each.4.Housing be made of carbon steel material, Roller Ball made from Nylon.5.

Features

Two screw holes in each bearing surround for solid attachment to the worktable or workbench. 6.Widely used in transmission system, feeding system, processing system, processing machinery and packaging machinery auxiliary equipment.

Specifications

*Model: CY-25A*Capacity(Max.): 30kg/66lb*Ball Diameter: 25mm / 1-inch*Mount Hole Dia.: 5mm/0.2-inch*Mount Hole Distance: 55mm/2.17-inch*Material: Carbon Steel, Nylon*Dimension: 70 x 50 x 30mm / 2.76-inch x 1.97-inch x 1.18-inch (L*W*H)

Note

These Ball Transfer Units are used for transporting flat, smooth objects such as trays. It is not suitable for transporting stuff which has uneven or soft bottom surface such as cloth wrapping. It can not be used as swivel caster to move on the floor.

Package Content

*2pcs x Ball Transfer Unit
