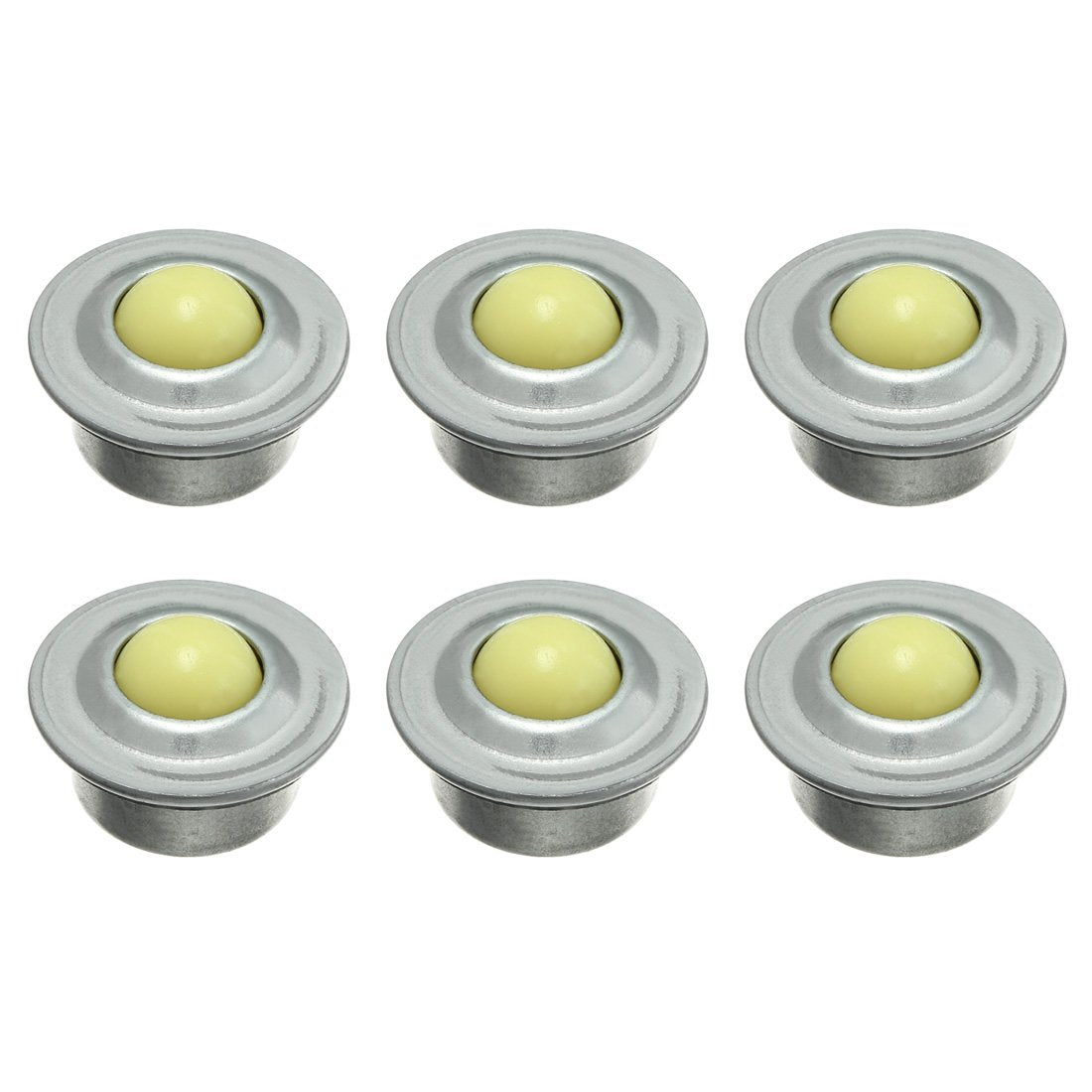

Ball Transfer Bearing Unit 5/8 Inch Load 28Lbs Nylon for Transmission Pack of 6

Key Features

• [Size] - 5/8" diameter ball bearing roller, 360 degree rotation
• [Capacity] - The ball is made of nylon.Support up to 28Lbs/13kg each
• Fixing Diameter 24mm / 0.94"; Overall Size 32.5x21mm / 1.28"x0.83"(Max.D*H)
• [Function] - According to different bearing requirements, the distribution density of the ball transfer units can be set arbitrarily
• [Application] - It is widely used in various transportation,transmission systems, feed systems, processing systems,packaging machinery auxiliary equipment, as well as object turning and confluence. Moreover, it works perfectly for drawer, so that you can roll it out with minimal pull.

Product Description

1.Ball Transfer Unit are omni-directional load-bearing spherical balls mounted inside a restraining fixture.2.360 universal transfer bearings is suitable for curved work created on band saws and router tables.3.5/8 inch diameter ball bearing roller is perfect. With a load bearing capacity of 28.66 lbs. each.4.Housing be made of carbon steel material, Roller Ball made from nylon.5.Widely used in transmission system, feeding system, processing system, processing machinery and packaging machinery auxiliary equipment.SpecificationsProduct Name: Ball Transfer Unit

Package Content

6pcs x Ball Transfer UnitMaterial: Carbon Steel, NylonColor: Silver ToneWeight: 150gModel: CY-15HCapacity(Max.): 13kg/28.66lbBall Diameter: 5/8-inchDimension: 32.5 x 21mm/1.3-inch x 0.83-inch(Max.D*H)Base Dia.: 24mm/0.94-inch
