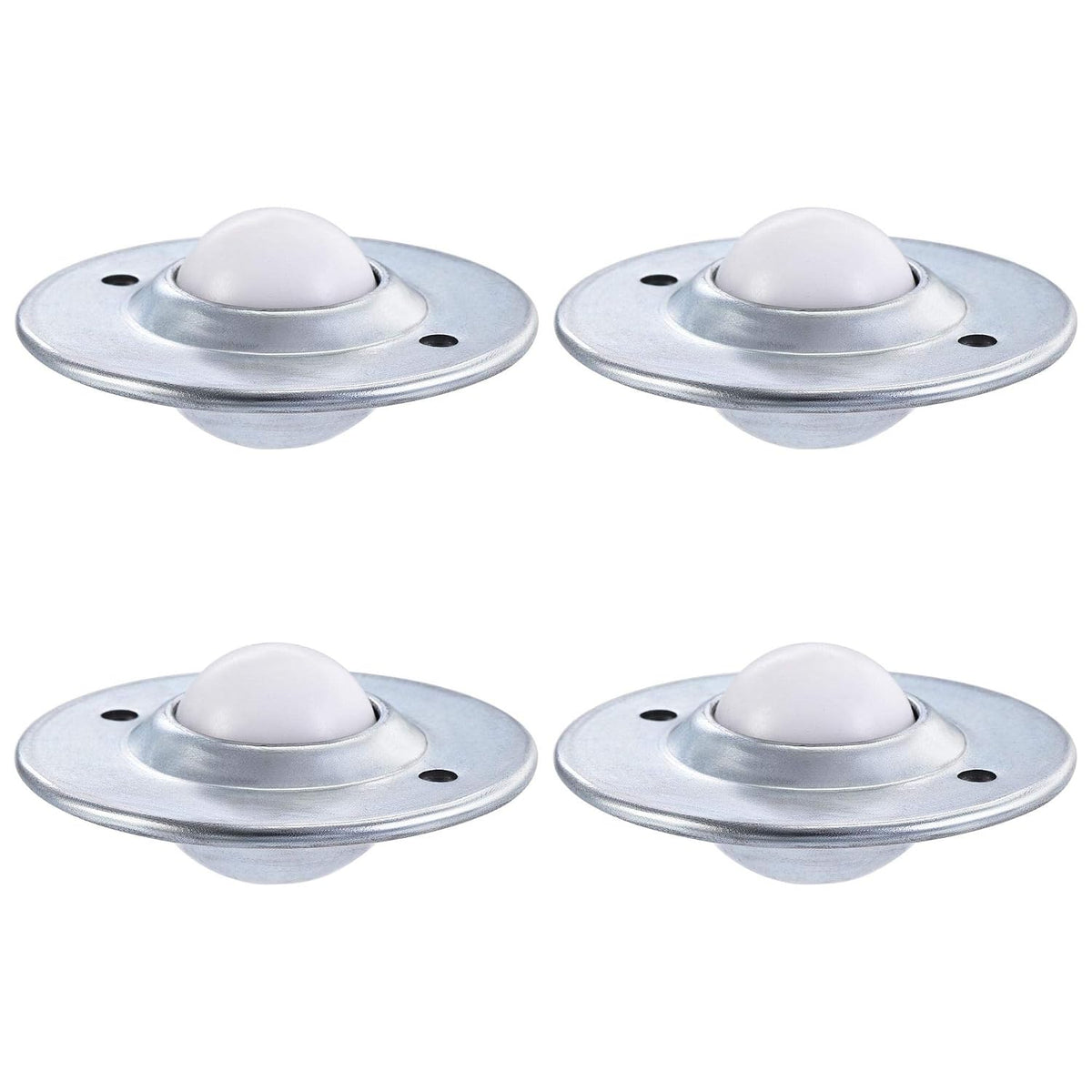

Ball Transfer Bearing Unit 22mm 55Lbs Nylon Flange-Mount Type for Transmission Pack of 4

Key Features

• [Size] - 22mm / 0.87" diameter ball bearing roller, 360 degree rotation
• [Load Capacity] - The bearing ball is made of nylon.Support up to 55Lbs/25kg each
• [Mounting Size] - Mounting Hole Dia. 4mm / 0.16 Inch; Overall Size 55x25mm / 2.17x0.98 Inch(DxH); When installing the ball transfer unit, the ball should be installed upward
• [Function] - According to different bearing requirements, the distribution density of the ball transfer units can be set arbitrarily, and its working orientation could be ball up / angle
• [Application] - It is widely used in transportation, transmission systems, feed systems, processing systems,packaging machinery auxiliary equipment, as well as object turning and confluence. Moreover, it works perfectly for drawer, so that you can roll it out with minimal pull.

Product Description

About this item [Size] - 22mm / 0.87" diameter ball bearing roller, 360 degree rotation [Load Capacity] - The bearing ball is made of nylon.Support up to 55Lbs/25kg each [Mounting Size] - Mounting Hole Dia.: 4mm / 0.16 Inch; Overall Size: 55x25mm / 2.17x0.98 Inch(DxH); When installing the ball transfer unit, the ball should be installed upward [Function] - According to different bearing requirements, the distribution density of the ball transfer units can be set arbitrarily, and its working orientation could be ball up / angle [Application] - It is widely used in transportation, transmission systems, feed systems, processing systems,packaging machinery auxiliary equipment, as well as object turning and confluence. Moreover, it works perfectly for drawer, so that you can roll it out with minimal pull. ›
