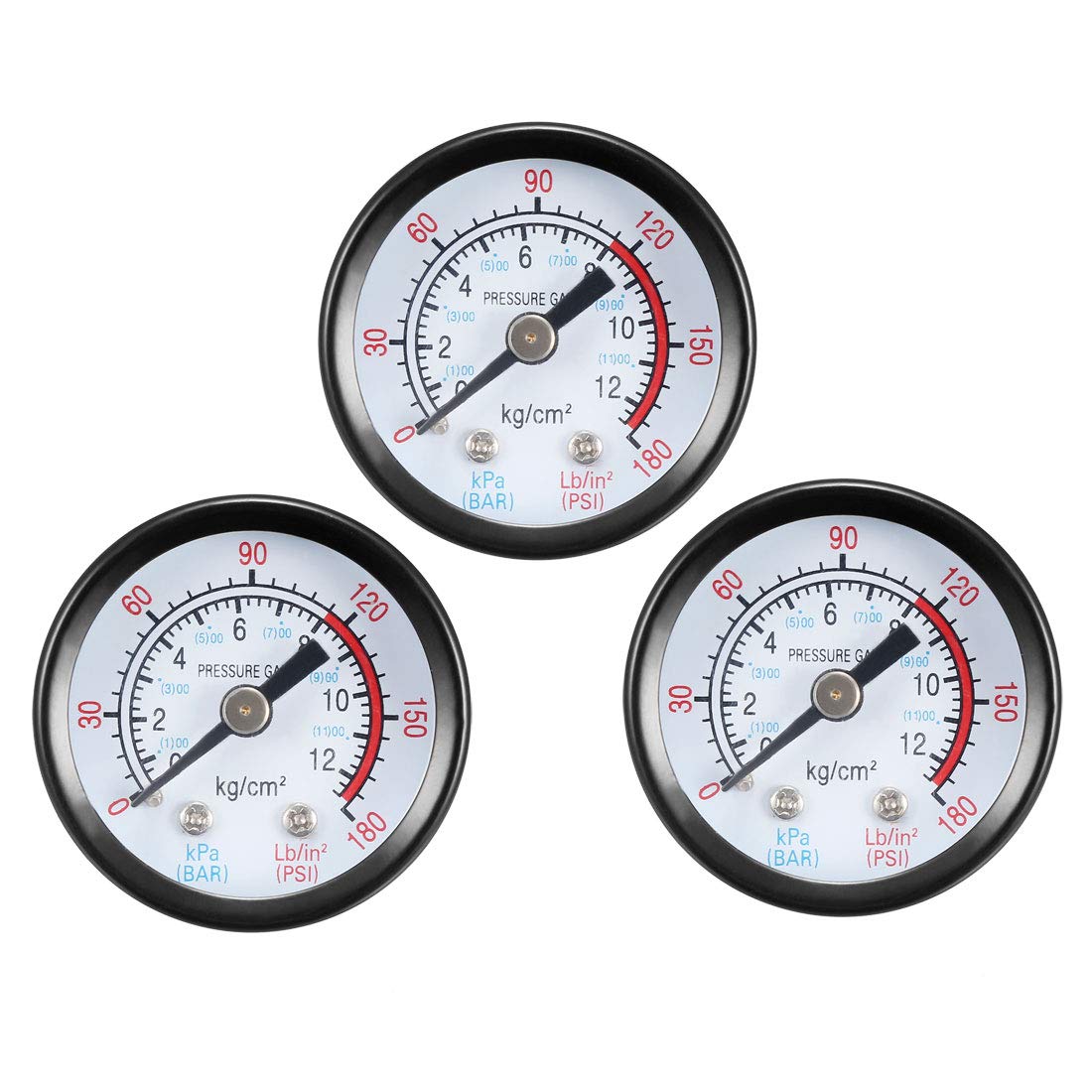

Back Mount Pressure Gauge, 0-180 psi/kPa Dual Scale, 1-25/64" Dial Display, 1/8" NPT Male for Air Compressor Water Oil Gas 3pcs

Key Features

• PRESSURE GAUGE - Pressure gauge with brass wetted parts has a circular dial enclosed in a steel case and a male connection, and measures pressure with a dual scale (psi/kPa).The brass wetted parts are for measuring non-corrosive liquid and gas pressure
• DUAL SCALE - The gauge measures pressure with a dual scale of psi/kPa
• 1-25/64" DIAL DISPLAY - The circular dial comes in 1.4" diameters. The dial has an aluminum black pointer.The lens is polycarbonate for high impact resistance
• CENTER BACK MOUNT - The male connection is mounted on the center back of the gauge and has 1/8" NPT
• WIDELY APPLICATION - General purpose gauge for plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks and air compressors.Suitable for non-clogging and non-corroding media

Product Description

Specification:Product Name : Pressure GaugeRange : 0-180psi，0-12bar，0-1200kpa , 0-12kg/cm2Dial Size : 1.4" DiaScale: Dual Scale - PSI / BarConnection: Aluminium Alloy Center Back Mount; 1/8" NPT MaleAccuracy : 2.5 LevelSize : 42 x 27mm/1.65 x 1.06inch(D*L) (Not included thread)Material : Electrophoresis iron , Aluminium Alloy , Plastic

Package Content

3 x Pressure Gauge

Description

1.Black electrophoresis iron case, Aluminium alloy dry internal parts2.Application : This product is commonly used in automobile tire inflator, and various types of pneumatic device, such as air compressor, pneumatic tools. You can use it to measure air pressure, water pressure, oil pressure and so on.

Note

Can not be used in (pure) oxygen, hydrogen, , can not be used in corrosive liquids, high-temperature liquids1.The instruments should be properly maintained when using or handling, not intense vibration, avoid instrument damage.2.Measuring the maximum working pressure range of not more than 70%.3.Measuring the maximum working pressure is not higher than 50% when working on objects of intense vibrations.4.The absolute error of precision table shoule be less 1/3 of the maximum permissible error of the checked table when use a precision table to verify.5.In order to ensure the accuracy of instruments, inspection and verification should be carried out regularly.

Specifications
