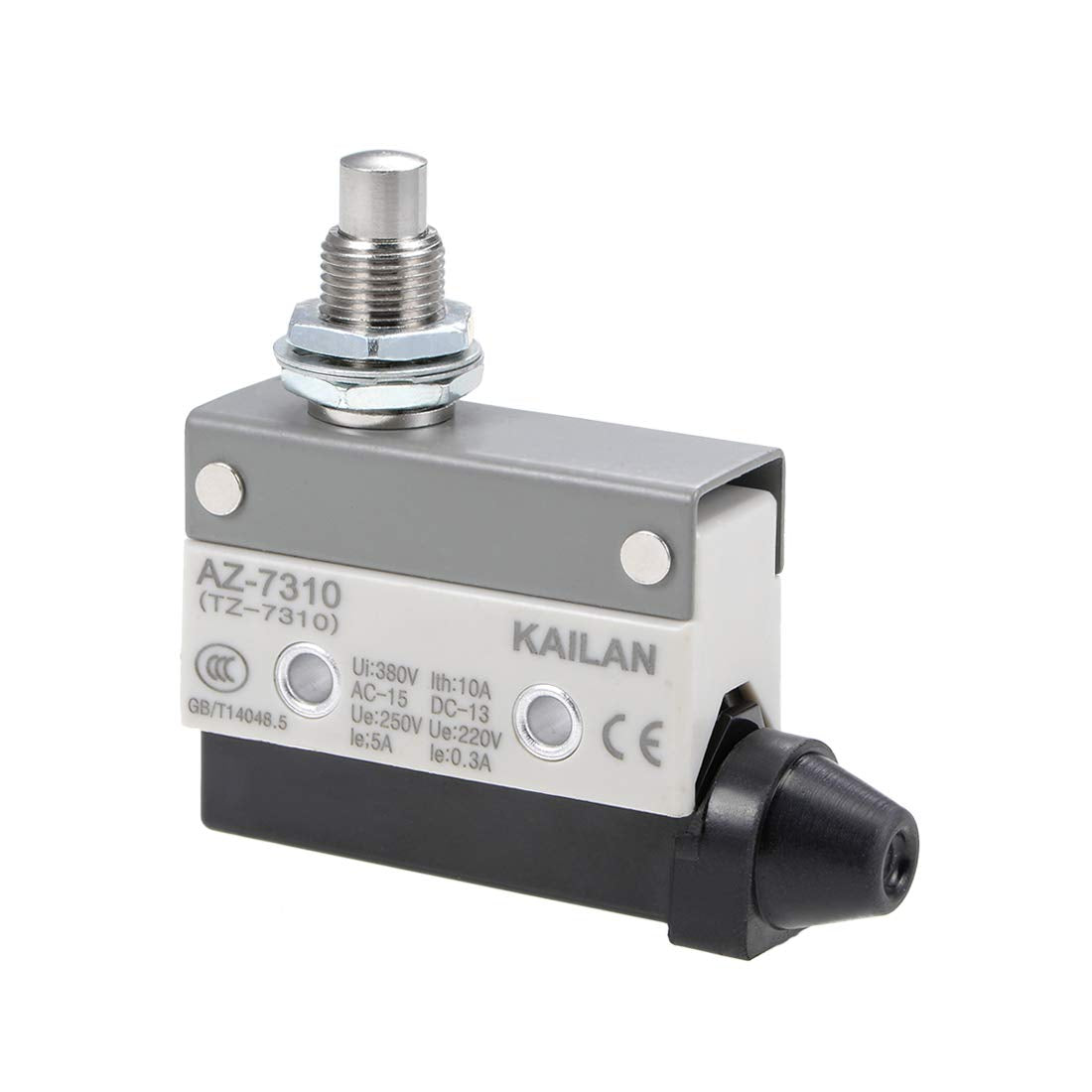

AZ-7310 Limit Switch, TZ-7310 Push Plunger Micro Momentary Switches Panel Mount 1NC+1NO for CNC Mill 3D Printer Door Switch

Key Features

• Model AZ-7310 (TZ-7310); Push Plunger Type
• built-in basic switch with good electrical conductivity
• Able to withstand some washdowns, shock and vibration
• Easy-to-wire, smooth operation and reliable
• Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.

Product Description

Specification:Product Name: Limit SwitchModel: AZ-7310 (TZ-7310)Actuator Type: Push Plunger TypeRated Voltage:AC-15: 250V 5ADC-13: 220V 0.3AContact Configuration: 1NC+1NOBody Size: 54 x 42 x 21mm (L*W*T)Mounting Hole Size: 4.2mm (D)Mounting Hole Distance: 25.4mm The plunger operated by hydraulic pressure or air cylinder power detects positions highly accurately.The plunger must be installed according to the movement of the dog so that an incorrect load will not be imposed on the plunger. Operating Characteristics:OF max: 600gRF min: 100gPT max: 2.0mmOT min: 6.0mmMD max: 0.8mmOP: 21.8+/-1.2mm

Description

-High precision and long life, suitable for applications demanding higher mechanical strength, dust proof, and drip-proof properties than those on basic switches.-Screw silver contact, outer shell covered with plastics.-Sealed with gasket diaphragm to provide high sealing property without use of any adhesive or pin.-This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.-Excessive dog angle, operating speed, or overtravel (OT) may damage the actuator, and check that OT has a sufficient margin.
