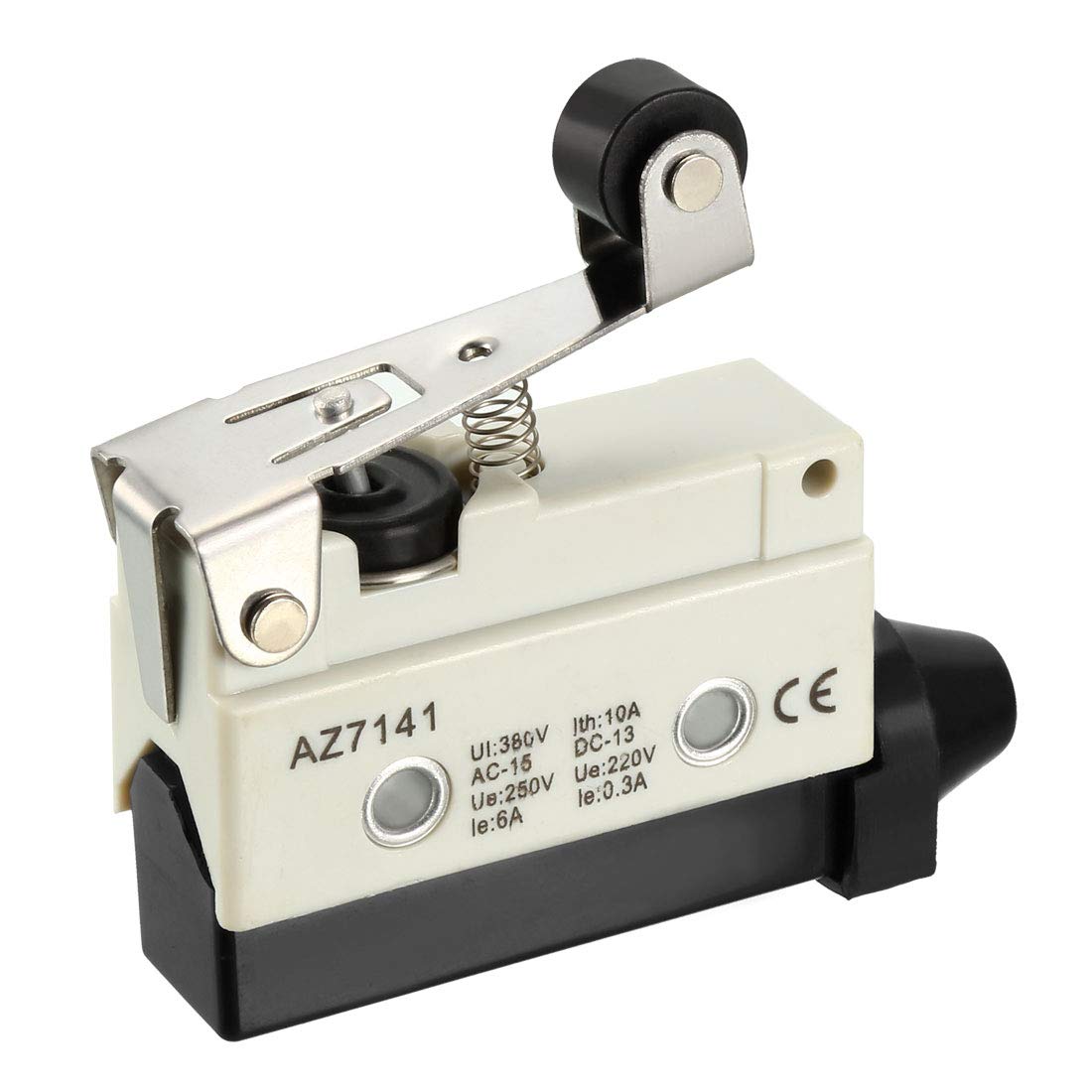

AZ-7141 SPDT 1NO+1NC Panel Mount Roller Plunger Type Micro Limit Switch
Key Features
- Rating Ui 380V Ith10A. And the contact type is SPDT NO+NC
- Applicable to AC DC control circuits.Reliable for years
- High precision design, use easily.Designed to control the movement of a mechanical part.
- IP 40 Protection Degree. Which means this switch is available to tools & small wires (>1mm)
- Widly used in appliance, elctronic equipment, automatic machine, communication equipment, car electric, apparatus and instrument, electro motion tool etc...
Product Description
Features
Excellent accessibility, stable performance, practical and convenientMulti-place use of gasket designThis Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and equipment.Also can be used in circuits, control circuit and auxiliary circuit for terminal limit protection. SpecificationProduct Name: Micro Switch;Model No.: AZ-7141;OF max.: 240gRF min.: 80gPT max.: 6.5mmOT min.: 2.0mmMD max.: 1.5mmOP: 40+/-1mmContact Form: SPDT NO+NCTermination Style: Screw Terminal;Terminal Number: 3Rating: Ui: 380V Ith:10A; AC-15 Ue: 250V Ie: 6A; DC-13 Ue: 220V Ie: 0.3A;Protection degree: IP62Overall Size: 66x59x21mm/2.6x2.32x0.83inch(L*W*H)Fixing Holes Dia.: 4mm/0.16inch;Net Weight : 50g; Package Content1 x Microswitch
Specifications
| Item Weight | 0.01 Ounces |
| Product Dimensions | 3.15 x 2.36 x 1.57 inches |
