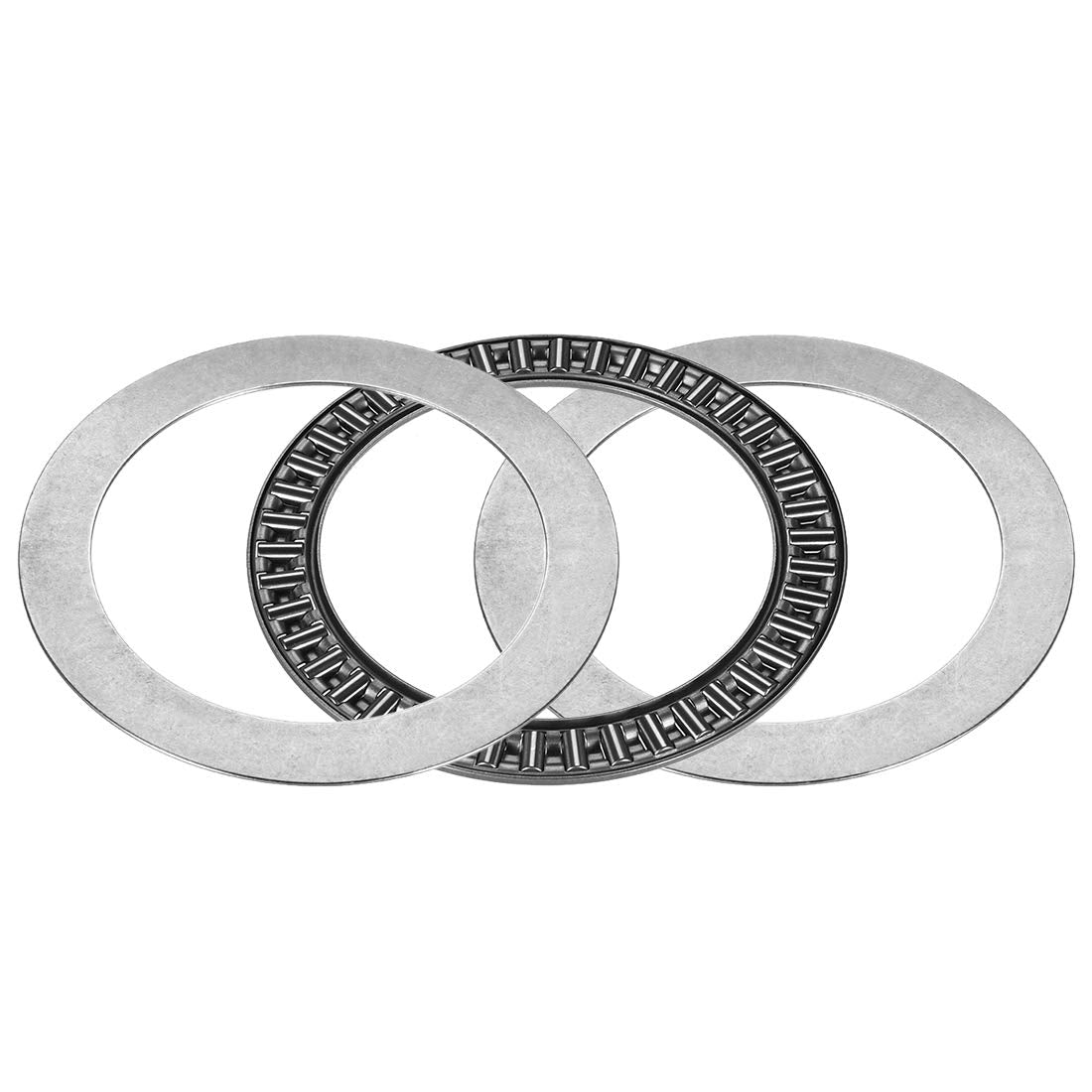

AXK75100 Needle Roller Thrust Bearings with 2 Washers, 75mm Inner Diameter, 100mm OD 4mm Width Chrome Steel

Key Features

• [MODEL] - Bearing Model AXK75100 (I.D.=75mm, O.D.=100mm, Bearings Thickness=4mm); Washer Model AS75100
• [MATERIAL] - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
• [FEATURES] - Needle Roller Thrust Bearings can accommodate loads in one direction only
• [WASHER] - Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
• [CAPABILITY] - 55kN Static Load Capacity, 265kN Dynamic Load Capacity, 3250RPM Maximum Rotational Speed

Product Description

Description

This Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.These bearings to accommodate heavy axial loads and peak loads due to the small diameter deviation of the rollers within one assembly.AXK Thrust Bearings can be combined with washers in the AS series in applications where adjacent components cannot serve as raceways.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, ect.Specification:Bearing Model: AXK75100Bearing Washer Model: AS75100Needle Roller Meterial: Chromium Steel (GCr15)Cage Meterial: ST13 SteelBearing Washer Meterial: 65Mn Spring SteelInner Diameter : 75mmOutside Diameter (D): 100mmBearing Rollers Diameter: 4mmTotal Thickness(with Washers): 6mmDynamic Load Capacity (Cr): 265kNStatic Load Capacity (Cor): 55kNMaximum Rotational Speed (Oil): 3250rpm

Package Content

1 x Bearing2 x Washers
