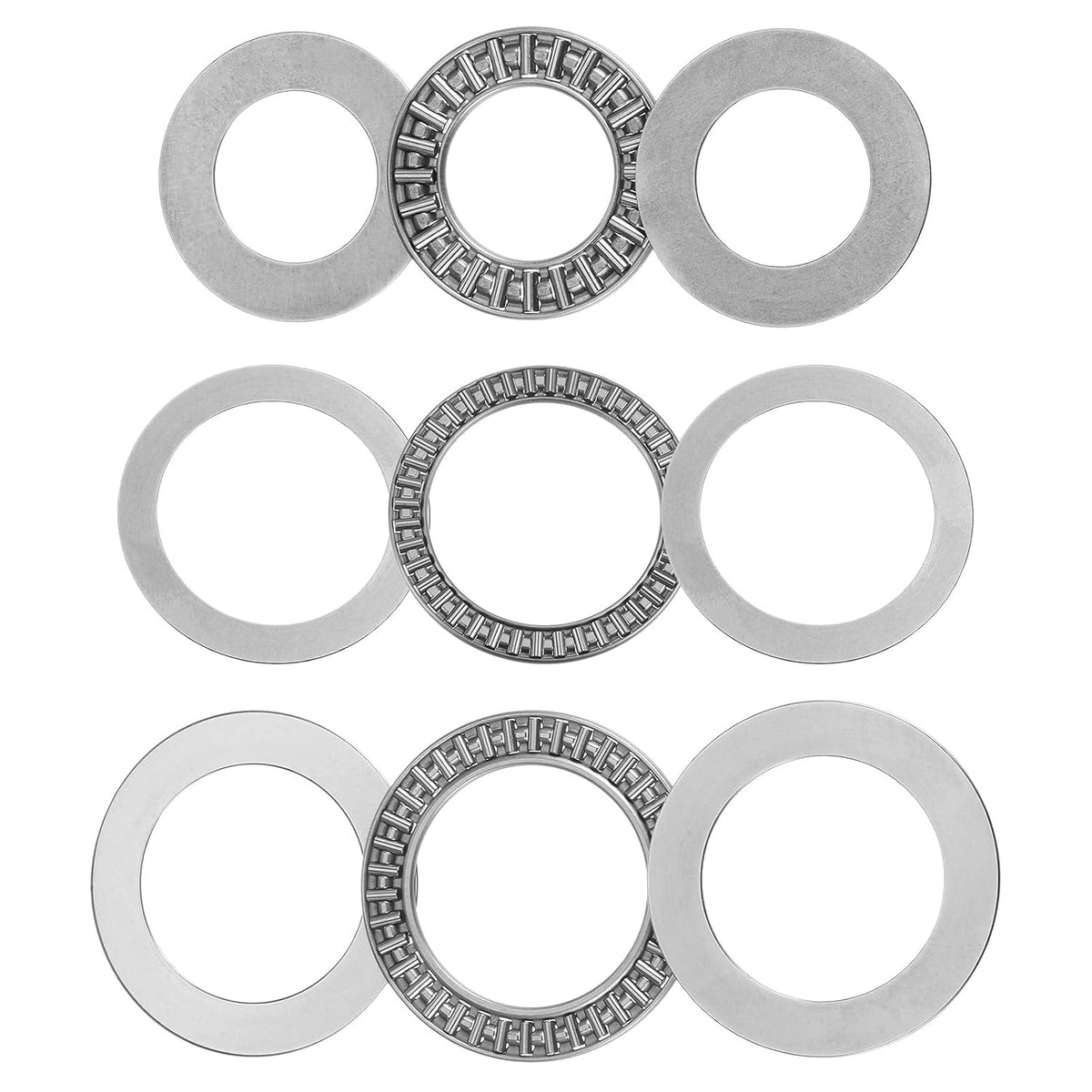

AXK2035 AXK2542 AXK3552 Thrust Needle Roller Bearings with Washers 20mm 25mm 35mm Bore 35mm 42mm 52mm OD 2mm Thickness 1 Set

Key Features

• Model - Bearing Model AXK2035 AXK2542 AXK3552 (I.D.=20,25,35mm, O.D.=35,42,52mm, Thickness=2mm); Washer Model AS2035 AS2542 AS3552
• Material - Chromium steel rollers for heat tolerance and durability under heavy loads; Steel cage guides and evenly spaced rollers for reduced friction, vibration, and noise
• Features - Needle Roller Thrust Bearings can accommodate axial loads in one direction only
• Washer- Combined with 2 washers for applications where adjacent machine components cannot serve as raceways
• Capability - Needle roller thrust bearing has a smaller cross-section than a standard thrust bearing for use in restricted spaces.

Product Description

Description

Needle Roller Thrust Bearings provide a high degree of stiffness within a minimum axial space. It has a smaller cross-section than a standard thrust bearing for use in restricted spaces.These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly.Made of hardened spring steel, both faces of the washers are polished and can be used as raceways.Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.Specification:Bearing Model: AXK2035 AXK2542 AXK3552Bearing Washer Model: AS2035 AS2542 AS3552Needle Roller Material: Chromium Steel (GCr15)Cage Material: ST13 SteelBearing Washer Material: 65Mn Spring SteelBore Diameter: 20,25,35mmOutside Diameter: 35,42,52mmBearing Thickness: 2mmWasher Thickness: 1mm (Approx.)Package Contents:3 x Bearings6 x Bearing Washers
